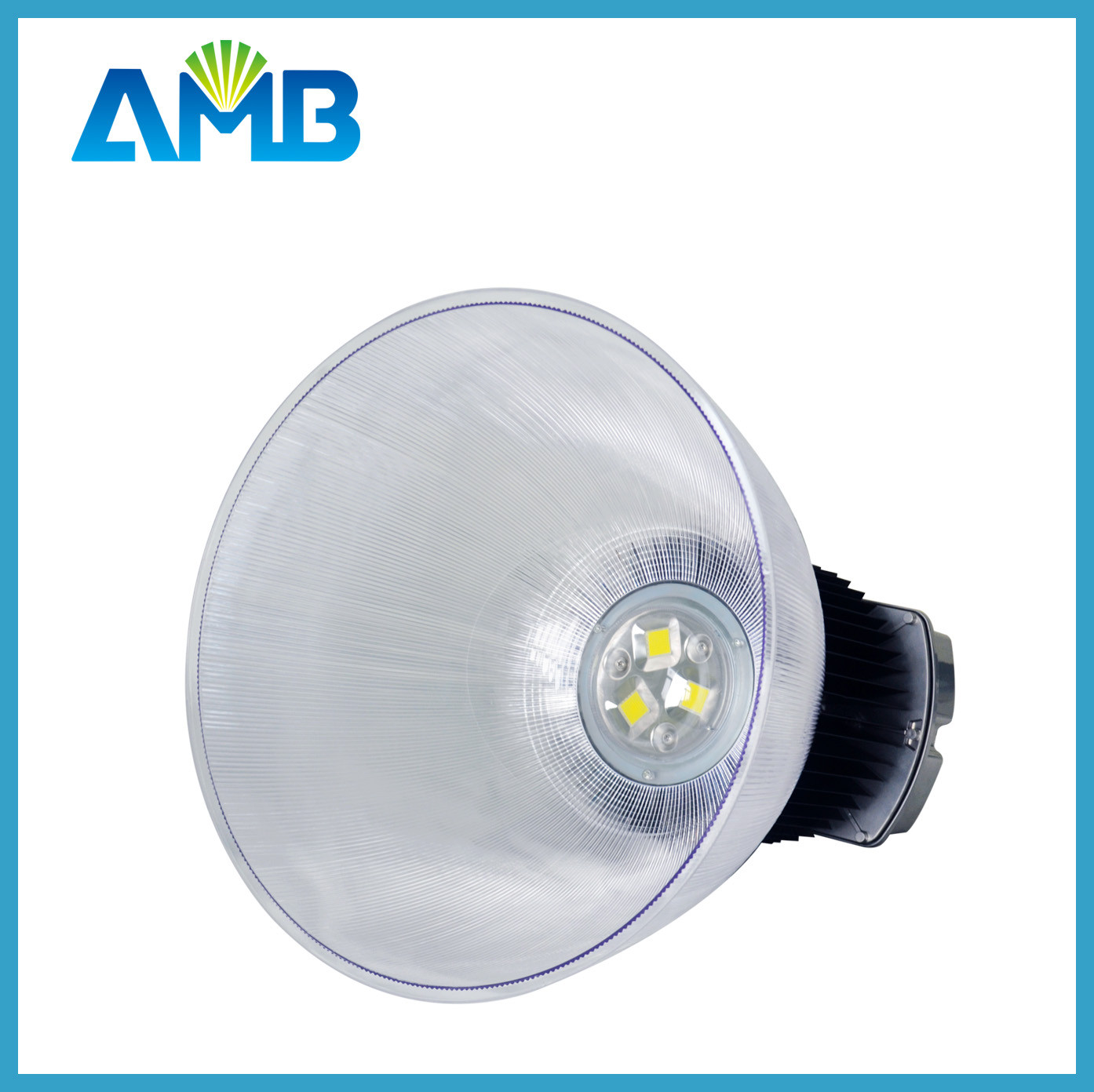

120lm/W copper +aluminum material , LED 150Watt HighBay Light , IP65 with 6000-6500K
Detailed advantages
Bridgelux 60mil COB chip,5years warranty time
Taiwan meanwell HLG model driver 5years warranty time
Copper cooling system& Japan patent heat sink technology
Smart function:
- Longer Lifetime of 50000~80000 hrs
- Safety enhancement with glass-material
- Saving electricity up to 75%
- Eco-friendly .No mercury contained
- Low temperature maintained by unique heat dissipation mechanism
- Anti-global warming by reduction of CO2 emission
- Warranty period is 5 years from the date of purchase(Om condition
- Wifi control +Dimmer function
that operating ambient temperature is 0°C~40°C (32°F~86°F) and use time is 12hours per day)Application:
It is applicable to large factory and workshop, office, storehouse, large superstore, supermarket, specialty stores, wholesale market and other places require high power lighting.
Widely used in the hotel, meeting room, offices , hospital , schools , factories , commercial lighting , shopping malls,
supermarkets, kitchen, diaplay, backlight and so on.
150W LED High Bay Specifications:
| Model No. |
AMB-3L-150w |
| Equivalent |
400W High Pressure Sodium Lamp |
| LED Light Source |
3 × 45W Bridgelux 60mil LED |
| LED Luminous Efficiency |
120 lm/w |
| Lamp Total Power |
150W |
| Power Efficiency |
> 95% |
| Lamp Rated Luminous Flux |
> 16, 500lm |
| Lamp Rated Luminous Efficiency |
> 120lm/W |
| Color Rendering Index(CRI) |
Ra> 75 |
| Color Temperature(Color Temperature) |
Cool white: 6000-6500K |
| Pure white: 5000-5500K |
| Warm white: 2700-3200K |
| Beam Angle |
60 /120 /135 /150 degrees |
| Dimension |
Φ480×360-Φ580×572
|
| Input Voltage |
AC 85~305V, or AC347, or AC385 |
| FrequencyRange |
50/60HZ |
| Power Factor(PF) |
> 0.95 |
| Total Harmonic Distortion(THD) |
< 15% |
| Storage Temperature |
-40--+80 |
| Working Environment |
-40--+50; 10%-95%RH |
| Junction Temperature(Tj) |
60 ± 10%(ta=25) |
| Light Body and Lampshade Material |
Aluminum Alloy and AL glass |
| Working Lifetime |
> 80, 000hrs |
| IP Rating |
IP65
|
Power range: AMB offer 50w smart led high bay to 300w powerful led high bay (50w ,80w ,100w .120w .150w .200w .250w .300w )
. Bridegelux BXDC6060 model LED . 60mil Chip Size.140lumen/w .
Meanwell HLG model driver AC85-AC305V with UL ,PSE.CE.ETL.CSA .SAA RoHS
. Perfect heat sink made COB LED operating temperature is 38 ℃- 52 ℃(ambient temperature is 32 ℃)
Copper pin fin heat sinks + Japan HDT technology+2.277 W/Kg ℃ unique heat sink design are suitable for extreme cooling needs and for scenarios that require rapid heat spreading , Absolute customization
allows for the maximization of heat sink surface area and eliminates bypass air .
|
No.
|
1
|
2
|
3
|
4
|
5
|
|
Model No.
|
AMB-3L-50w
|
AMB-3L-80w
|
AMB-3L-100w
|
AMB-3L-120w
|
AMB-3L-150w
|
|
Power Consumptionb
(W)
|
50
|
80
|
100
|
120
|
150
|
|
LED Initial Flux
(LM)
|
5200
|
8300
|
12000
|
12500
|
14600
|
|
Lamp Flux
(LM)
|
4800
|
7500
|
10400
|
11900
|
13500
|
|
Beam Angle
|
60°/120°/150°
|
60°/120°/150°
|
60°/120°/135°/150°
|
60°/120°/135°/150°
|
60°/120°/135°/150°
|
|
Input Voltage
(VAC)
|
90-305
|
90-305
|
90-305
|
90-305
|
90-305
|
|
Power Factor
(PF)
|
>0.97
|
>0.97
|
>0.97
|
>0.97
|
>0.97
|
|
Power Efficiency
|
96%
|
93%
|
104%
|
95.8%
|
92%
|
|
Color
|
Warm White
Cool White
|
Warm White
Cool White
|
Warm White
Cool White
|
Warm White
Cool White
|
Warm White
Cool White
|
|
Color Rendering Index
(CRI)
|
Ra75-85
|
Ra75-85
|
Ra75-85
|
Ra75-85
|
Ra75-85
|
|
Working Enviornment
|
Temperature: -40℃～50℃
Humidity:
10%～90%
|
Temperature: -40℃～50℃
Humidity:
10%～90%
|
Temperature: -40℃～50℃
Humidity:
10%～90%
|
Temperature: -40℃～50℃
Humidity:
10%～90%
|
Temperature:
-40℃～50℃
Humidity:
10%～90%
|
|
Material
|
Aluminum Copper
PC
|
Aluminum Copper
PC
|
Aluminum Copper
PC
|
Aluminum Copper
PC
|
Aluminum Copper
PC
|
|
IP Rating
|
IP65
|
IP65
|
IP65
|
IP65
|
IP65
|
|
Working Life
(Hours)
|
>50000
|
>50000
|
>50000
|
>50000
|
>50000
|
|
Product Dimension
(mm)
|
60°:
Φ390×280
120°:
Φ415×356
150°:
Φ580×280
|
60°:
Φ480×525
120°:
Φ580×415
150°:
Φ580×320
|
60°:
Φ480×525
120°:
Φ580×415
150°:
Φ580×320
|
60°:
Φ480×565
120°:
Φ580×455
150°:
Φ580×360
|
60°:
Φ480×565
120°:
Φ580×455
150°:
Φ580×360
|
|
Packing Dimension
(mm)
|
Lamp Body
3kg/unit
2pcs/carton
Reflector:
30pcs/carton
610×290×289
|
Lamp Body
5.5kg/unit
2pcs/carton
Reflector:
30pcs/carton
610×310×429
|
Lamp Body
5.9kg/unit
2pcs/carton
Reflector:
30pcs/carton
610×310×429
|
Lamp Body
7.2kg/unit
2pcs/carton
Reflector:
30pcs/carton
610×310×610
|
Lamp Body
7.5kg/unit
2pcs/carton
Reflector:
30pcs/carton
610×310×610
|
|
Net Weight/
Gross Weight (Kgs)
|
3kg/
3.5kg
|
5.5kg
6kg
|
5.9kg
6.5kg
|
7.2kg
8kg
|
7.5kg
8kg
|
