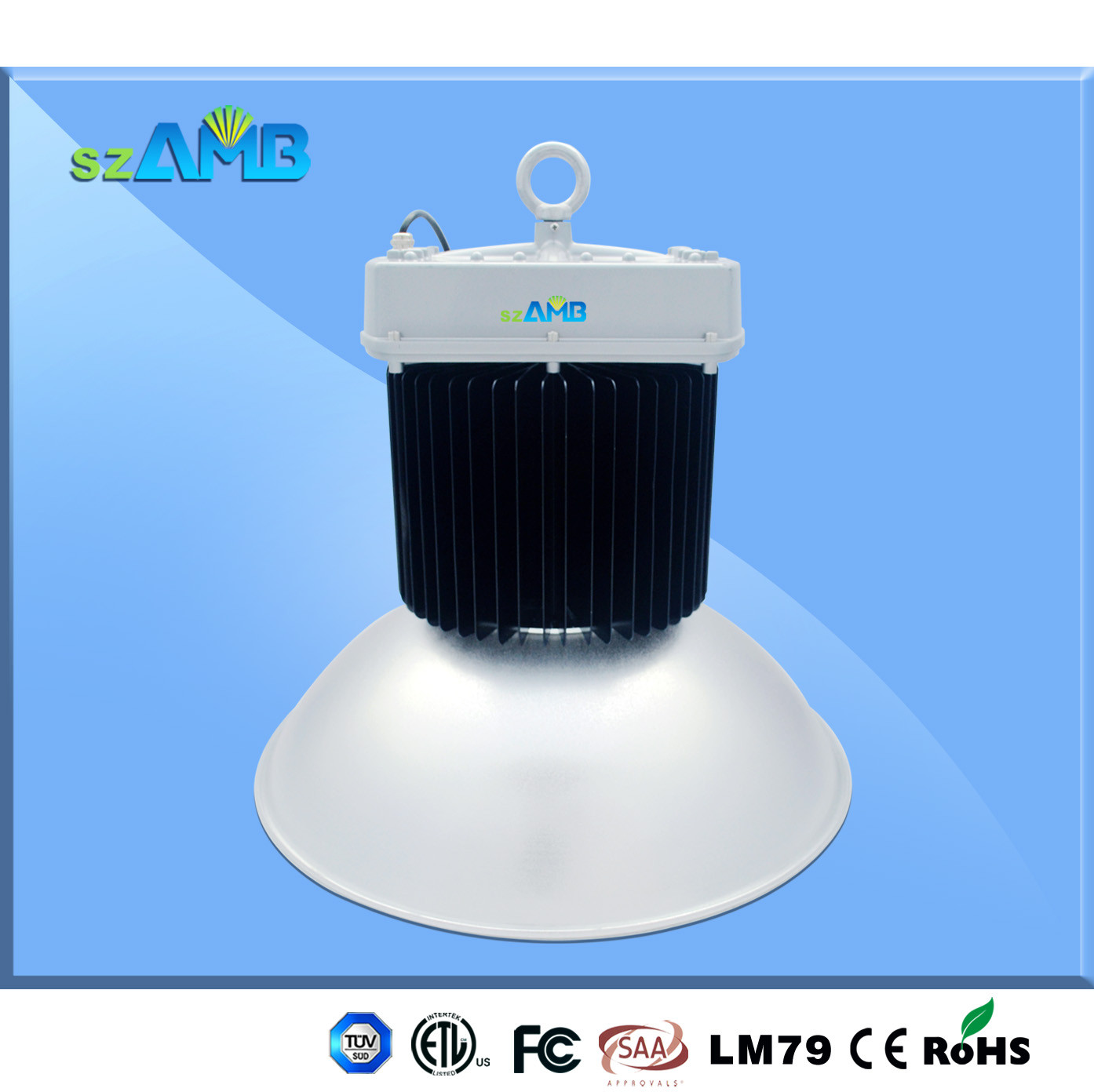

Industrial  Aluminum ,LED150w   highbay Light  2800-7000K , IP65 water proof  Meanwell driver  5 year guarantee

Item No.: AMB-3L-150W
Energy usage: 150 W
Spread: 60/130/150degrees
Chip supplier: Bridgelux(125-135lm/w)
Driver: Meanwell driver
Color temperature: 2800K-7000K
Imput votage: 90-305VAC
Luminous flux: 9, 000-10, 000LM
CRI value: Ra>75
Weight: 7.5Kg(does not include reflector)

Why AMB LED Priduct is the Top one ?

Why customer believe and rely heavily on AMB LED Lighting ?

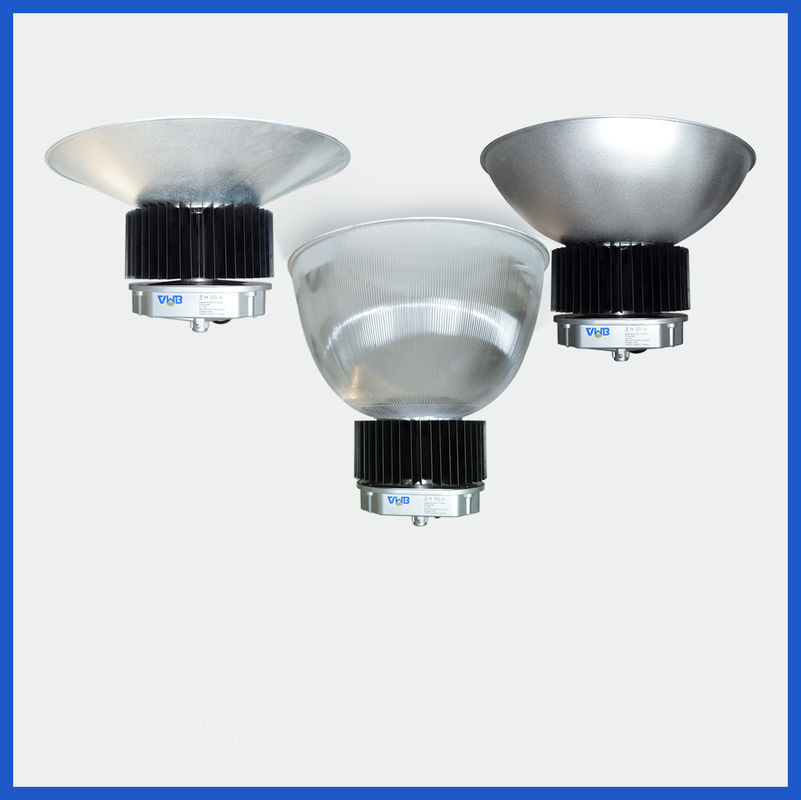

1. Aluminium/PC Reflector Beam Angle 60/130/150 degree available.
2. Material: Lamp sheel adopts excellent aluminum, anodizing and anticorrosion treatment, fancy performance, compact and beautiful structure.
3. LED Chip: high brightness single semiconductor chip Bridgelux 60mil as light source. (125-135lumens/w)
4. LED Driver: Built-in-cross-flow Meanwell power supply, to ensure the lamp's stability.
5. Huge Aluminum radiator: Cool down the temperature much more quickly.
6. Lifespan: If works 12 hours per day, it can be used 8-10 years, very low maintenance costs.
7. Green: Free-pollution, no lead, mercury and other pollution elements, no pollution to the enviroments, no RF interference.
9.  Convenient to install, High universality, widely application ranges.
10. Warranty: 5 years



Industrial LED light Application:

LED HighBay Light for industrial lighting widely used in factory, workshop, warehouse, supermarket, exhibition, stadium hall, parking, gas station, gymnasium etc where need indoor lighting

OUR ADVANTAGES

LED High Bays can dramatically reduce your electricity and maintenance costs

The experts at Every Watt Matters have heard our customer’s concerns about their existing Metal Halide, High Pressure Sodium, Mercury Vapor and T5 & T8 lighting.

1. High electricity and maintenance cost
2. Inadequate Light Levels that causes safety issues
3. Cannot hook lights to a motion sensor or bi-level controls
4. Significantly reduced operating life compared to what was advertised
5. Rapid lumen degradation
6. Very frequent re-tubing of fluorescent fixtures, when fixtures are hooked up to an occupancy sensor
7. Long start up time
8. Cannot dim

Why LED High Bays solve many of these issues

1. Bridgelux technology break through has increased lumens/watt and the cost/lumen has decreased dramatically.
2. We can now replace 400W, 800W and even 1000W HID lights with LED cost effectively
3. AMB LED High Bays have extremely long lifetimes as measured independently by the certified L70 testing method (over 133,000 hours); essentially eliminates bulb and ballast replacements for 15+ years of continuous 24/7 use
4. Instant on – Instant off; allows for the use of motion sensors and bi-level controls without affecting the life of the LED
5. Dimming capability and wifi controls allows for customized light levels
6. Extremely low lumen degradation means light levels are maintained for many more years than HID’s
7. High CRI (75+) means high quality of lumens
8. The availability of optics: 120° (standard), 60°, 135° and Diffused lenses allows us to install the lights in 80’ high ceiling environments that would be difficult to impossible for tube and induction solutions. The lights also perform well in low ceiling environments
9. Reduce energy consumption by more than 50%. With wifi controls and motion sensors, energy consumption can drop by as much as 80%

AMB LED High Bay Solution

1. BEST IN CLASS –Shenzhen Made with CE(EMC&LVD) .ETL approve(4007840) ,UL1598 ,CSA C22.2 NO.250.0-08 Design Lights Consortium (DLC)LED High Bays, PSE.SAA. RoHS
2. 6,808 - 33,743 lumens
3. Solutions to replace 175 - 1000W HID and T5 HO
4. 100-277V and 347-480V options
5. Mounting heights: 12-80 ft
6. Guaranteed lower cost and better light is a phone call away: 0086-13424300101

Every Watt Matters experts years of experience in replacing HID and fluorescent High Bays. Before we make a recommendation, we’ll measure or determine:
1. Current light levels
2. Existing mounting heights and spacing between lights
3. What are your biggest concerns
4. Your cost of electricity

NEWS:

During one year effort ,AMB engineer search one new design of  LED products as following:

with the features as below :

200W Features:

• ​LED Driver : Taiwan Meanwell HLG-240H-36B

• ​LED: Bridgelux BXCD4545445-H-z 165lumen/w

• ​Heat Sink: Pure copper-endothermic material

• ​Heat sink2: 6063 Aluminum -Heat dissipation

• ​Cooling paste: Japan 's Shin- Etsu X-23-7762​
