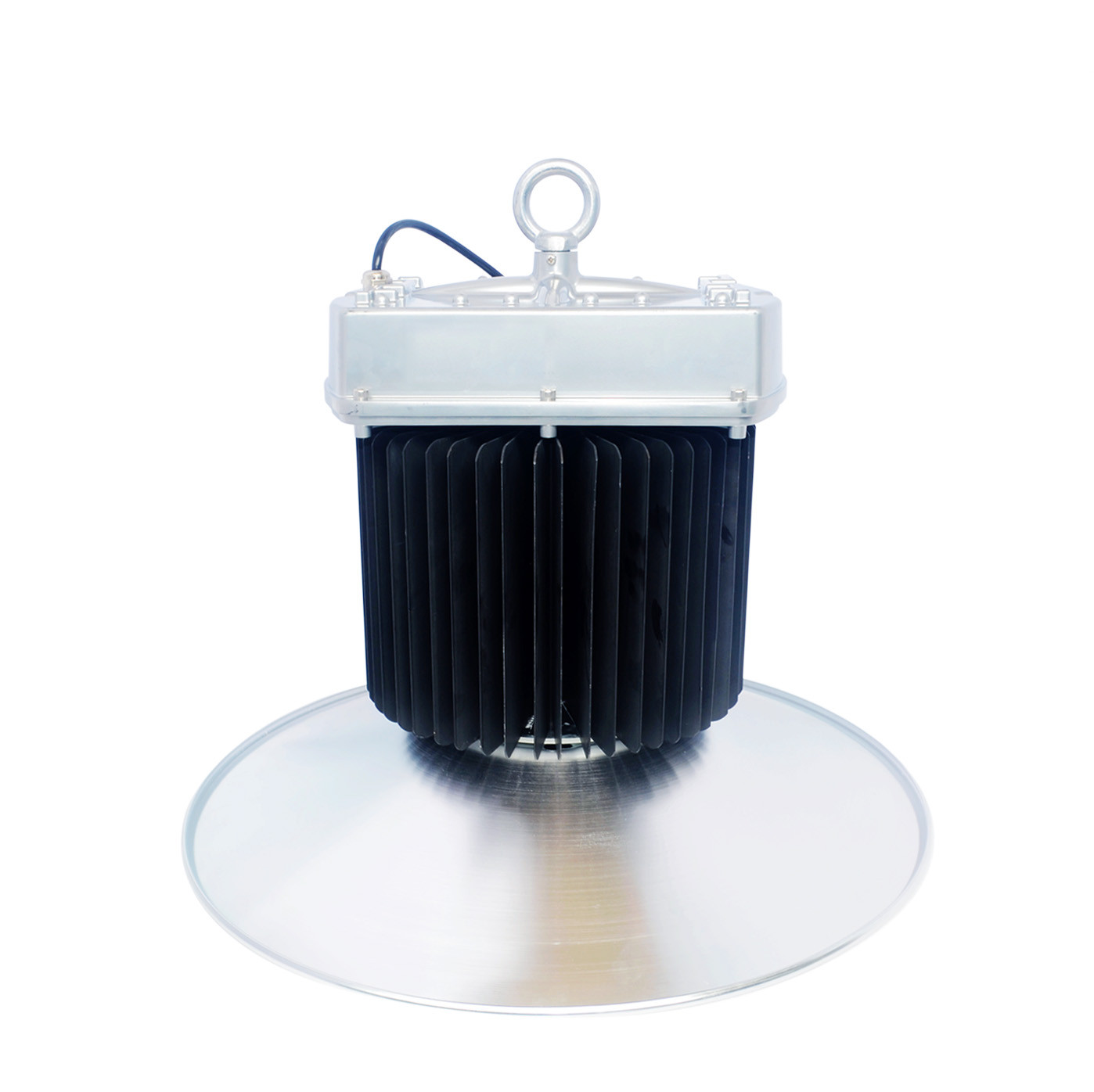

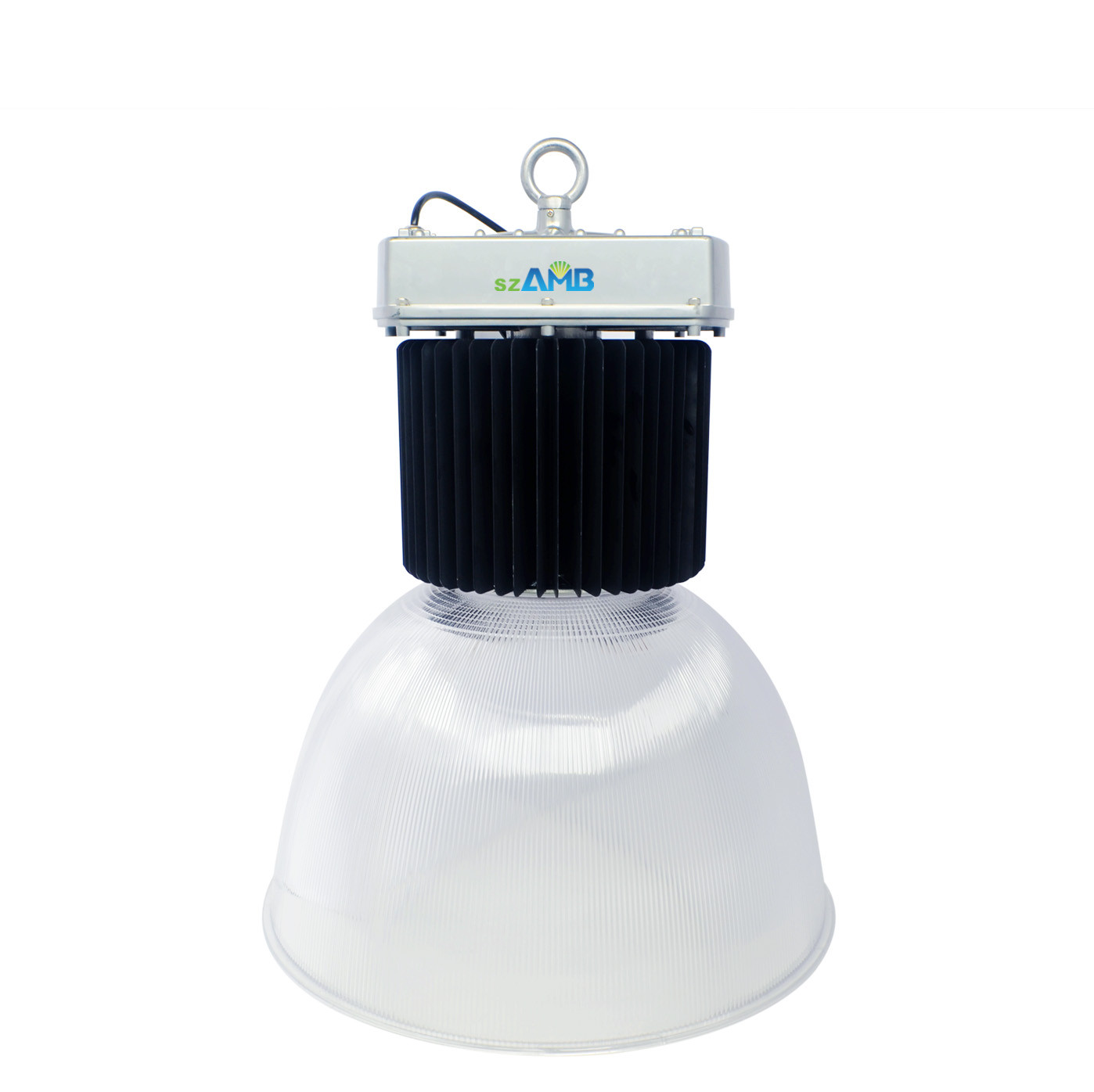

200W IP65 High Bay Lighting Led

200W IP65 Led Highbay Lighting Aluminium Alloy with Dimmable Driver

Production Introduction:

1. LED Highbay light

2. LED Highbay light features

3. Great Lighting source,

4. Taiwen Meanwell HLG - 240H - 36B dimmable driver,making longer life - span by lower

   its current

5. Environmentally friendly

6. Excellent opto-electronic performance

7. High efficiency cooling system

8. 5 years warranty time

.

.Competitive advantages:

1. USA Bridgelux chip(  BXCD4545445 - H2 -Z COB ) intergrated light source with 165 lumen/w

2. Good heat dissipation design

3. Water proof and Dustproof

4. Beam angle adjustale 15degree,45degree,60degree,120dedree

5. 5 years+ warranty time

6. TUV.ETL.CSA.LM79,DLC,SAA,CE,PSE,RoHs

7. High strength die-casting aluminum alloy cover with electrostatic spray treatment

8. Our ranges:10w led highbay , 100w led highbay, 150w ledhighbay, 200w led highbay, 250w highbay

300w led highbay

Features:

1. Color choices:black and silver

2. Aluminium alloy housing and pc housing

3. Adjustable Angle:60/120/150 degree

4. High shock& vibration resistant

5. Waterproof and dustproof

6. Constant current & High voltage isolate

7. Low power consumption

8. Export market:North America,  South America, Eastern Europe, South

   east Asia, Africa, Oceania, Mid East, Eastern Asia, western Europe.

Specifications:

Model	AMB - 3L - 200w
LED Type	USA Bridgelux BXCD4545445 - H2 -Z COB integrated light source with 165lumen/w
Driver	Taiwan Meanwell HLG - 240H -36B dimmable driver
Power	200w
Input Voltage	AC90-305v 50/60HZ
Flux	23000 - 24000lumen
Power factor	>0.97
50w LED high bay lighting efficiency	115 - 120lumen/w
Heat sink	Pure copper endothermic material
Heat sink2	6063 aluminum heat dissipation
Operating temperature	-20℃ - +70℃
Operating humidity	20% - 95%
Light source	High power LED
Beam angle	60degree, 120degree, 150degree
Warranty time	5 years for driver, 7 years for the led chip
Color Rendering Index	RA75 - RA90
Approves	TUV. ETL, CE, UL, ETL, LM79, FC
IP rate	IP65
Color temperature	3000K, 4000K, 5500K, 6500K
Packing	12kg/pcs, 1pcs/box, 2boxes/Carton. 26kg/Carton  700*355*455mm
