| Place of Origin: | Shenzhen |
|---|---|
| Brand Name: | AMB |
| Certification: | CE/ CSA/ SAA/ETL/ UL(Pending）. |
| Model Number: | AMB-3L-180W |
| Minimum Order Quantity: | 2pcs |
| Price: | Negotiate |
| Packaging Details: | 2pcs/carton |
| Delivery Time: | 3days for samples, 7~15days for large quantity |
| Payment Terms: | TT, Western Union, L/C |
| Supply Ability: | 5000pcs per month |
| High Light: | Dimmable LED high bay,high bay led lighting |
||
|---|---|---|---|
Specifications:

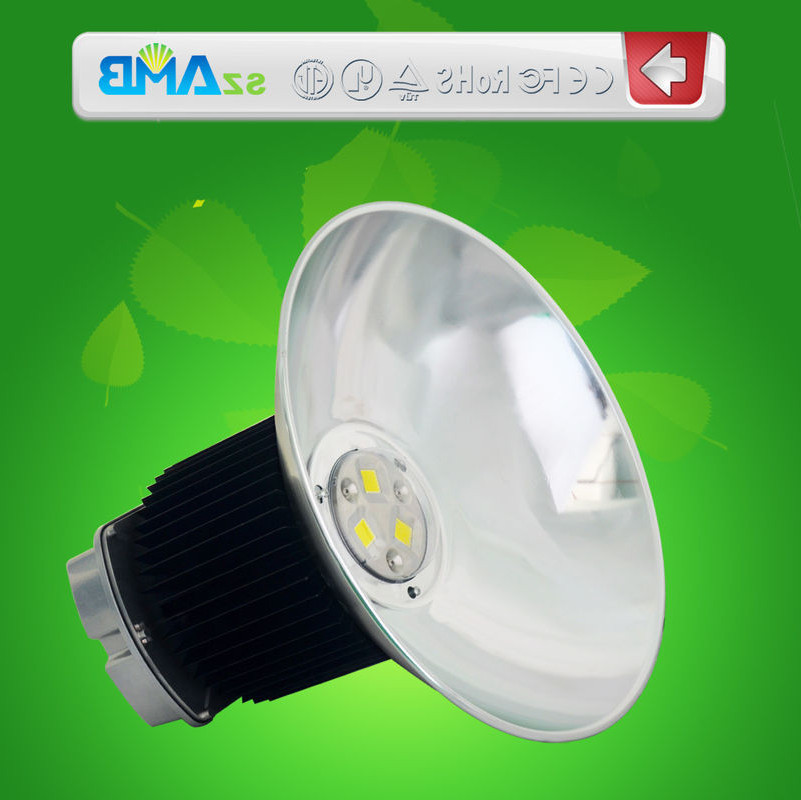

180W LED High Bay
| Model No. | AMB-3L-180w |
| Equivalent | 500W High Pressure Sodium Lamp |
| LED Light Source | 3 × 54W Bridgelux 60mil LED |
| LED Luminous Efficiency | 130 lm/w |
| Lamp Total Power | 180W |
| Power Efficiency | > 95% |
| Lamp Rated Luminous Flux | > 17500lm |
| Lamp Rated Luminous Efficiency | > 95lm/W |
| Color Rendering Index(CRI) | Ra> 75 |
| Color Temperature(CT) | Cool white: 6000-6500K |
| Pure white: 5000-5500K | |
| Warm white: 2700-3200K | |
| Beam Angle | 60 /120 /135 /150 degrees |
| Dimension |
Φ480×360-Φ580×572 |
| Input Voltage | AC 85~305V, or AC347, or AC385 |
| FrequencyRange | 50/60HZ |
| Power Factor(PF) | > 0.95 |
| Total Harmonic Distortion(THD) | < 15% |
| Storage Temperature | -40--+80 |
| Working Environment | -40--+50; 10%-95%RH |
| Junction Temperature(Tj) | 60 ± 10%(ta=25) |
| Light Body and Lampshade Material | Aluminum Alloy and AL glass |
| Working Lifetime | > 50, 000hrs |
| IP |
IP65 |
AMB, which only specialized in led high bay, led flood light and led tube manufacturer in Shenzhen, China. Especially led high bay and LED tube, which are the most hot sales led lights. AMB have cooperated with famous led lights component company, such as USA Bridgelux company, Everlight Company, Taiwan Meanwell ect. So that AMB can use the best components for our lights and provide the best quantity led lights for AMB esteemed clients.
Details advantages
Bridgelux 60mil COB chip,5years warranty time
Taiwan meanwell HLG model driver 5years warranty time
Copper cooling system& Japan patent heat sink technology
Smart function: Wifi control +Dimmer function
· Saving electricity up to 75% compared to High Bay
· Safety enhancement with glass-material
· Leading a low carbon life by reduction of CO2 emission
· Eco-friendly .No mercury contained
· Low temperature maintained by unique heat dissipation mechanism
· Longer Lifetime of 50000~80000 hrs
· Warranty period is 5 years (On condition
that operating ambient temperature is 0°C~40°C (32°F~86°F) and use time is 12hours per day)
Advantage:
2.Meanwell driver: which is top quality from TaiWan with UL, CE, TUV,PSE certificates.
3.Chip: Bridgelux 45mi C0B LED , it has 110-120lumens/w with 3years warranty time. 5years warranty time item is 130-145lumen/w with 60mil Bridgelux led chip.
4.Own cooling system: with our patent system, our LED's working temperature is only 50degrees when ambient temperature is 30-35degrees (for 150w).
5.Different beam angles are available: 60degrees, 120degrees, 135degrees and 150degrees, fitting ouclients' different tastes.
6.Traditional MHL Replacement: AMB 80W/100W led high bay replace 250w MHL, AMB 150W led high bay replace 400w NHL, AMB 250W/300W led high bay replace 1000W MHL.
|
No. |
1 |
2 |
3 |
4 |
5 |
|
Model No. |
AMB-3L-50w |
AMB-3L-80w |
AMB-3L-100w |
AMB-3L-120w |
AMB-3L-150w |
|
Power Consumptionb |
50 |
80 |
100 |
120 |
150 |
|
LED Initial Flux |
5200 |
8300 |
12000 |
12500 |
14600 |
|
Lamp Flux |
4800 |
7500 |
10400 |
11900 |
13500 |
|
Beam Angle |
60°/ |
60°/ 120°/150° |
60°/120°/ |
60°/120° |
60°/120°/ 135°/150° |
|
Input Voltage |
90-305 |
90-305 |
90-305 |
90-305 |
90-305 |
|
Power Factor |
>0.97 |
>0.97 |
>0.97 |
>0.97 |
>0.97 |
|
Power Efficiency |
96% |
93% |
104% |
95.8% |
92% |
|
Color |
Warm White |
Warm White |
Warm White |
Warm White |
Warm White |
|
Color Rendering Index |
Ra75-85 |
Ra75-85 |
Ra75-85 |
Ra75-85 |
Ra75-85 |
|
Working Enviornment |
Temperature: |
Temperature: |
Temperature: |
Temperature: |
Temperature: |
|
Material |
Aluminum PC |
Aluminum PC |
Aluminum PC |
Aluminum PC |
Aluminum PC |
|
IP Rating |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
|
Working Life |
>50000 |
>50000 |
>50000 |
>50000 |
>50000 |
|
Product Dimension |
60°: 150°: |
60°: 150°: |
60°: 150°: |
60°: 150°: |
60°: 150°: |
|
Packing Dimension |
Lamp Body 2pcs/carton |
Lamp Body 2pcs/carton |
Lamp Body 2pcs/carton |
Lamp Body 2pcs/carton |
Lamp Body 2pcs/carton |
|
Net Weight/ |
3kg/ 3.5kg |
5.5kg 6kg |
5.9kg 6.5kg |
7.2kg 8k |
7.5kg 8kg |
It is used in large factory and workshop, office, storehouse, large superstore, supermarket, specialty stores, wholesale market and other places require high power lighting.
