| Place of Origin: | Shenzhen |
|---|---|
| Brand Name: | AMB |
| Certification: | CE/ CSA/ SAA/ETL/ UL(Pending）. |
| Model Number: | AMB-3L-250W |
| Minimum Order Quantity: | 2pcs |
| Price: | Negotiate |
| Packaging Details: | 2pcs/carton |
| Delivery Time: | 3days for samples, 7~15days for large quantity |
| Payment Terms: | TT, Western Union, L/C |
| Supply Ability: | 5000pcs per month |
| High Light: | led high bay lamps,high bay led lighting |
||
|---|---|---|---|
Specifications:

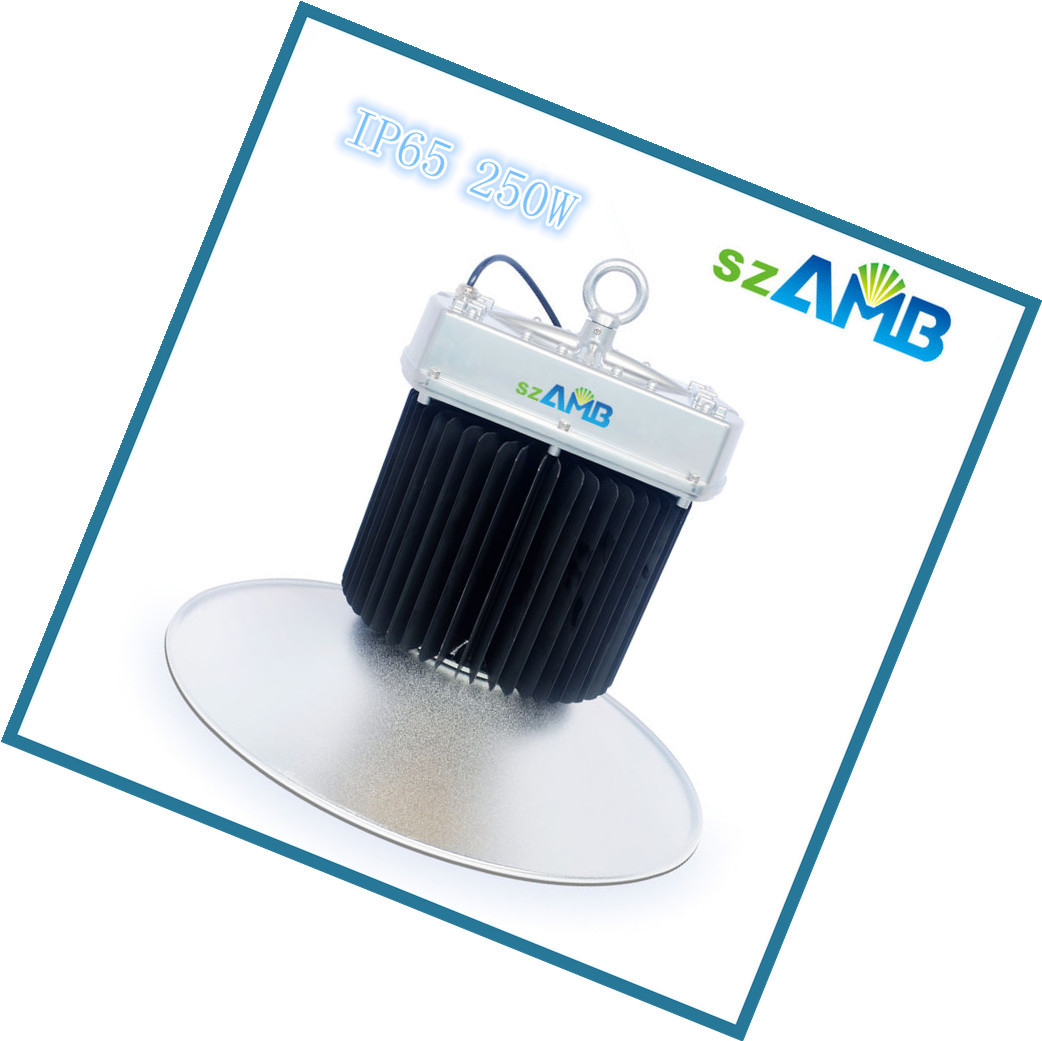

250W LED High Bay
| Model No. | AMB-3L-250w |
| Equivalent | 800W High Pressure Sodium Lamp |
| LED Light Source | 3 × 70W Bridgelux 60mil LED |
| LED Luminous Efficiency | 130 lm/w |
| Lamp Total Power | 250W |
| Power Efficiency | > 95% |
| Lamp Rated Luminous Flux | > 24500lm |
| Lamp Rated Luminous Efficiency | > 95lm/W |
| Color Rendering Index(CRI) | Ra> 75 |
| Color Temperature(Color Temperature) | Cool white: 6000-6500K |
| Pure white: 5000-5500K | |
| Warm white: 2700-3200K | |
| Beam Angle | 60 /120 /135 /150 degrees |
| Dimension |
Φ480×360-Φ580×572 |
| Input Voltage | AC 85~305V, or AC347, or AC385 |
| FrequencyRange | 50/60HZ |
| Power Factor(PF) | > 0.95 |
| Total Harmonic Distortion(THD) | < 15% |
| Storage Temperature | -40--+80 |
| Working Environment | -40--+50; 10%-95%RH |
| Junction Temperature(Tj) | 60 ± 10%(ta=25) |
| Light Body and Lampshade Material | Aluminum Alloy and AL glass |
| Working Lifetime | > 50, 000hrs |
| IP Rating |
IP65 |
IP65 250W AC85~305V 5years Warranty LED High Bay Fixtures With 60mil Bridgelux Chip and HLG Model Meanwell Driver
2.Meanwell driver: top quality from TaiWan with UL, CE, TUV,PSE certificates.
3.Chip: Bridgelux 45mi C0B LED , it has 110-120lumens/w with 3years warranty time. 5years warranty time item is 130-145lumen/w with 60mil Bridgelux led chip.
4.Own cooling system: with our patent system, our LED's working temperature is only 50degrees when ambient temperature is 30-35degrees (for 150w).
5.Different beam angles: 60degrees, 120degrees, 135degrees and 150degrees are available, so it fits our clients different tastes.
6.Traditional MHL Replacement: AMB 80W/100W led high bay replace 250w MHL, AMB 150W led high bay replace 400w NHL, AMB 250W/300W led high bay replace 1000W MHL.
|
|
1 |
2 |
3 |
4 |
5 |
|
Model No. |
AMB-3L-50w |
AMB-3L-80w |
AMB-3L-100w |
AMB-3L-120w |
AMB-3L-150w |
|
Power Consumptionb |
50 |
80 |
100 |
120 |
150 |
|
LED Initial Flux |
5200 |
8300 |
12000 |
12500 |
14600 |
|
Lamp Flux |
4800 |
7500 |
10400 |
11900 |
13500 |
|
Beam Angle |
60°/ |
60°/ 120°/150° |
60°/120°/ |
60°/120° |
60°/120°/ 135°/150° |
|
Input Voltage |
90-305 |
90-305 |
90-305 |
90-305 |
90-305 |
|
Power Factor |
>0.97 |
>0.97 |
>0.97 |
>0.97 |
>0.97 |
|
Power Efficiency |
96% |
93% |
104% |
95.8% |
92% |
|
Color |
Warm White |
Warm White |
Warm White |
Warm White |
Warm White |
|
Color Rendering Index |
Ra75-85 |
Ra75-85 |
Ra75-85 |
Ra75-85 |
Ra75-85 |
|
Working Enviornment |
Temperature: |
Temperature: |
Temperature: |
Temperature: |
Temperature: |
|
Material |
Aluminum PC |
Aluminum PC |
Aluminum PC |
Aluminum PC |
Aluminum PC |
|
IP Rating |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
|
Working Life |
>50000 |
>50000 |
>50000 |
>50000 |
>50000 |
|
Product Dimension |
60°: 150°: |
60°: 150°: |
60°: 150°: |
60°: 150°: |
60°: 150°: |
|
Packing Dimension |
Lamp Body 2pcs/carton |
Lamp Body 2pcs/carton |
Lamp Body 2pcs/carton |
Lamp Body 2pcs/carton |
Lamp Body 2pcs/carton |
|
Net Weight/ |
3kg/ 3.5kg |
5.5kg 6kg |
5.9kg 6.5kg |
7.2kg 8k |
7.5kg 8kg |
It is applicable to large factory and workshop, office, storehouse, large superstore, supermarket, exclusive shops, wholesale market and other places require high power lighting.
