| Place of Origin: | Shenzhen |
|---|---|
| Brand Name: | AMB |
| Certification: | CE/ETL/ SAA ect. |
| Model Number: | AMB-3L-50W |
| Minimum Order Quantity: | 2pcs |
| Price: | Negotiate |
| Packaging Details: | 2pcs/carton |
| Delivery Time: | 3days for samples, 7~15days for large quantity |
| Payment Terms: | TT, Western Union, L/C |
| Supply Ability: | 5000pcs per month |
| High Light: | high bay led lights,led high bay lamps |
||
|---|---|---|---|

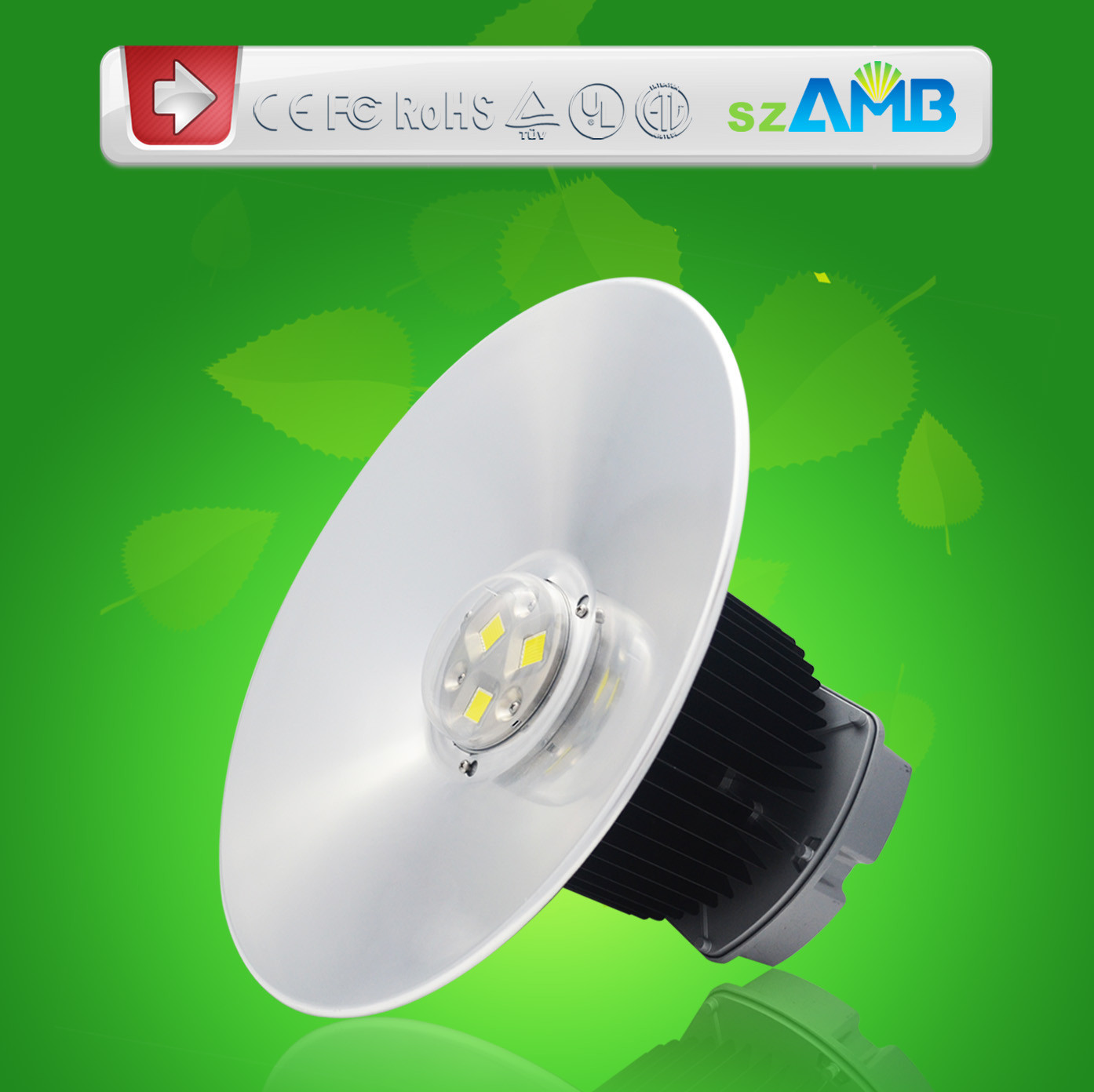

50W 4900lm Bridgelux LED HighBay Lighting , Meanwell Driver ,UL SAA
Quick Description :
1. 5 years warranty
2. IP65
3. Meanwell driver , Bridgelux Chip
4. CRI 80
5. Light efficiency :100 - 110lumen / w
Details advantages :
Taiwan meanwell HLG model driver 5years warranty time
Bridgelux 60mil COB chip,5years warranty time
Copper cooling system& Japan patent heat sink technology
Smart function: Wifi net led control function will be ok before Sep .2012
· Saving electricity up to 75% compared to High Bay
· Eco-friendly .No mercury contained
· Safety enhancement with glass-material
· Anti-global warming by reduction of CO2 emission
· Longer Lifetime of 50000~80000 hrs
· Low temperature maintained by unique heat dissipation mechanism
· Warranty period is 5years from the date of purchase(Om condition
that operating ambient temperature is 0°C~40°C (32°F~86°F) and use time is 12hours per day)
Why choose our AMB led high bay light?
1. High brightness led high bay, original 45mil Bridgelux chip, which is 3 years warranty time.
2. High efficency and power factor driver, Taiwan Meanwell HLG driver.
3. Long life-span, more than 5000hrs, our led high bay working temperature is only 48degree(tested in 34degree workshop).
4. Patent copper cooling system, this ideal heat dissipation design solve the heat problem 100%.
50W LED High Bay Specifications:
| Model No. | AMB-3L-50w |
| Equivalent | 150W Metal Halide Lamp |
| LED Light Source | 3 × 15W Bridgelux 45mil LED |
| LED Luminous Efficiency | 115 lm/w |
| Lamp Total Power | 50W |
| Power Efficiency | > 95% |
| Lamp Rated Luminous Flux | > 25, 000lm |
| Lamp Rated Luminous Efficiency | > 100lm/W |
| Color Rendering Index(CRI) | Ra> 75 |
| Color Temperature(Color Temperature) | Cool white: 6000-6500K |
| Pure white: 5000-5500K | |
| Warm white: 2700-3200K | |
| Beam Angle | 60 degrees or 120 degrees or 150 degrees |
| Light Distribution/Beam Pattern | Round Beam |
| Input Voltage | AC 95-265V; DC 30-36V |
| FrequencyRange | 50/60HZ |
| Power Factor(PF) | > 0.95 |
| Total Harmonic Distortion(THD) | < 15% |
| Storage Temperature | -40--+80 |
| Working Environment | -40--+50; 10%-95%RH |
| Junction Temperature(Tj) | 60 ± 10%(ta=25) |
| Light Body and Lampshade Material | Aluminum Alloy and AL glass |
| Working Lifetime | > 50, 000hrs |
| IP Rating |
IP65 |
Application:
It is applicable to large factory and workshop, office, storehouse, large superstore, supermarket, specialty stores, wholesale market and other places require high power lighting.
Comparison of Lifetime:
|
Pictures
|
Products name |
Life-span compare |
Cost compare |
|
|
HID high bay |
6000hours |
4 pieces new HID high bay cost, replacement fee |
|
|
AMB LED high bay |
50000-80000hrs |
3years warranty time No replacement fee |
