| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | AMB |
| Certification: | FC，CE(EMC ,LVD)，TUV，RoHS，UL |
| Model Number: | AMB-3L-100w |
| Minimum Order Quantity: | 5pcs |
| Price: | negotiation |
| Packaging Details: | 2boxes/Carton , 12kg/Carton |
| Delivery Time: | 3-15days |
| Payment Terms: | L/C T/T, Western Union |
| Supply Ability: | 5000pcs/month |
| LED Type: | USA Bridgelux BXCD4545445-H2-Z COB | Flux: | 11500-12000lumen |
|---|---|---|---|
| Driver: | Taiwan Meawell HLG-150H-36B Dimmable Driver | Heat Sink: | Pure Copper Endothermic Material |
| Heat Sink2: | 6063 Aluminum Heat Dissipation | Cooling Paste: | Japan' Shin-Etsu X-23-7762 |
| IP Rate: | IP65 | Color Temperature: | 3000k,4000k,5500k,6500k |
| CRI: | RA75-RA90 | Adjustable Angle: | 60/120/150degree |
| Approves: | CE/UL/FC/RoHS/TUV/ETL/LM79 | Addition Approve: | D-Mark Approve |
| Warranty Time: | 5 Years | ||
| High Light: | outdoor led flood light bulbs,high power led floodlight |
||

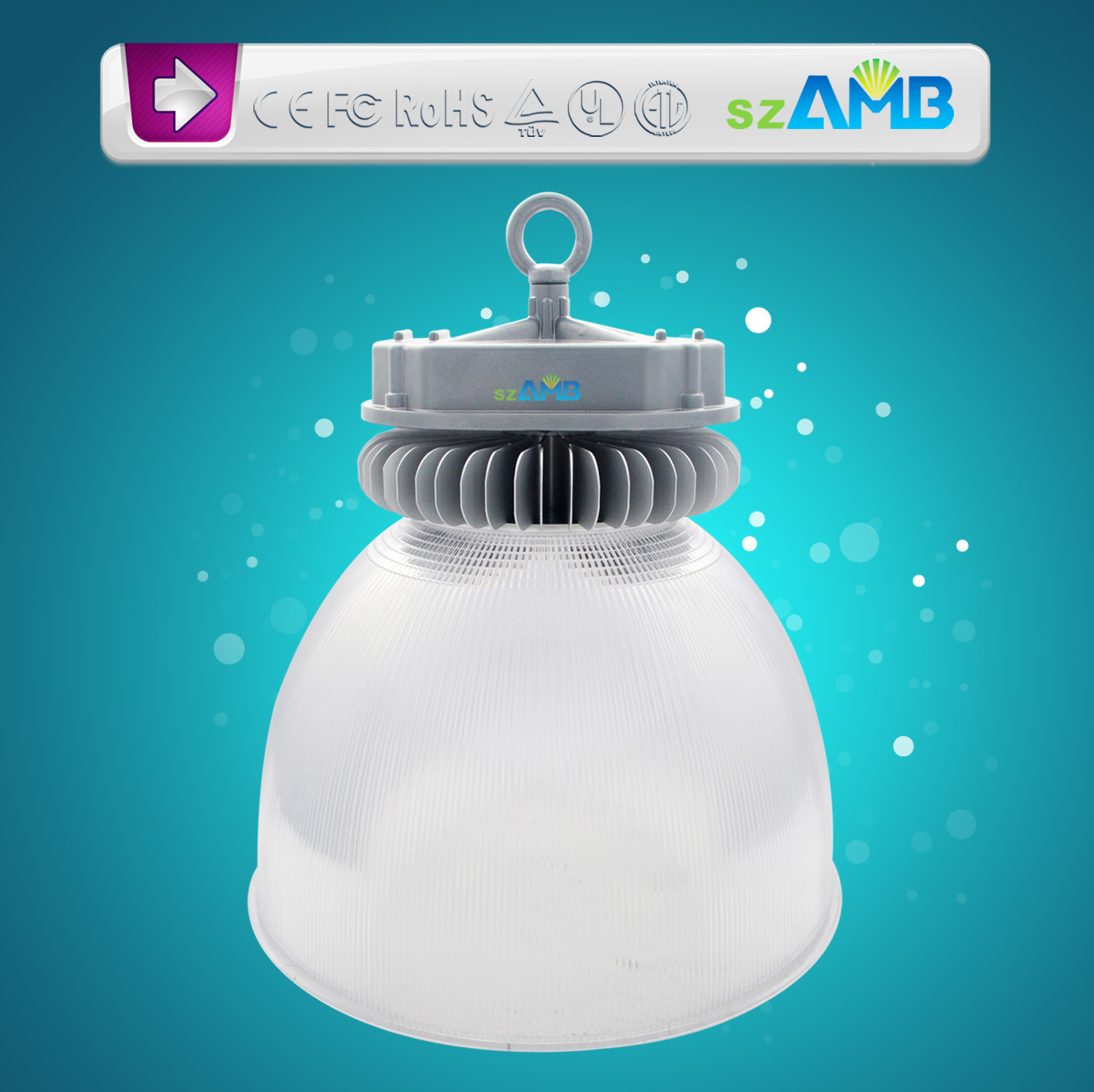

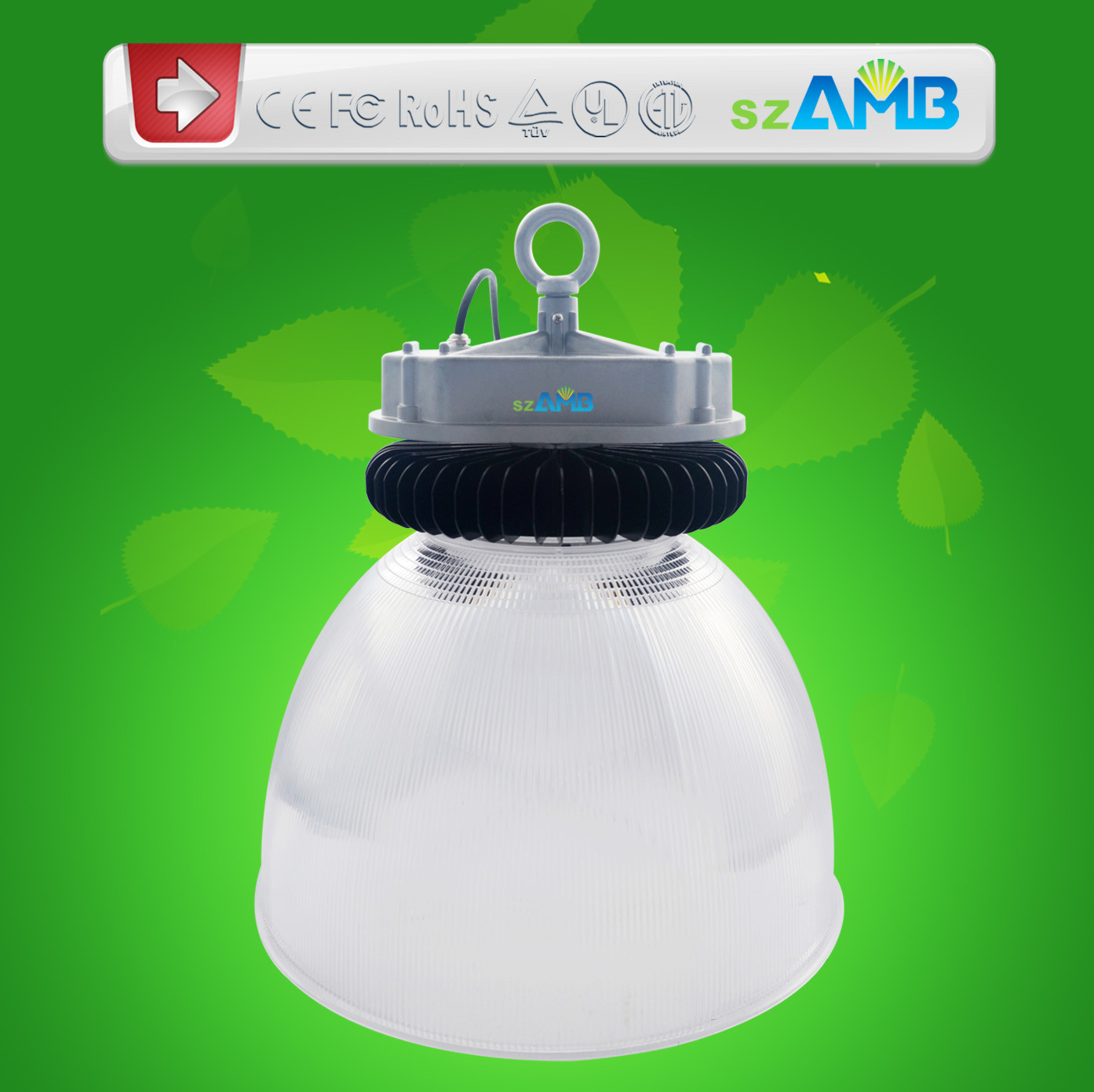

100 Watt CE certificated High Bay Lighting Led IP65 With Dimmable Driver
Product introduction
SZAMB 5 years warranty time LED high bay are Environment - friendly, no air pollution, no lead - free, no
mercury.Apply for unique surface treatment technology, well -decorated, novel style, easy to install,lower
maintenance cost and wide in warehouse,workshop,gas station,supermarkets exhibition halls,gymnasiums
and some other places where need industrial lighting.
AMB led high bay advantages:
| Model No. | AMB-3L-100w |
| LED Type: | USA Bridgelux BXCD4545445 - H2 -zCOB integrated light source with 165lumen/w |
| Flux | 11500-12000lumen/w |
| 50w LED high bay lighting efficieny | 115 - 120lumen/w |
| Lamp Total Power | 100W |
| Power efficiency | > 90% |
| IP rate | Ip65 |
| Color temperature | 3000k.4000k.5500k.6500k |
| Color Rendering Index(CRI) | RA75 - RA90 |
| Adjustable Angle | 60 degrees or 120 degrees or 150 degrees |
| Approves | TUV. ETL. DLC. LM98. SAA. PSE. CE. RoHS |
| Input Voltage | AC90v - 240v or AC90 - 305v or AC347v 50/60HZ |
| FrequencyRange | 50/60HZ |
| Warranty time | 5 years+ |
| Net Weight | 5.56kg/PCS |
| Gross Weight | 12.6kg/PCS |
| Operating Environment | Temperature:-20℃ - +70℃ Humidity:20% - 95% |
| Packing | 5.5kg/PCS. 1PCS/box. 2boxes/Carton. 12kg/Carton |
| Carton Size(mm) |
1PCS/ inner Box: 295mm*295mm 2inner Box/Carton: 615mm*315mm*315mm |
Application:
It is applicable to large factory and workshop, office, storehouse, large superstore, supermarket, specialty store, wholesale market and other places require high power lighting.
