| Place of Origin: | Shenzhen |
|---|---|
| Brand Name: | AMB |
| Certification: | CE/ CSA/ SAA/ UL ect. |
| Model Number: | AMB-1L-300W |
| Minimum Order Quantity: | 2pcs |
| Price: | Negotiate |
| Packaging Details: | 2pcs/carton |
| Delivery Time: | 3days for samples, 7~15days for large quantity |
| Payment Terms: | TT, Western Union, L/C |
| Supply Ability: | 5000pcs per month |
| High Light: | low energy high bay lighting,led high bay lamps |
||
|---|---|---|---|

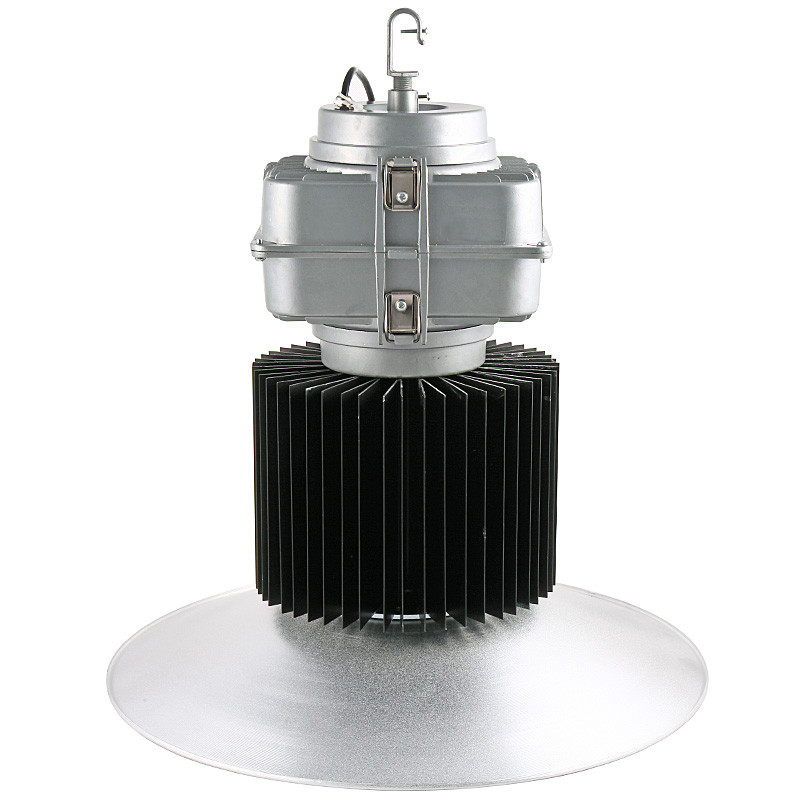

300W 135 Degree IP65 Super Brightness Bridgelux High Bay Lighting Led with CSA CE SAA
150W LED High Bay Specifications:
| Model No. | AMB-IL-300w |
| Equivalent | 500W High Pressure Sodium Lamp |
| LED Light Source | 3 × 90W Bridgelux 60mil LED |
| LED Luminous Efficiency | 120 lm/w |
| Lamp Total Power | 300W |
| Power Efficiency | > 95% |
| Lamp Rated Luminous Flux | > 29, 000lm |
| Lamp Rated Luminous Efficiency | > 110lm/W |
| Color Rendering Index(CRI) | Ra> 75 |
| Color Temperature(Color Temperature) | Cool white: 6000-6500K |
| Pure white: 5000-5500K | |
| Warm white: 2700-3200K | |
| Beam Angle | 60 degrees or 120 degrees or 150 degrees |
| Light Distribution/Beam Pattern | Round Beam |
| Input Voltage | AC 95-265V; DC 30-36V |
| FrequencyRange | 50/60HZ |
| Power Factor(PF) | > 0.95 |
| Total Harmonic Distortion(THD) | < 15% |
| Storage Temperature | -40--+80 |
| Working Environment | -40--+50; 10%-95%RH |
| Junction Temperature(Tj) | 60 ± 10%(ta=25) |
| Light Body and Lampshade Material | Aluminum Alloy and AL glass |
| Working Lifetime | > 50, 000hrs |
| IP Rating |
IP65 |
Our range
Input voltage: AC95-AC305V
Viewing Angle: 150 degree /120 degree/ 60 degree
Color: Warm white/ pure white/cold white
Luminous Flux: 29000lumen
Dustproof function.
View different direction:
Product dimension:
80W led high bay light, 100W led high bay light, 150W led high bay light, 180W led high bay light, 200W led high bay light, 250W led high bay light, 300W led high bay light.
Application:
It is applicable to large factory and workshop, office, storehouse, large superstore, supermarket, specialty stores, wholesale market and other places require high power lighting.
Installation:
Why choose our AMB led high bay light?
1. High brightness led high bay, original 60mil Bridgelux chip, which is 5 years warranty time.
2. High efficency and power factor driver, Taiwan Meanwell HLG driver.
3. Patent copper cooling system, this ideal heat dissipation design solve the heat problem 100%.
4. Long life-span, more than 5000hrs, our led high bay working temperature is only 48degree(tested in 34degree workshop).
Our high bay is the best by far in the world, with super brightness, full watts range, full color range with different angle for all projects, We guarantee 7years warranty time for CHIP, 5years warranty time for PSU. We guarantee it will be at less 90% brightness within 3years. As it is IP65, both outdoor and indoor allowed. And, we are the only one LED high bay factory who invited by 2012 LED next stage fair in Japan.
