| Place of Origin: | Shenzhen |
|---|---|
| Brand Name: | AMB |
| Certification: | CE/ CSA/ SAA/ETL/ UL(Pending）. |
| Model Number: | AMB-3L-150W |
| Minimum Order Quantity: | 2pcs |
| Price: | Negotiate |
| Packaging Details: | 2pcs/carton |
| Delivery Time: | 3days for samples, 7~15days for large quantity |
| Payment Terms: | TT, Western Union, L/C |
| Supply Ability: | 5000pcs per month |
| High Light: | led high bay lighting,led high bay lamps |
||
|---|---|---|---|

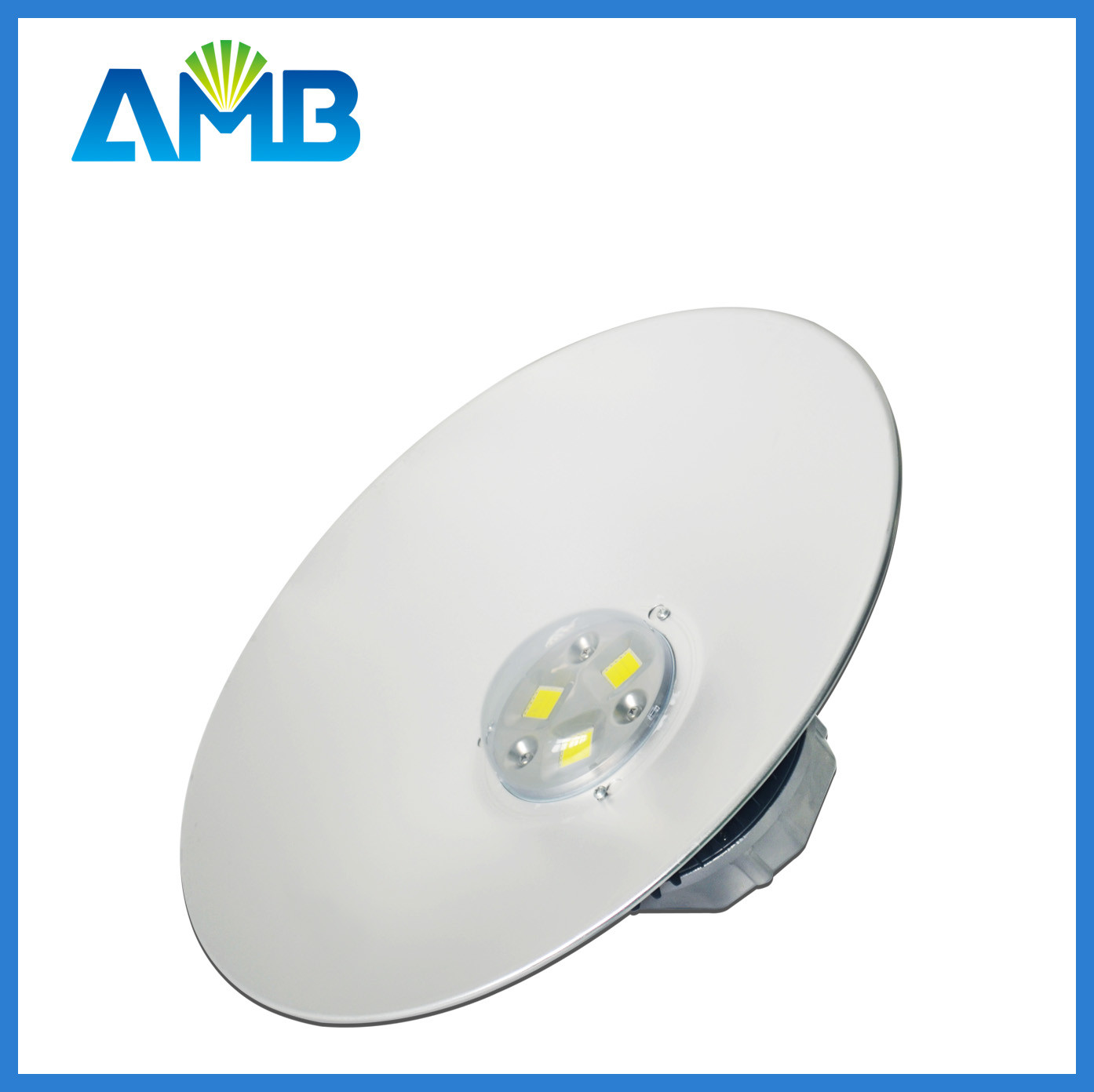

150W IP65 LED High Bay Lights With 45mil Bridgelux LED Chip and 3 years Warranty Time
Newest Design AMB 150W LED High Bay With Patent Cooling System, 45mil Bridgelux LED Chip, Taiwan Meanwell Driver CLG series which is 3years warranty time.
150W LED High Bay Specifications:
| Model No. | AMB-3L-150w |
| Equivalent | 400W High Pressure Sodium Lamp |
| LED Light Source | 3 × 45W Bridgelux 60mil LED |
| LED Luminous Efficiency | 120 lm/w |
| Lamp Total Power | 150W |
| Power Efficiency | > 95% |
| Lamp Rated Luminous Flux | > 16, 500lm |
| Lamp Rated Luminous Efficiency | > 110lm/W |
| Color Rendering Index(CRI) | Ra> 75 |
| Color Temperature(Color Temperature) | Cool white: 6000-6500K |
| Pure white: 5000-5500K | |
| Warm white: 2700-3200K | |
| Beam Angle | 60 /120 /135 /150 degrees |
| Dimension |
Φ480×360-Φ580×572 |
| Input Voltage | AC 85~305V, or AC347, or AC385 |
| FrequencyRange | 50/60HZ |
| Power Factor(PF) | > 0.95 |
| Total Harmonic Distortion(THD) | < 15% |
| Storage Temperature | -40--+80 |
| Working Environment | -40--+50; 10%-95%RH |
| Junction Temperature(Tj) | 60 ± 10%(ta=25) |
| Light Body and Lampshade Material | Aluminum Alloy and AL glass |
| Working Lifetime | > 50, 000hrs |
| IP Rating |
IP65 |
High quality LED high bay : 3years warranty time led high bay, AMB offer 50w smart led high bay to 300w powerful led high bay (50w ,80w ,100w .120w .150w .200w .250w .300w )
. Meanwell HLG model driver AC85-AC305V with UL ,PSE.CE.ETL.CSA .SAA RoHS
. Bridegelux BXDC6060 model LED . 60mil Chip Size.140lumen/w .
. Perfect heat sink made COB LED operating temperature is 38 ℃- 52 ℃(ambient temperature is 32 ℃)
Copper pin fin heat sinks + Japan HDT technology+2.277 W/Kg ℃ unique heat sink design are suitable foe extreme cooling needs and for scenarios that require rapid heat spreading , Absolute customization allows for the maximization of heat sink surface area and eliminates bypass air .
|
No. |
1 |
2 |
3 |
4 |
5 |
|
Model No. |
AMB-3L-50w |
AMB-3L-80w |
AMB-3L-100w |
AMB-3L-120w |
AMB-3L-150w |
|
Power Consumptionb |
50 |
80 |
100 |
120 |
150 |
|
LED Initial Flux |
5200 |
8300 |
12000 |
12500 |
14600 |
|
Lamp Flux |
4800 |
7500 |
10400 |
11900 |
13500 |
|
Beam Angle |
60°/120°/150° |
60°/120°/150° |
60°/120°/135°/150° |
60°/120°/135°/150° |
60°/120°/135°/150° |
|
Input Voltage |
90-305 |
90-305 |
90-305 |
90-305 |
90-305 |
|
Power Factor |
>0.97 |
>0.97 |
>0.97 |
>0.97 |
>0.97 |
|
Power Efficiency |
96% |
93% |
104% |
95.8% |
92% |
|
Color |
Warm White |
Warm White |
Warm White |
Warm White |
Warm White |
|
Color Rendering Index |
Ra75-85 |
Ra75-85 |
Ra75-85 |
Ra75-85 |
Ra75-85 |
|
Working Enviornment |
Temperature: -40℃～50℃ |
Temperature: -40℃～50℃ |
Temperature: -40℃～50℃ |
Temperature: -40℃～50℃ |
Temperature: -40℃～50℃ |
|
Material |
Aluminum Copper PC |
Aluminum Copper PC |
Aluminum Copper PC |
Aluminum Copper PC |
Aluminum Copper PC |
|
IP Rating |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
|
Working Life |
>50000 |
>50000 |
>50000 |
>50000 |
>50000 |
|
Product Dimension |
60°: 150°: |
60°: 150°: |
60°: 150°: |
60°: 150°: |
60°: 150°: |
|
Packing Dimension |
Lamp Body 2pcs/carton |
Lamp Body 2pcs/carton |
Lamp Body 2pcs/carton |
Lamp Body 2pcs/carton |
Lamp Body 2pcs/carton |
|
Net Weight/ |
3kg/ 3.5kg |
5.5kg 6kg |
5.9kg 6.5kg |
7.2kg 8k |
7.5kg 8kg |
Details advantages
Bridgelux 60mil COB chip,5years warranty time
Taiwan meanwell HLG model driver 5years warranty time
Copper cooling system& Japan patent heat sink technology
Smart function: Wifi control +Dimmer function
· Saving electricity up to 75% compared to High Bay
· Safety enhancement with glass-material
· Eco-friendly .No mercury contained
· Anti-global warming by reduction of CO2 emission
· Low temperature maintained by unique heat dissipation mechanism
· Longer Lifetime of 50000~80000 hrs
· Warranty period is 5 years from the date of purchase(Om condition
that operating ambient temperature is 0°C~40°C (32°F~86°F) and use time is 12hours per day)Application:
It is applicable to large factory and workshop, office, storehouse, large superstore, supermarket, specialty stores, wholesale market and other places require high power lighting.
Widely used in the hotel, meeting room, offices , hospital , schools , factories , commercial lighting , shopping malls,
supermarkets, kitchen, diaplay, backlight and so on.
|
|
|
|
|
Pictures
|
Products name |
Life-span compare |
Cost compare |
|
|
HID high bay |
6000hours |
4 pieces new HID high bay cost, replacement fee |
|
|
AMB LED high bay |
50000-80000hrs |
5 years warranty time No replacement fee |
