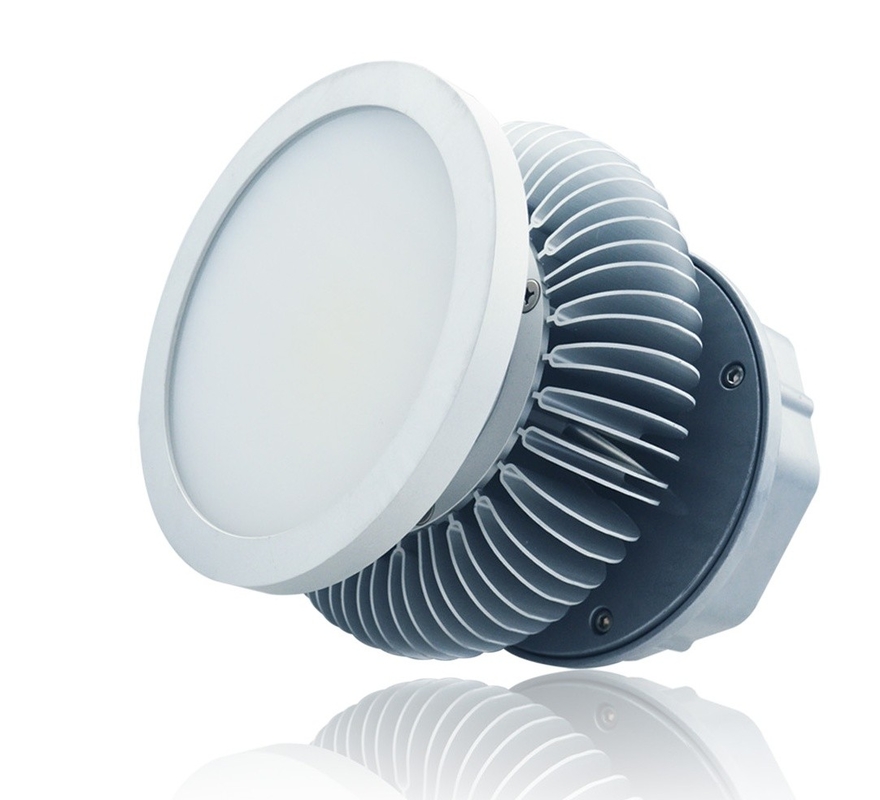

200W IP65 Meanwell HBG driver LED High Bay Led Industrial Lighting Fixture
200W IP65 top quality high brightness LED high bay, LED industrial light Fixture with 60mil Bridgelux LED chip, Taiwan Meanwell Driver , Copper cooling system&patent heat sink technology.
200W LED High Bay Specifications:
| Model No. |
AMB-HBG-200w |
| Equivalent |
500W High Pressure Sodium Lamp |
| LED Light Source |
3 × 80W Bridgelux 60mil LED |
| LED Luminous Efficiency |
130 lm/w |
| Lamp Total Power |
200W |
| Power Efficiency |
> 95% |
| Lamp Rated Luminous Flux |
> 25, 000lm |
| Lamp Rated Luminous Efficiency |
> 125lm/W |
| Color Rendering Index(CRI) |
Ra> 80 |
| Color Temperature(Color Temperature) |
Cool white: 6000-6500K |
| Pure white: 5000-5500K |
| Warm white: 2700-3200K |
| Beam Angle |
60 degrees or 120 degrees or 150 degrees |
| Light Distribution/Beam Pattern |
Round Beam |
| Input Voltage |
AC 95-265V; DC 30-36V |
| FrequencyRange |
50/60HZ |
| Power Factor(PF) |
> 0.95 |
| Total Harmonic Distortion(THD) |
< 15% |
| Storage Temperature |
-40--+80 |
| Working Environment |
-40--+50; 10%-95%RH |
| Junction Temperature(Tj) |
60 ± 10%(ta=25) |
| Light Body and Lampshade Material |
Aluminum Alloy and AL glass |
| Working Lifetime |
> 50, 000hrs |
| IP Rating |
IP65
|
Details advantages
Bridgelux 60mil COB chip,5years warranty time
Taiwan meanwell HLG model driver 5years warranty time
Copper cooling system& Japan patent heat sink technology
Smart function: Wifi net led control function available
· Saving electricity up to 75% compared to High Bay
· Safety enhancement with glass-material
· Eco-friendly .No mercury contained
· Anti-global warming by reduction of CO2 emission
· Low temperature maintained by unique heat dissipation mechanism
· Longer Lifetime of 50000~80000 hrs
· Warranty period is 5years from the date of purchase(Om condition
that operating ambient temperature is 0°C~40°C (32°F~86°F) and use time is 12hours per day)
Our range
50W led high bay light, 80W led high bay light, 100W led high bay light, 150W led high bay light, 180W led high bay light, 200W led high bay light, 250W led high bay light, 300W led high bay light.
Application:
It is applicable to large factory and workshop, office, storehouse, large superstore, supermarket, specialty stores, wholesale market and other places require high power lighting.
Why choose our AMB led high bay light?
1. High brightness led high bay, original 60mil Bridgelux chip, which is 5 years warranty time.
2.Patent copper cooling system, this ideal heat dissipation design solve the heat problem 100%.
3. High efficency and power factor driver, Taiwan Meanwell HLG driver.
4. Long life-span, more than 5000hrs, our led high bay working temperature is only 48degree(tested in 34degree workshop).
