| Place of Origin: | Shenzhen |
|---|---|
| Brand Name: | AMB |
| Certification: | CE/ ETL/ SAA ect. |
| Model Number: | AMB-3L-100W |
| Minimum Order Quantity: | 2pcs |
| Price: | Negotiable |
| Packaging Details: | 2pcs/carton |
| Delivery Time: | 7days for samples, 30days for bulk order |
| Payment Terms: | TT, Western Union, L/C |
| Supply Ability: | 5000pcs per month |
| High Light: | high bay led lights,led high bay lamps |
||
|---|---|---|---|

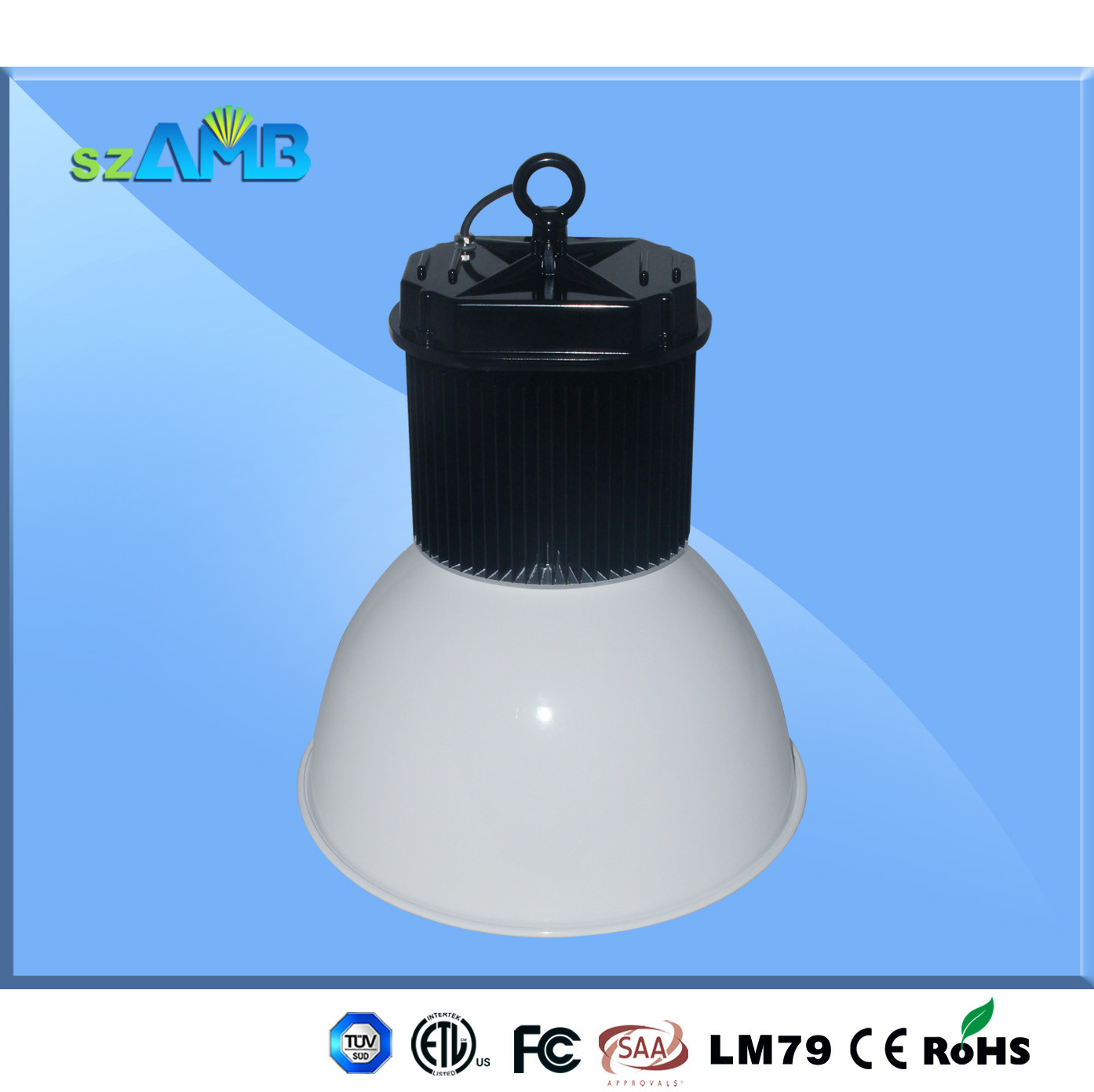

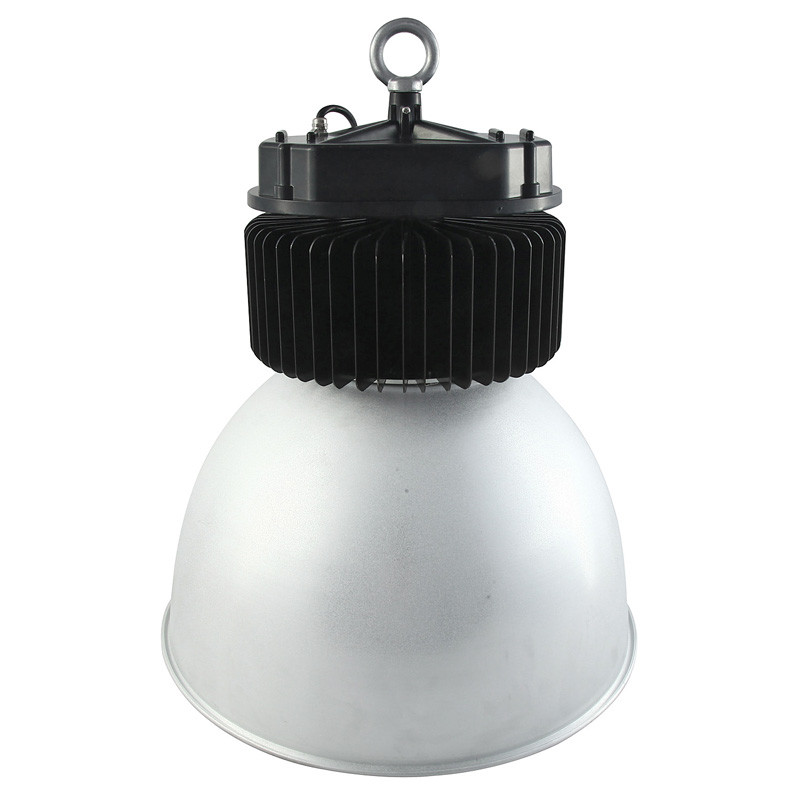

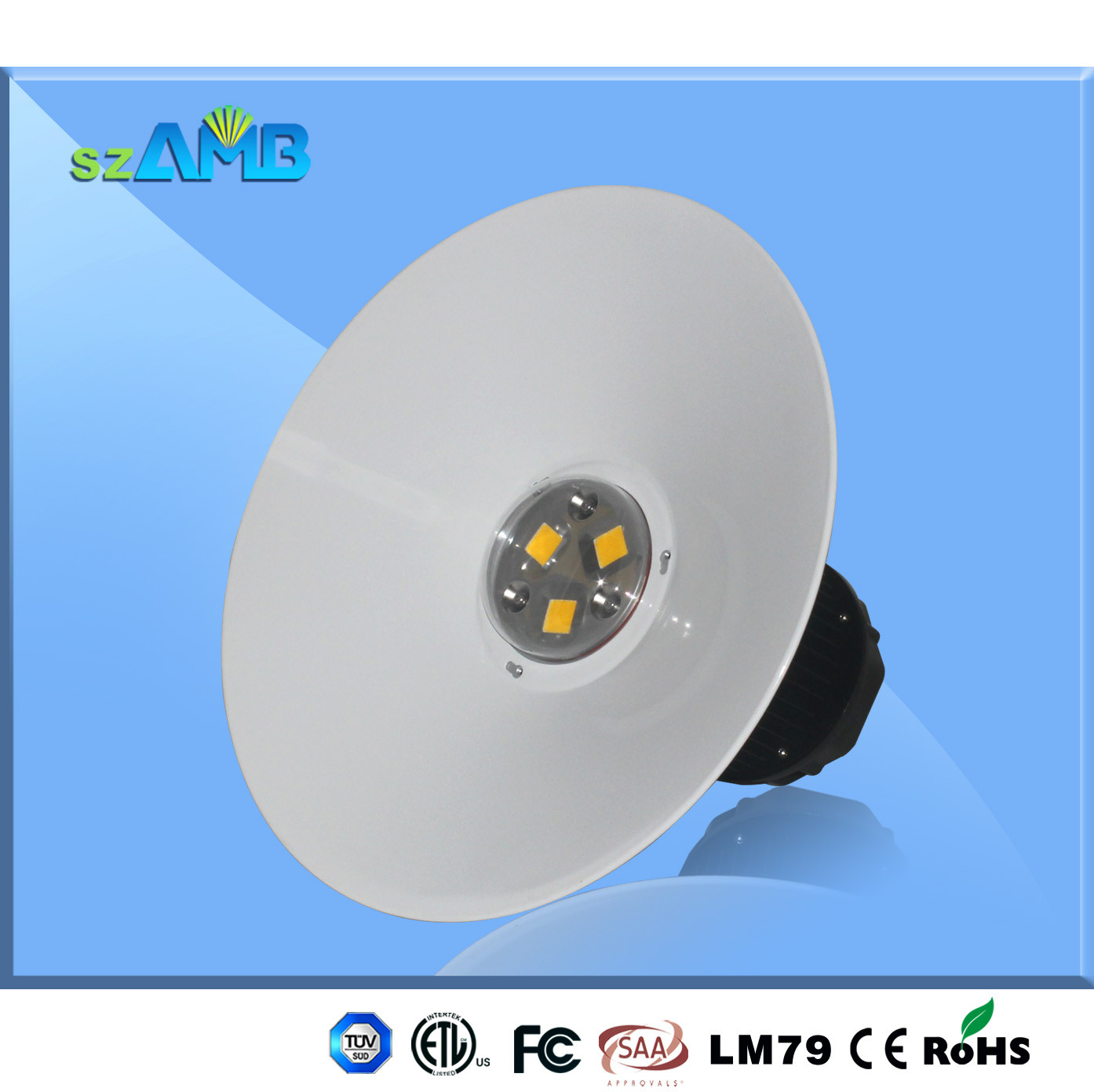

100W High Power Outdoor LED Led Highbay Lights Replacement of High Pressure Sodium Lamp
Why choose our AMB led high bay light?
1.High efficency and power factor driver, Taiwan Meanwell HLG driver.
2. High brightness led high bay, original 60mil Bridgelux chip, which is 5 years warranty time.
3. Patent copper cooling system, this ideal heat dissipation design solve the heat problem 100%.
4. Long life-span, more than 5000hrs, our led high bay working temperature is only 48degree(tested in 34degree workshop).
100W LED High Bay Specifications:
| Model No. | AMB-3L-100w |
| Equivalent | 400W High Pressure Sodium Lamp |
| LED Light Source | 3 × 30W Bridgelux 60mil LED |
| LED Luminous Efficiency | 120 lm/w |
| Lamp Total Power | 100W |
| Power Efficiency | > 95% |
| Lamp Rated Luminous Flux | > 10, 000lm |
| Lamp Rated Luminous Efficiency | > 110lm/W |
| Color Rendering Index(CRI) | Ra> 75 |
| Color Temperature(Color Temperature) | Cool white: 6000-6500K |
| Pure white: 5000-5500K | |
| Warm white: 2700-3200K | |
| Beam Angle | 60 degrees or 120 degrees or 150 degrees |
| Light Distribution/Beam Pattern | Round Beam |
| Input Voltage | AC 95-265V; DC 30-36V |
| FrequencyRange | 50/60HZ |
| Power Factor(PF) | > 0.95 |
| Total Harmonic Distortion(THD) | < 15% |
| Storage Temperature | -40--+80 |
| Working Environment | -40--+50; 10%-95%RH |
| Junction Temperature(Tj) | 60 ± 10%(ta=25) |

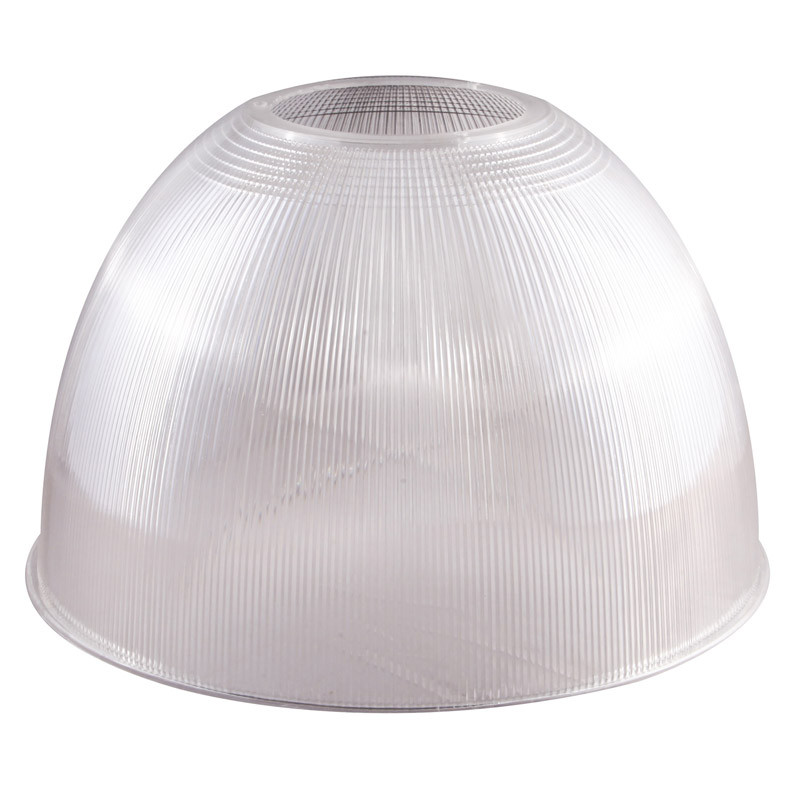

| Light Body and Lampshade Material | Aluminum Alloy and AL glass |
| Working Lifetime | > 50, 000hrs |
| IP Rating | IP65 |
Application:
It is applicable to large factory and workshop, office, storehouse, large superstore, supermarket, specialty stores, wholesale market and other places require high power lighting.
Installation:
