| Place of Origin: | China |
|---|---|
| Brand Name: | AMB |
| Certification: | UL ETL SAA FCC CE ROHS |
| Model Number: | AMB-3L-200W |
| Minimum Order Quantity: | 2pcs |
| Packaging Details: | 2pcs/carton |
| Delivery Time: | 3days for samples, 7~15days for large quantity |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 10,000PCS/month |
| LED Light Source: | 3 × 60W Bridgelu LED | LED Luminous Efficiency: | 130 Lm/w |
|---|---|---|---|
| Power: | 200W | IP Rating: | IP65 |
| High Light: | high bay led lights,led high bay lamps |
||

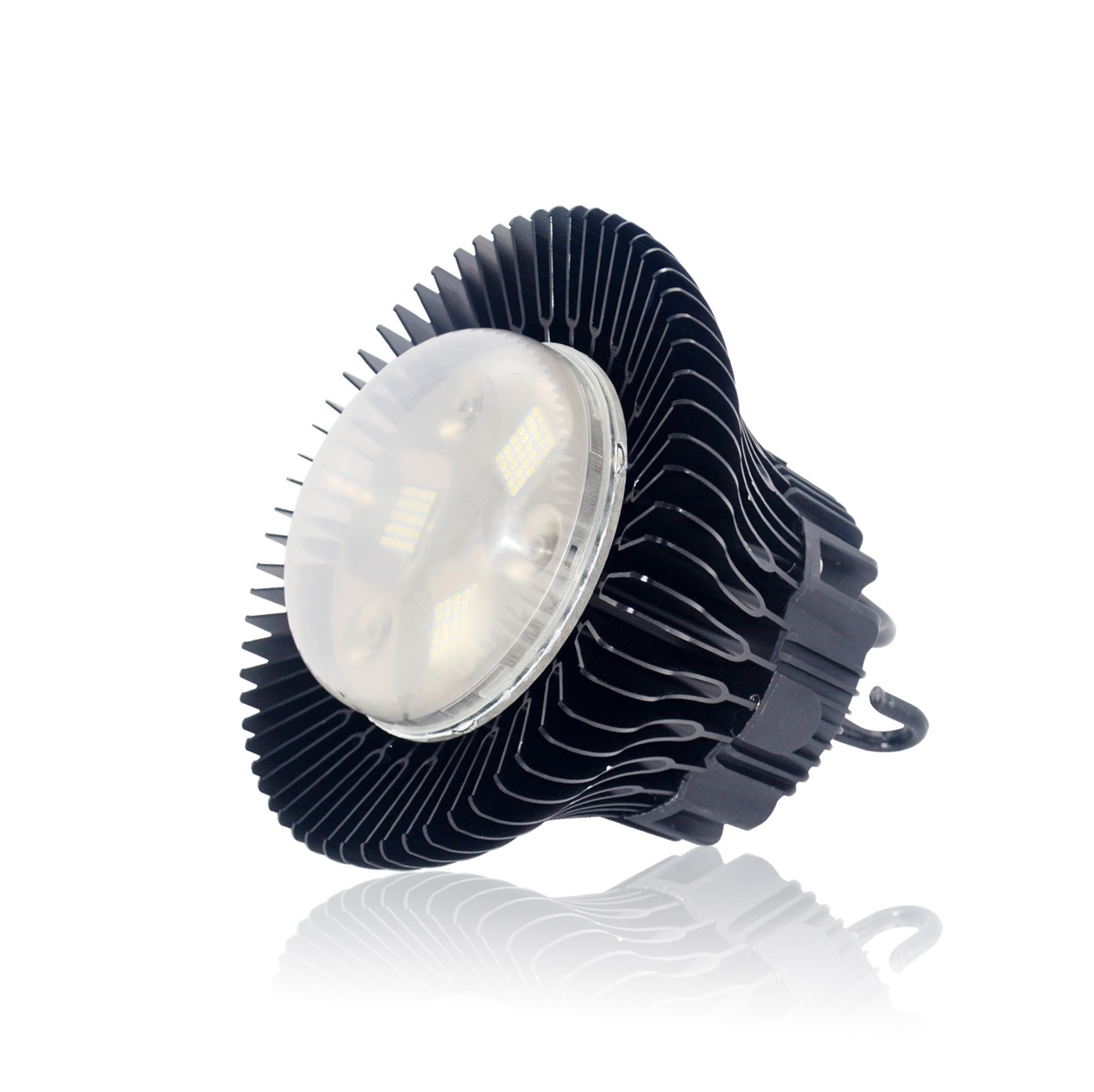

200w 4000k - 6000k Led Highbay Lights For outdoor Industrial Lighting Project
Quick description :
1. Meanwell driver and Bridgelux chip
2. Luminous Flux: 20000lumen
3. Viewing Angle: 150 degree /120 degree/ 60 degree
4. IP65
5. Safety steel wire on the sides for safe
6. 5 years warranty
Descriptions :
1. Certificate : UL., ETL, SAA,PSE,CE,RoHS,FCC
2. Meanwell HLG modle with 5 years waranty and Bridgelux chip with 7 years warranty
3. Three COBs to make light more concentrated and higher light efficiency : 110 lumen/ watt
4. High CRI > 78
5. Wide range from 50 W to 300W are available , 3000K tp 6500 K are optional
6. With steel safety wires to ensure safety
Why choose our AMB led high bay light?
1. High efficency and power factor driver, Taiwan Meanwell HLG driver.
2. High brightness led high bay chip, original 60mil Bridgelux chip, which is 5 years warranty time.
3. .Long life-span, more than 5000hrs, our led high bay working temperature is only 48degree(tested in 34degree workshop).
4. Patent copper cooling system, this ideal heat dissipation design solve the heat problem 100%.
Application:
It is applicable to large factory and workshop, office, storehouse, large superstore, supermarket, specialty stores, wholesale market and other places require high power lighting.
200W LED High Bay Specifications:
|
Model No. |
AMB-3L-200w |
|
Equivalent |
800W High Pressure Sodium Lamp |
|
LED Light Source |
3 × 60W Bridgelu LED |
|
LED Luminous Efficiency |
130 lm/w |
|
Lamp Total Power |
200W |
|
Power Efficiency |
> 95% |
|
Lamp Rated Luminous Flux |
> 26, 000lm |
|
Color Rendering Index(CRI) |
Ra> 75 |
|
Color Temperature(Color Temperature) |
Cool white: 6000-6500K |
|
Pure white: 5000-5500K |
|
|
Warm white: 2700-3200K |
|
|
Beam Angle |
60 degrees or 120 degrees or 150 degrees |
|
Light Distribution/Beam Pattern |
Round Beam |
|
Input Voltage |
AC 85 - 305V; |
|
FrequencyRange |
50/60HZ |
|
Power Factor(PF) |
> 0.95 |
|
Total Harmonic Distortion(THD) |
< 15% |
|
Storage Temperature |
-40--+80 |
|
Working Environment |
-40--+50; 10%-95%RH |
|
Junction Temperature(Tj) |
60 ± 10%(ta=25) |
|
Light Body and Lampshade Material |
Aluminum Alloy , PC cover |
|
Working Lifetime |
> 50, 000hrs |
|
IP Rating |
IP65 |
