| Place of Origin: | China |
|---|---|
| Brand Name: | AMB |
| Certification: | GMC，CB，CE(EMC ,LVD)，TUV，RoHS，UL |
| Model Number: | AMB-3L200w |
| Minimum Order Quantity: | 2pcs |
| Price: | negotiable |
| Packaging Details: | 2pcs/carton,28kg,660*660*320mm |
| Delivery Time: | 3-15days |
| Payment Terms: | L/C T/T |
| Supply Ability: | 50000pcs/month |
| Power: | 200w | Input Voltage: | AC85-305v 50/60HZ |
|---|---|---|---|
| Flux: | 24, 000lm | LED Lifetime: | 7 Years |
| High Light: | led high bay lighting,led high bay lamps |
||

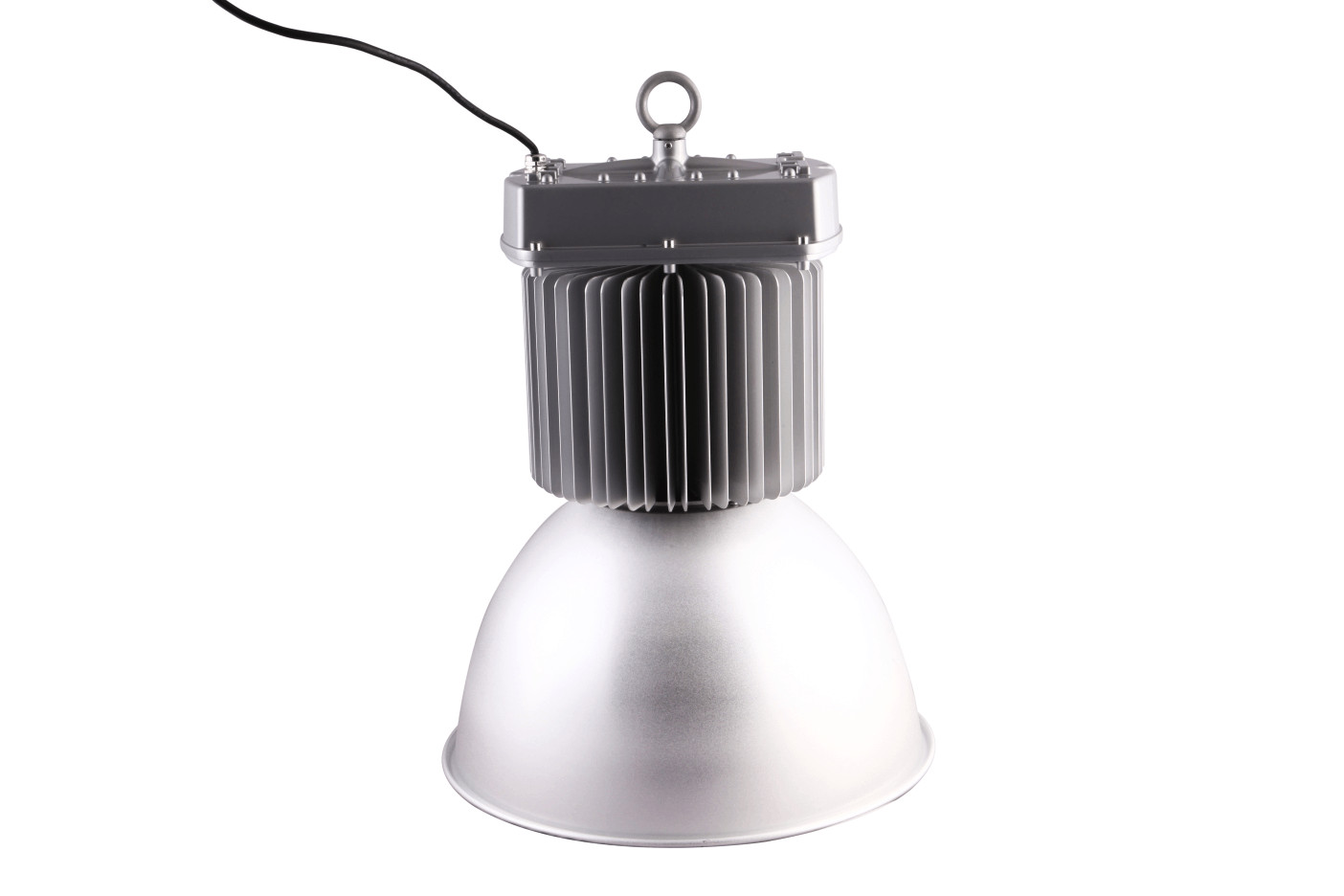

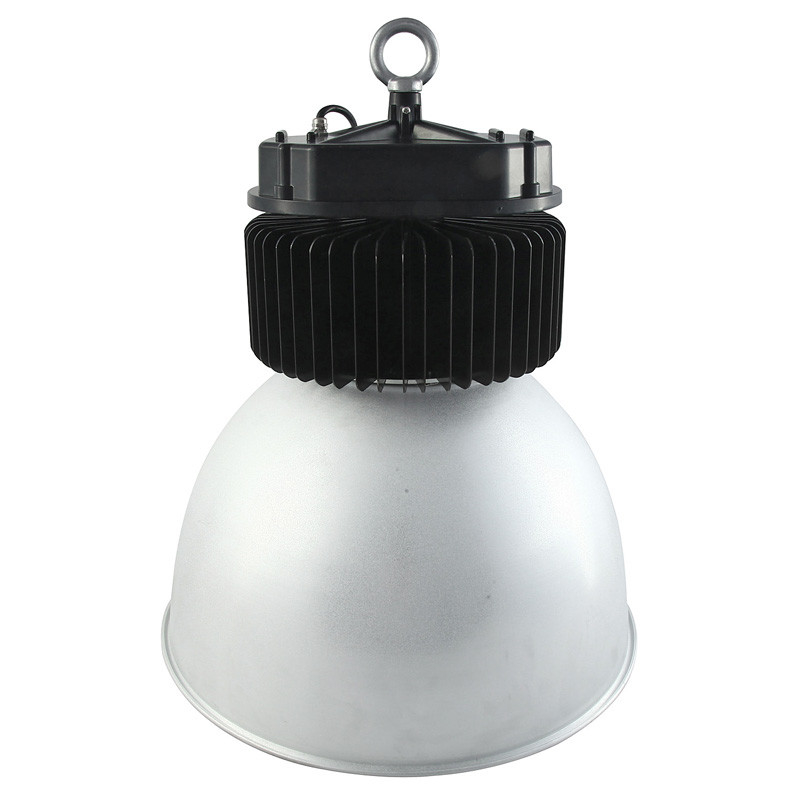

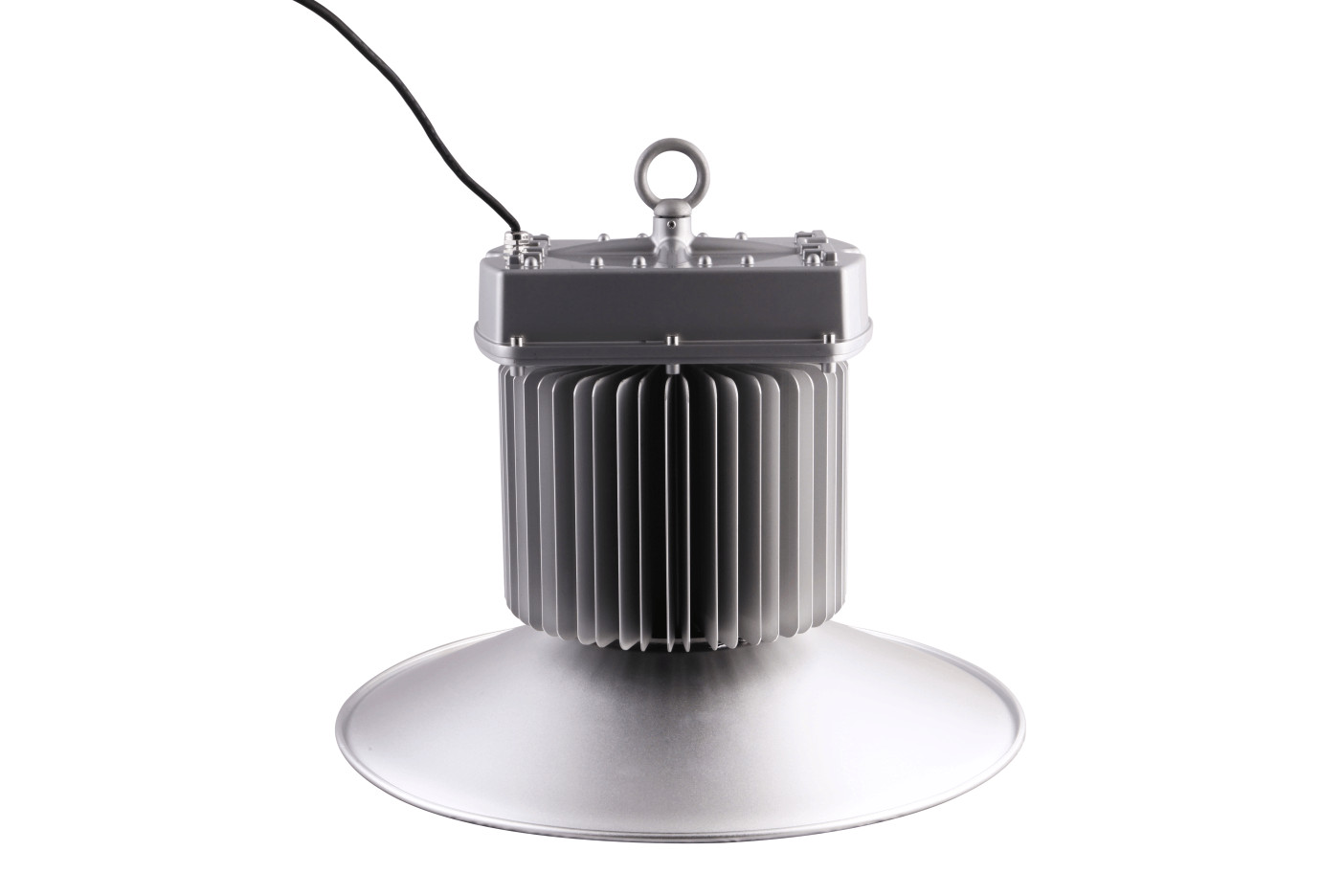

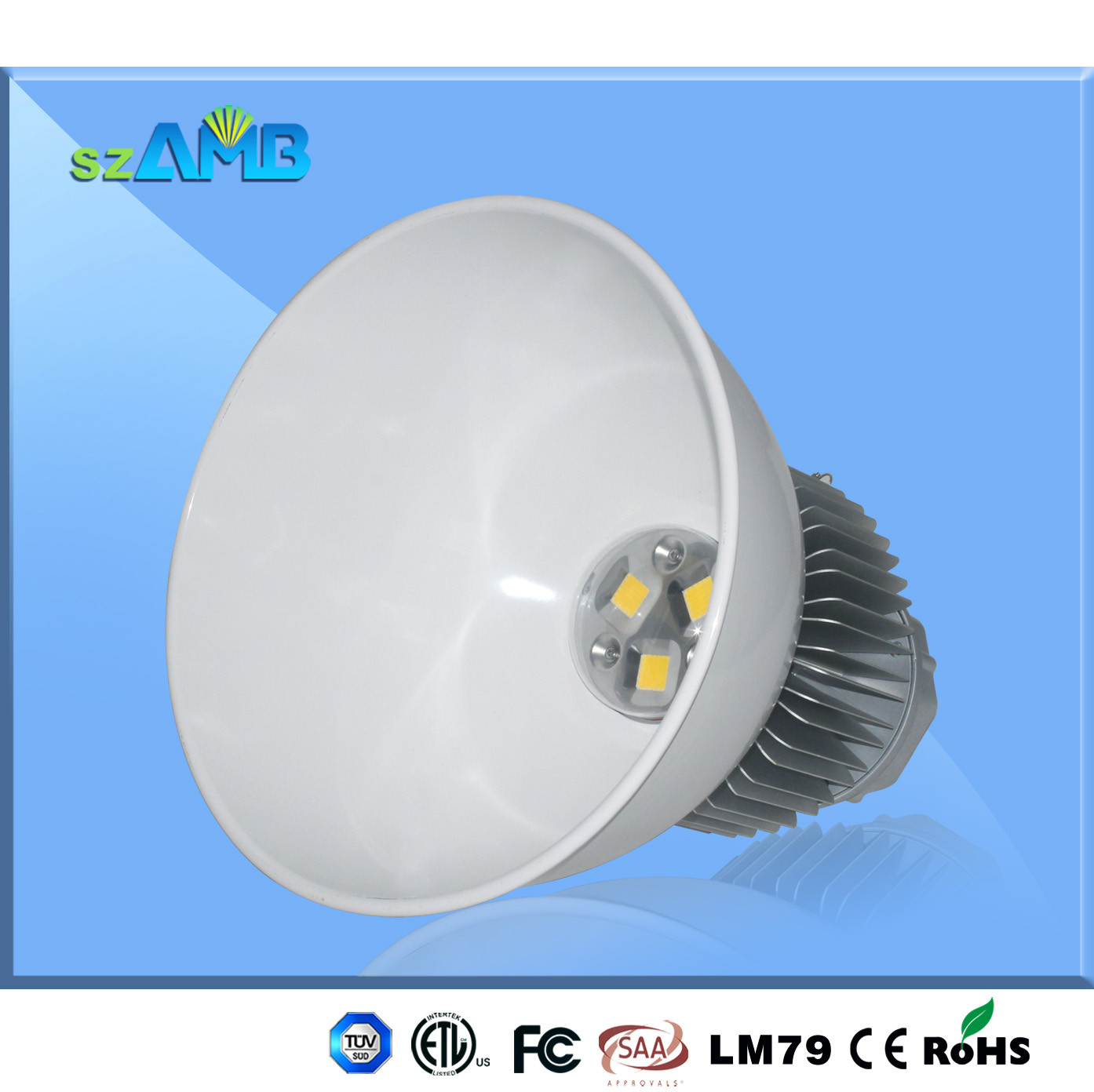

200W cold wihte Led Highbay Lights for Workshop Garage
Descrition:
LED High Bay, LED High Bay Light
LED High Bay features
Great Lighting source,
Bridgelux 60mil LED-best model at the moment, the bigger size the better quality, but most other factories use 45mil even 38mil LED.
Low Power consumption
High luminosity and long life time
Environmentally friendly
Excellent opto-electronic performance
Optimized heat fins for natural convection
High efficiency cooling system
High efficiency LED Power driver: Meanwell from Taiwan which is 5 years warranty time
High light transmission PC protection cover.
Applications:
Warehouse Light, Garage Lighting, Workshop Lighting, Public Lighting, Parking Lot Lighting, Walkway Lighting, Other open spaces lighting.
Competitive advantage:
5 years warranty time for LED High Bay
Copper cooling system: working tempreture less than 60 degree
Best LED in the world:60mil Bridgelux led(120-135lm/w), most factories use 45mil, even38mil,
CE, FCC, RoHS, TUV, ETL, GMC certifications are aviable
Meanwell LED driver: 5 years warranty time, AC90-305v
Different housing: 60degree, 120 degree with both Aluminium, acrylic housing
Our range:50w LED Highbay, 80w LED Highbay, 100w LED Highbay, 150w LED Highbay, 180w LED Highbay, 200w LED Highbay, 250w LED Highbay, 300w LED Highbay.
Features:
Light source:Bridgelux 60mil LED- best model at the moment, the biigger size better quality, but most of other factories use 45mil even 38 LED.
Low power consumption
High luminosity and long life time
Environmentally friendly
Excellent opto-electronic performance
Optimized heat fins for natural convection
High-efficiency LED power driver: Meanwell from Taiwan, which is 5 years warranty time
Delivery time:3 days for samples, 15dyas for productions
Payment:TT, LC, West Union
Production Capacity:50, 000pcs/month
MOQ:5PCS
Export market:North America, South America, Eastern Europe, South
east Asia, Africa, Oceania, Mid East, Eastern Asia, western Europe.
Specifications:
|
Parameter |
Description |
|
Power |
200w |
|
Input Voltage |
AC85-305v 50/60HZ |
|
Light efficiency |
>120lm/w |
|
Power factor |
>0.98 |
|
Total harmonic index |
>20% |
|
Flux |
24, 000lm |
|
LED lifetime |
7 years |
|
Operation temperature |
-30℃~+50℃ |
|
Light source |
High power LED |
|
Optical Lens |
PMMA/AL Optical Lens |
|
Optical Design |
Special Batwing and Asmmetrical light patterns |
|
Beam Color |
Typical 6000k |
|
Color Rendering Index |
Typical 70 |
|
Housing |
PC |
|
Body weight |
11.7kg |
|
IP rating |
IP 65 |
|
Color temperature |
Ww/dw/pw/cw |
