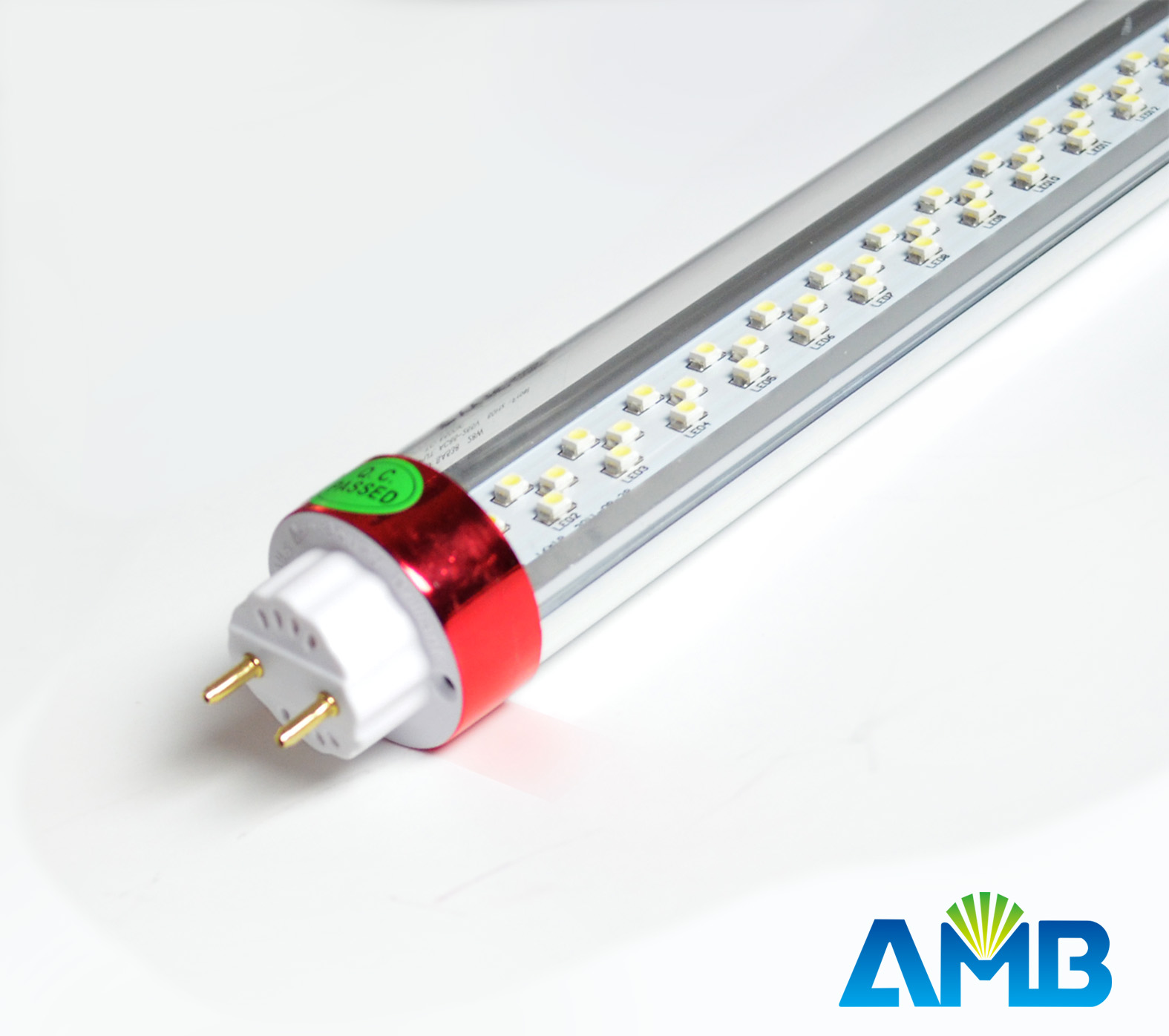

T8 High Brightness Led Tube Light 6500K 22W Dimmable For Office
LED Tube Features
Save more energy and money for you. Press"on", indicator: all the led tube will be lighting on Turn the controller to dimmer the light from 0%-100%.
Great Lighting source
the chip of led is of high quality and bigger size, 35*28chip, which model is 8C from Everlight in Taiwan. It can resist higher anti-static and distribute more brightness, esp. 3528 smd led is at least 2500mcd or 8lm.
Low light attenuation
esp. the white light is adopting new technology, less than 5% in 1000h, however, the traditional attenuation of white color at least 30%;
More durable & robust
It can light up to 10 years, comes with 3 years guarantee time
Ultra quality inner transformer
The core technology of Tube Light is inner LED driver. One driver broken, and the whole unit damaged. We have cooperated with one Key University since 2007 here and spent USD8000 mold charge to get one LED driver with exclusive agreement, and we use rubycon , ST for our led driver which is specially for our T10. what‘s more , and we use rubycon , ST for our led driver , make sure the led driver can last as long as possible
High safety performance
The double isolation from our LED driver. And the output voltage is DC12V/24V instead DC60V in the current market. What is more, our tubes are CE certified , UL , FCC, ETL , SAA and RoHS compliant. With the range of CE, we have passed through EMC and LVD test, so you can apply the tube for your projects freely. In order to confirm the truth of our T10 compared with some faked certification in other suppliers here, here we offer you authorised certified company Most Technology Service Co., Limited . You only open the link and input our Certificate Number, then you will get all details from us.
AMB LED Tube package, 6steps package make sure completely good units during shippment.
Quick assembly for installation
For new fixtures its running without ballast and starter, and putting it to conventional fitting directly. It comes with big cost savings. For old fixtures for saving labor cost , you can keep the ballast , and replace the starter with AMB fuse will be ok
Variety of Size
Tube Light now includes 2F.4F, 5F, 6F, 8F, Diameter T8(26mm) / T10(30mm)
Characteristics
Absolute Maximum Rating at TA=25
|
Parameter
|
Symbol
|
AMB-T8-60/90/120/150
|
Unit
|
|
Working Voltage
|
V
|
12-24v DC or 85-265v AC
|
V
|
|
Power Dissipation
|
PD
|
9 / 12 / 18 / 22 / 25 / 28
|
W
|
|
Electrostatic discharge
|
ESD
|
400
|
V
|
|
Operating Temperature
|
Topr
|
-20+50
|
C
|
|
Storage Temperature
|
Tstg
|
-30+60
|
C
|
Applications:
|
Widespread use in Family, School,
|
Office, Showing Room, Meeting Room
|
|
Commercial Building, Tower, Hotel, Restaurant
|
Factory, Production Line, Warehouse
|
|
Pathway lighting, Street lighting
|
Subway station, bus and train
|
Product Description
|

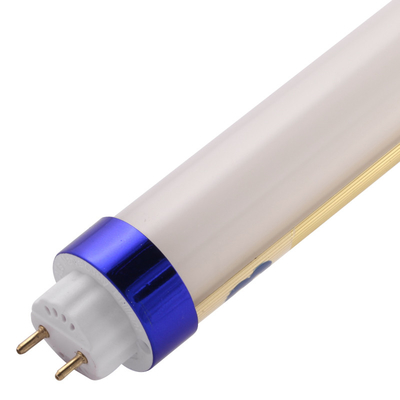

SA218( Latest Colorful rotating end cap& Isolated Driver )
|
|
Specification
|
Features
|
|
Power
|
22w 28w
|
1, Latest Colorful rotating end cap with vens which can save the heating problem
|
|
Luminous
|
1817±10%
|
2, Isolated power supply ( very safe )
|
|
LED Number
|
360pcs
|
3, PC cover: Transparant/ frosted/Stripe
|
|
Input Voltage
|
AC85 to 265V
|
4, Material: PC + AL
|
|
CRI
|
Ra:75-91
|
5, Light source: Everlight 8c model, 8lumen/3528
|
|
Power factor
|
0.95-0.99
|
6, Certification: TUV, CE(EMC, LVD, UL, SAA)RoHS , FCC
|
|
Operating frequency
|
50/ 60Hz
|
7, LED tube life-span: more than 50, 000 hours
|
|
Input current
|
58mA
|
8, Warranty: 3years
|
|
Color Temperature
|
2700-3200K; 4000-4500K; 5000~5500K; 6000-6500k
|
9, Delivery Time: 3 days for samples, and 15 days for productions
|
|
Color
|
warm white; daylight white; pure white; cool white
|
10, Payment: L/C, T/T, Western Union
|
|
Dimension
|
Φ26 x /588/1194/1498
|
11, Production Capacity: 50, 000pcs/month
|
|
Packaging
|
1pc/gift box , 30pcs/CTN, , 24kg/carton
|
12, MOQ: 10PCS
|
|
Carton measurement
|
126*30*30cm
|
|
More Product Features
|
HS Code:
|
|
|
Trademark:
|
AMB
|
|
Model NO.:
|
SA518
|
|
Standard:
|
TUV, RoHs , CE(EMC, LUV), SAA and UL
|
|
Productivity:
|
50, 000PCS /Month
|
|
Unit Price:
|
US $ 20-48/ Piece
|
|
Shipment Terms:
|
FOB
|
|
Payment Terms:
|
L/C, T/T, Western Union
|
|
Minimum Order:
|
10 Pieces
|
|
Packing:
|
1PC/Gift box
|
|
Usage:
|
Indoor Lighting
|
|
Shape:
|
Straight
|
|
Light:
|
Color Scanning
|
|
Lamp Holder/Base:
|
G13
|
|
Export Markets:
|
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
|
