| Place of Origin: | Shenzhen |
|---|---|
| Brand Name: | AMB |
| Certification: | CE/ETL/ SAA ect. |
| Model Number: | AMB-3L-150W |
| Minimum Order Quantity: | 2pcs |
| Price: | Negotiate |
| Packaging Details: | 2pcs/carton |
| Delivery Time: | 3days for samples, 7~15days for large quantity |
| Payment Terms: | TT, Western Union, L/C |
| Supply Ability: | 50000pcs per month |
| Color: | Black/Silver | Flux: | 17250-18000lumen |
|---|---|---|---|
| 50W LED High Bay Lighting Efficiency: | 115-120lumen/w | IP Rate: | Ip 65 |
| Color Rendering Index: | RA75-RA90 | Adjustable Angle: | 60degree,120degree,150degree |
| High Light: | high bay led lights,led high bay lighting |
||
150W IP65 Dimmable Aluminum LED High Bay Lamp Energy Star / ANSI
LED high bay light. High quality LED high bay light, high brightness LED high bay light, 5 years warranty time LED High bay light. This LED high bay light (is our hot sell product and they are very popular in oversea market. Perect performance as belows:
Our warranty time is 5 years:
Input voltage: AC100-AC305V
Flux: 17250-18000lumen
Color: black/silver
Viewing Angle: 150 degree /120 degree/ 60 degree
Color temperature:3000k/4000k/5500k/6500k
Color rendering index:RA75-RA90
Driver:Taiwan Meanwell HLG-185H-36B dimmable driver(making longger life-span by lower its current)
Heat sink:Pure copper endothermic material
Cooling paste:Japan's Shin-Etsu X-23-7762
Dustproof waterproof function.
Features:
1. Compact high flux density light source.
2. Uniform high quality illumination.
3. Steamlined thermal path.
4. Energy Star/ANSI compliant binning structure.
5. More energy afficient than incandescent.
6. Halogen and some fluorescent lamps.
7. Low voltage DC operation.
8. Install light with unlimited dimming.
9. 5-years warranty
10. ROHS compliant and Pb free.
150W LED High Bay Specifications:
| Model No. | AMB-3L-150w |
| Equivalent | 400W High Pressure Sodium Lamp |
| LED Light Source | 3 × 45W Bridgelux 60mil LED |
| LED Luminous Efficiency | 120 lm/w |
| Lamp Total Power | 150W |
| Power Efficiency | > 95% |
| Lamp Rated Luminous Flux | 17250-18000lm |
| Lamp Rated Luminous Efficiency | > 110lm/W |
| Color Rendering Index(CRI) | Ra> 75 |
| Color Temperature(Color Temperature) | 6500k |
| 5500k | |
|
4000k |
|
| 3000k | |
| Beam Angle | 60 degrees or 120 degrees or 150 degrees |
| Light Distribution/Beam Pattern | Round Beam |
| Input Voltage | AC 95-265V; DC 30-36V |
| FrequencyRange | 50/60HZ |
| Power Factor(PF) | > 0.95 |
| Total Harmonic Distortion(THD) | < 15% |
| Storage Temperature | -40--+80 |
| Working Environment | -40--+50; 10%-95%RH |
| Junction Temperature(Tj) | 60 ± 10%(ta=25) |
| Light Body and Lampshade Material | Aluminum Alloy and AL glass |
| Working Lifetime | > 50, 000hrs |
| IP Rating |
IP65 |
Product dimension:

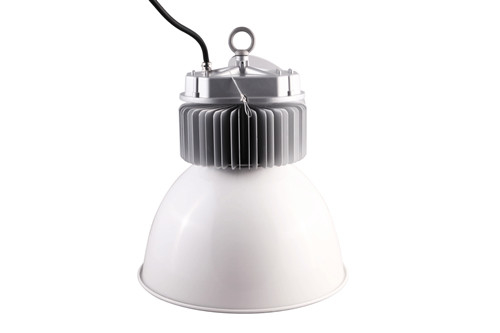

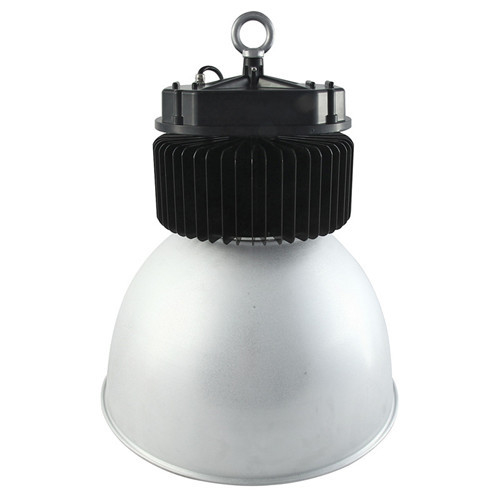

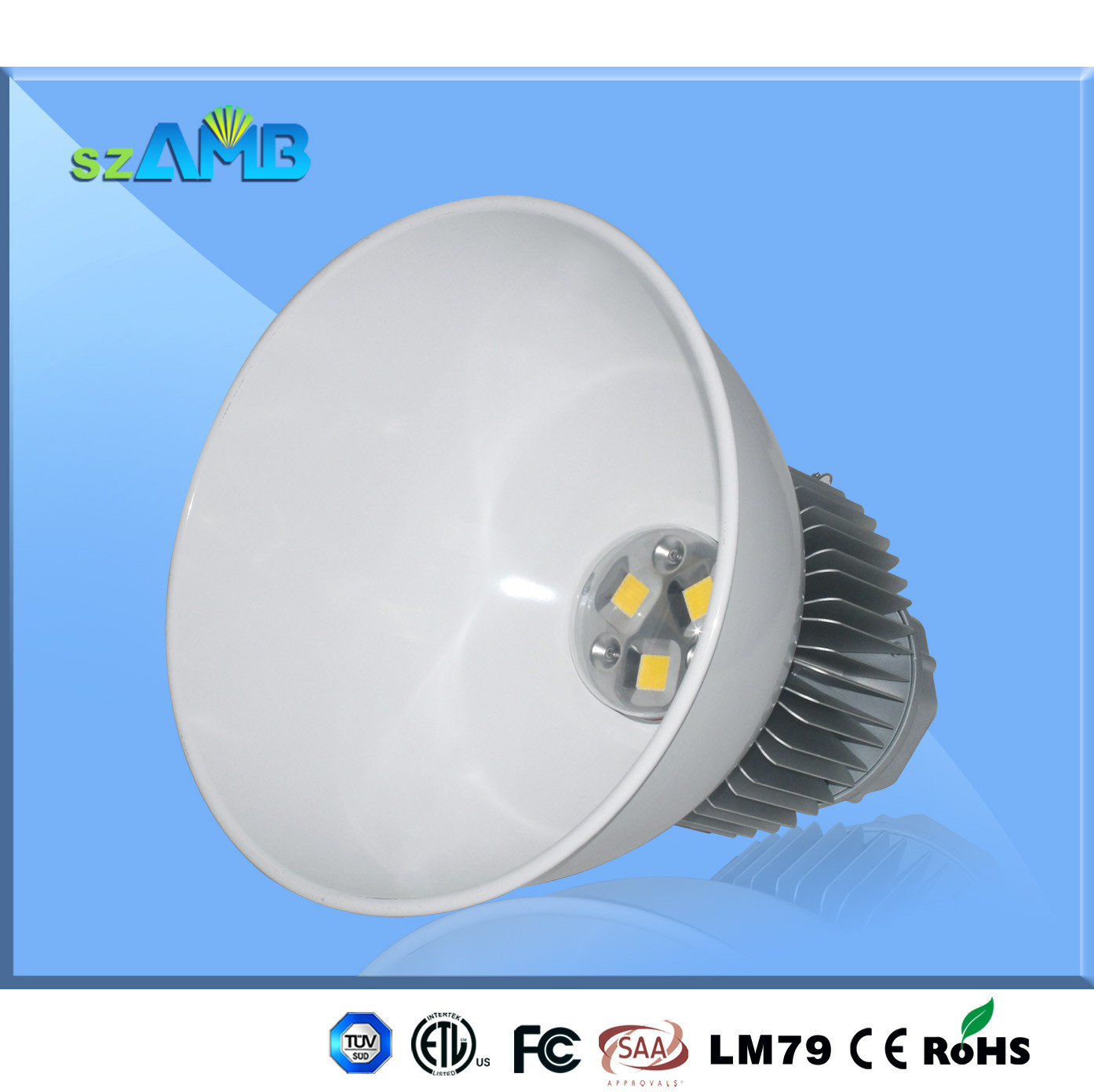

Product show:
60 degree housing cover:
120 degree housing cover:
150 degree housing cover:
Application:
It is widely used in large factory and workshop, office, storehouse, large superstore, supermarket, specialty stores, wholesale market and other places which require high power lighting.
