Lifespan: | 60000h | IP Rate: | Ip65 |
---|---|---|---|
CRI: | RA75 - RA80 | Power Factor: | 0.97 |
Beam Angle: | 60degree, 120degree, 150degree | Color Temperature: | 3000k, 4000k, 5500k, 6500k |
Warranty Time: | 5 Years+ | ||
Highlight: | outdooled flood light bulbs,high power led floodlight |
Production Introduction:

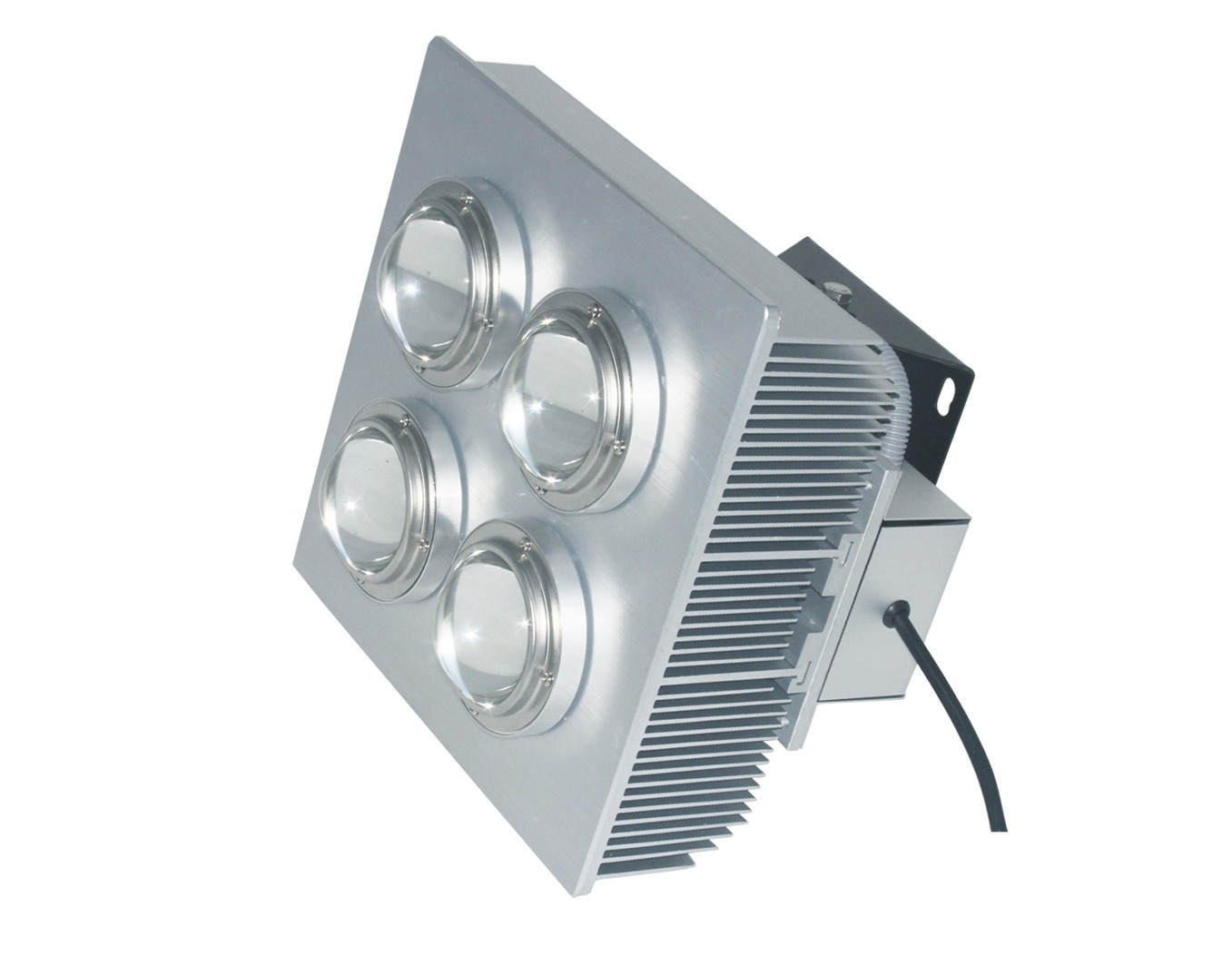

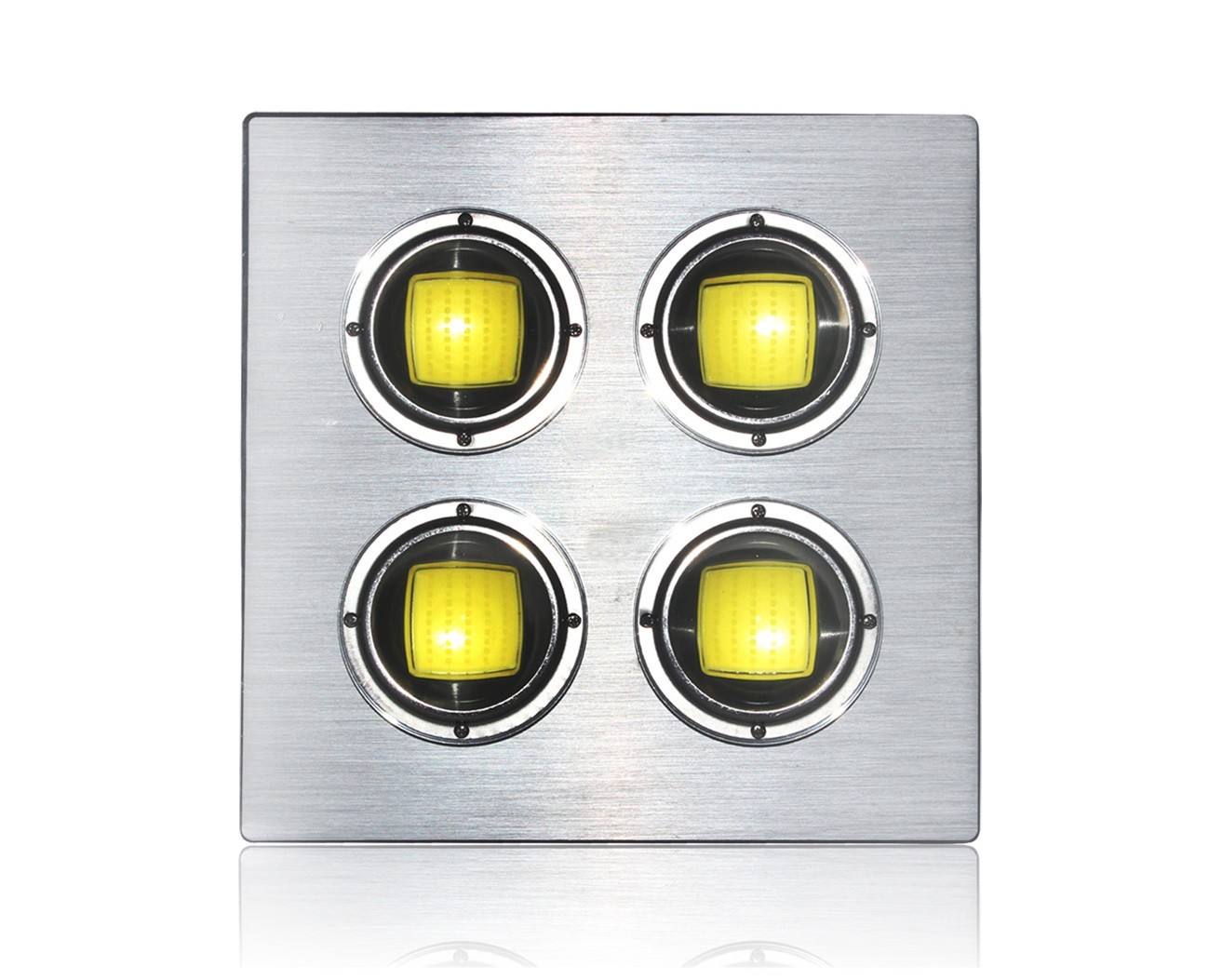

1. LED Floodlight
2. LED Floodlght features
3. Great Lighting source,
4. Taiwen Meanwell HLG - 240H - 36B dimmable driver,making longer life - span by lower
its current
5. Environmentally friendly
6. Excellent opto-electronic performance
7. High efficiency cooling system
8. 5 years warranty time
.
Competitive advantages:
1.Patent lens makes High lighting efficiency which is up to 165lumen/w ( USA Bridgelux chip BXCD4545445 - H2 -Z -:165L )
2.9.5kg,200w,smart design,good for 10 - 30 meter street pole to Withstand high winds or Square,large
parking lot ( Normal 200w LED floodlight is more than 20k)
3.Water proof and Dustproof
4.Beam angle adjustale 15degree,45degree,60degree,120dedree
5.5 years+ warranty time
6.TUV.ETL.CSA.LM79,DLC,SAA,CE,PSE,RoHs
7.Dimming fuction ( 1 - 10V )
8.Our ranges:10w - 600w led floodlight
Features:

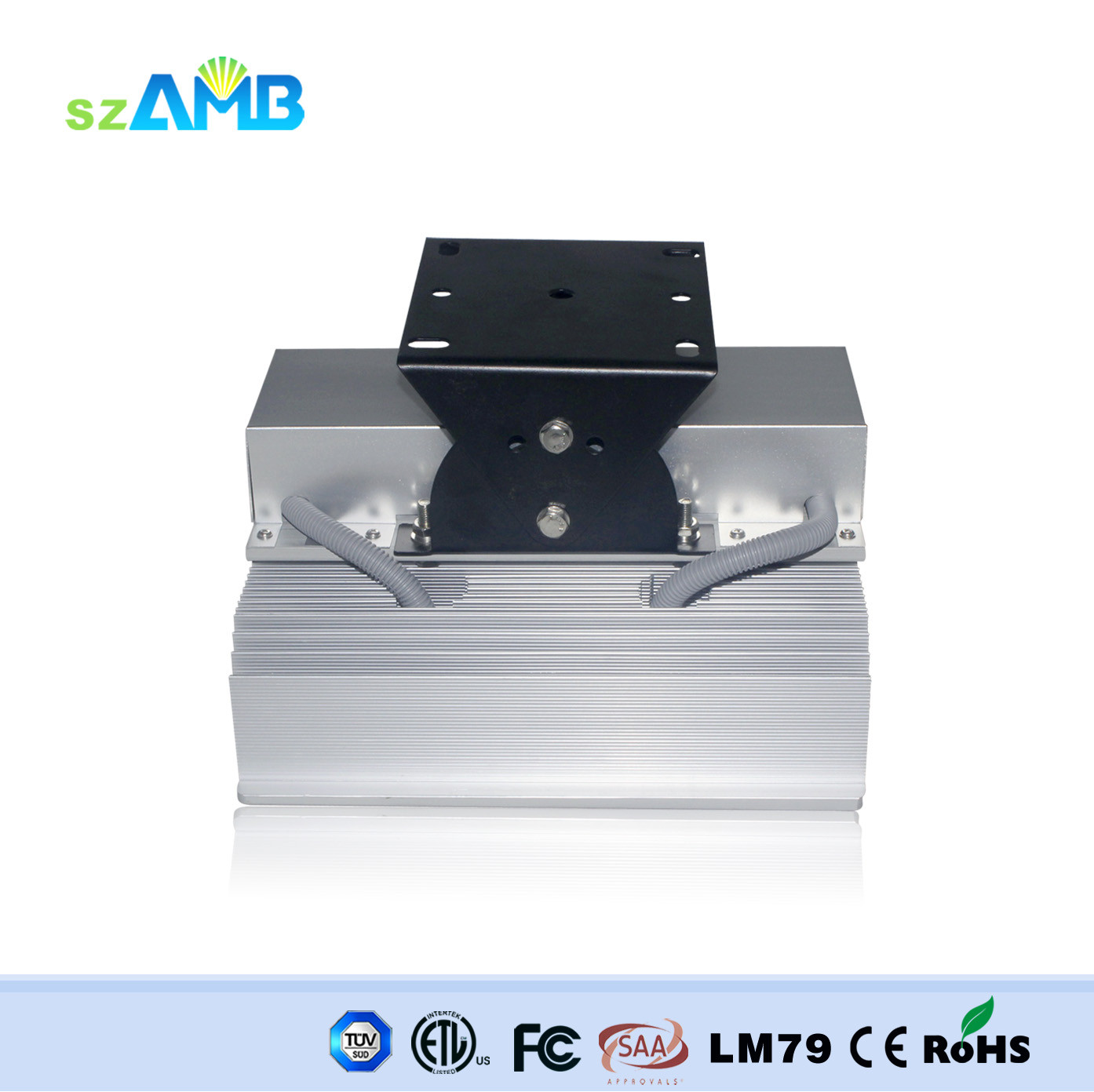

1.High-purity Aluminium reflector, heat sink and hanging hook
2.Aluminium alloy housing
3.Acrylic glass cover
4.High shock& vibration resistant
5.Waterproof and dustproof
6.Constant current & High voltage isolate
7.Low power consumption
8.Export market:North America, South America, Eastern Europe, South
east Asia, Africa, Oceania, Mid East, Eastern Asia, western Europe.
Specifications:
Model |
AMB - NFL - 200w |
LED Type | USA Bridgelux BXCD4545445 - H2 -Z COB integrated light source with 165lumen/w |
Driver | Taiwan Meanwell HLG - 240H -36B dimmable driver |
Power |
200w |
Input Voltage |
AC85-305v 50/60HZ |
Flux |
24000 - 26000lumen |
Power factor |
>0.98 |
Light Efficiency |
120 - 130lumen/w |
Heat sink |
Pure copper endothermic material |
Heat sink2 |
6063 Aluminum heat dissipation |
Operating temperature |
-20℃ - +70℃ |
Operating humidity | 20% - 95% |
Light source |
High power LED |
Beam angle |
60degree, 120degree, 150degree |
Warranty time |
5 years for driver, 7 years for the led chip |
Color Rendering Index |
RA75 - RA90 |
Approves |
TUV. ETL, DLC, LM79,SAA,PSE,CE,RoHS |
IP rate |
IP65 |
Color temperature |
3000K, 4000K, 5500K, 6500K |
Packing |
9.5kg/pcs, 1pcs/Carton 315*285*315mm |
