| Place of Origin: | China |
|---|---|
| Brand Name: | China |
| Certification: | TUV.ETL.DLC.LM79.SAA.PSE.CE.ROHS |
| Model Number: | AMB-NFL-200W |
| Minimum Order Quantity: | 5pcs |
| Packaging Details: | 9.5kg/piece.1piece/Carton 315*285*315mm |
| Delivery Time: | 3-15days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000pcs/month |
| Flux: | 26000-28000lumen | 100W LED Flood Light Efficiency: | 115-120lumen/w |
|---|---|---|---|
| Heat Sink: | Pure Copper Endothermic Material | Heat Sink2: | 6063 Aluminum Heat Dissipation |
| Ip Rate: | Ip65 | Color Temperature: | 3000k.4000k.5500k.6500k |
| Color Rendering Index: | RA75-RA90 | Adjustable Angle: | 60degree,120degree,150degree |
| High Light: | outdooled flood light bulbs,high power led floodlight |
||

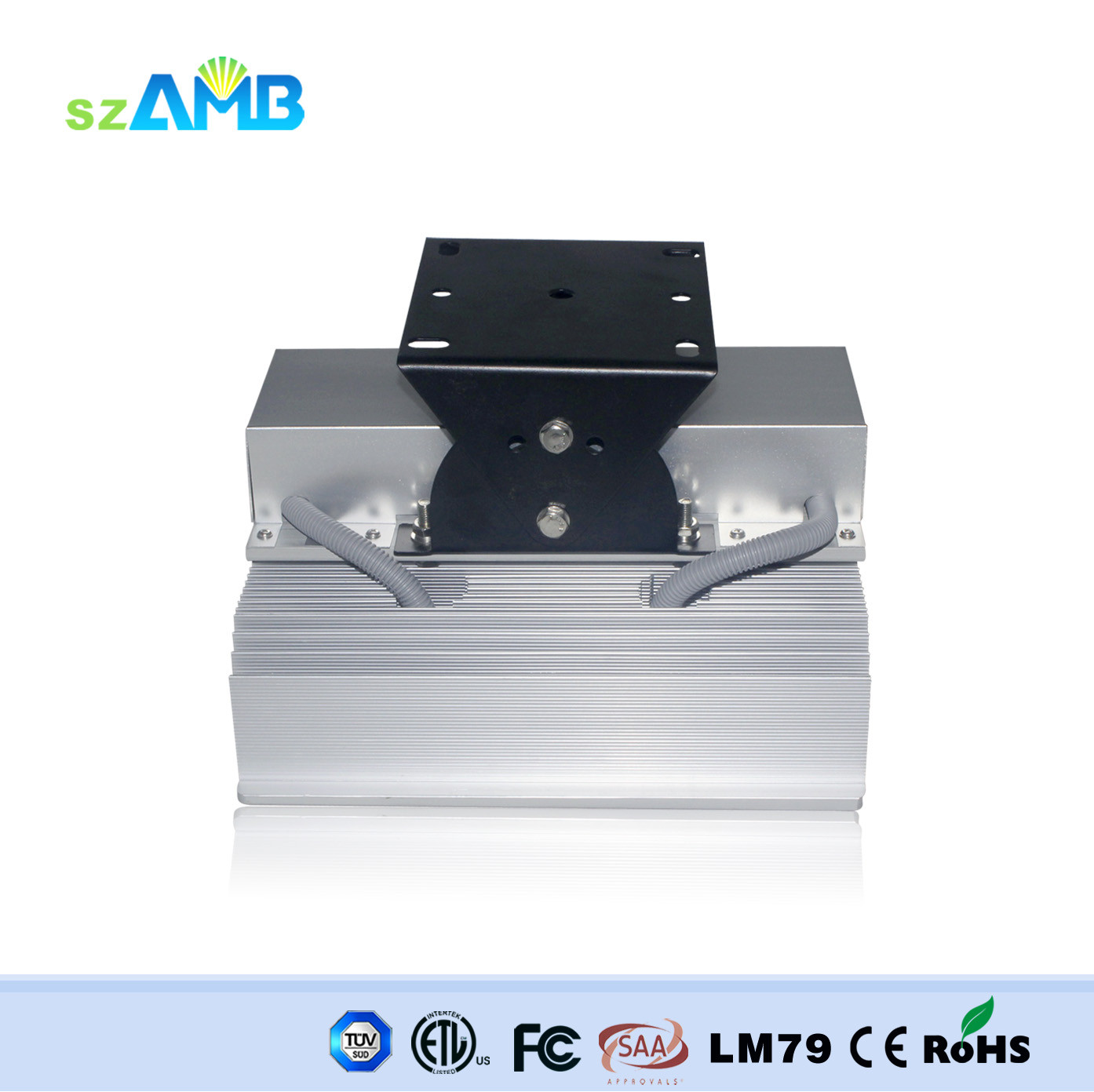

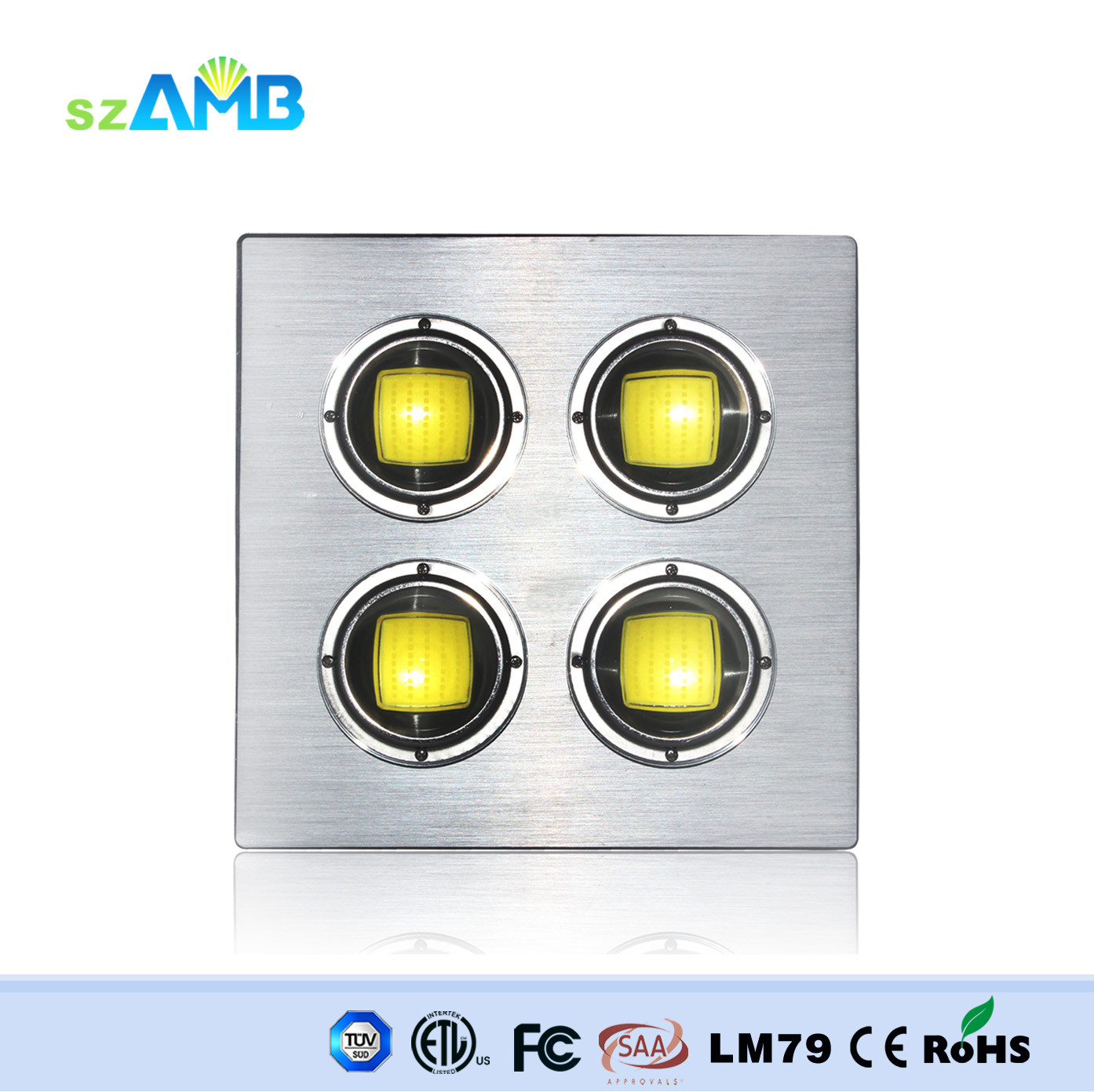

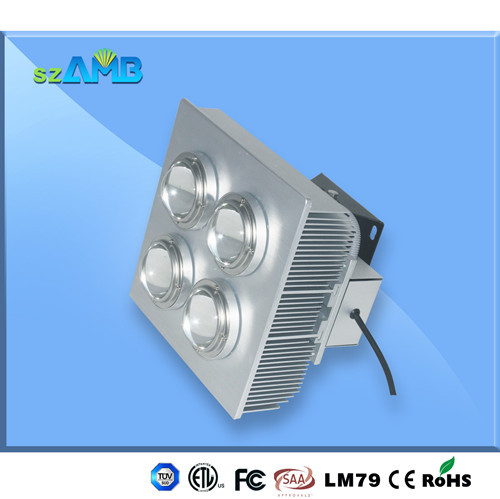

200W IP65 LED Flood Light TUL ETL SAA PSE CE ROHS for Outdoor
Product introduction
As a top professional LED industrial light factory SZAMB specialized in unique LED Flood light.The most popular model is 200W LED Flood light ABAFL-200W which is suitable for 15-32 meters distance projects and can replace 800W High Pressure Sodium Lamp or Metal Halidelight.
Advantages
1. Patent lens makes High lighting efficiency which isup to 140lumen/w(USA Bridgelux chip BXCD4545445-H2-z:165lumen/w)
2. 9.5kg,200w.smart design,good for 10-30meter street pole to Withstand high winds or Square,large parking lot(Normal 200w LED floodlight is more than 20kg)
3. Waterproof & Dustproof(Ip65)
4. Beam angle adjustable 15degree.45degree.60degree,120degree
5. 5years warranty time
6. TUV.ETL.CSALM79.DLC.SAA.CE.PSE.ROHS
7. Dimming function(1-10v)
Specifications
| Model | AMB-NFL-200W |
| LED Type | USA Bridgelux BXCD4545445-H2-Z COB integrated light source with 165 lumen/w |
| Flux | 26000-28000lumen |
| 100w LED Flood light efficiency | 115-120lumen/w |
| Driver | Taiwan Meanwell HLG-240H-36B dimmable driver(making longer life-span by lower its current) |
| Patent lens | Concentrated lighting |
| Heat sink | Pure copper endothermic material |
| Heat sink2 | 6063 aluminum heat disspation |
| Cooling paste | Japan's Shin-Etsu X-23-7762 |
| IP rate | Ip65 |
| Color temperature | 3000k.4000k.5500k.6000k |
| Color rendering index | RA75-RA90 |
| Adjustable Angle | 60degree,120degree,150degree |
| Approves | TUV.ETL.DLC.LM79.SAA.PSE.CE.ROHS |
| Addition Approve | D-Mark Approve |
| Warranty time | 5year+ |
| Packing | 9.5kg/piece.1piece/Carton 315*285*315mm |
| Operating Environment | Temperature:-20'C-+70'C Humidity:20%-95% |
Product size:
