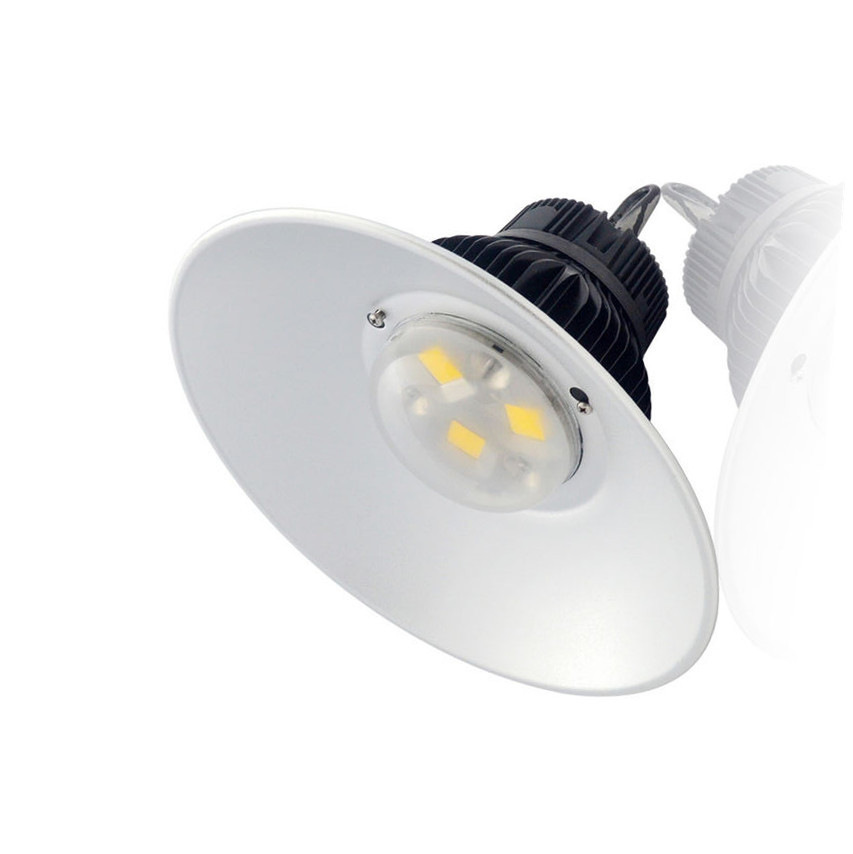

IP 65 Meanwell HBG Led High Bay Fixtures With 5 Yearrs Warranty
12years R&D, SZAMB led high bay has enjoyed high reputation from customers. It has been used in BWM, AUDI, Benz factories, Canada, Thailand exhibition hall, Holland shipyard factory ect. They are 5years warranty time and UL, TUV, SAA, PSE, CE and RoHS certificate.
● Light source: Bridgelux High Power LED
● High performance Meanwell HBG driver with 5 years warranty
● High luminosity and high CRI
● Driver and driver box are designed in one unit , good for heat dissipation
● Small volume and lighter weight , easy for transportation
● Different ways of installation can be provided
● IP 65 , good water-proof performance
Data Sheet:
| Model Number |
AMB-HBG-100W |
| Mercury Lamp Equivalent |
350w Mercury Lamp |
| Total Flux |
9000~10000lm |
| Power Consumption |
100w |
| Light Efficiency |
93lm/w |
| Input Voltage |
85 - 305V/AC |
| Color Temperature |
5500K |
| CRI |
>70 |
| Lifespan |
50,000hrs |
| Warranty |
3~5years |
| Beam Angle |
120° |
| Working Ambient Temperature |
-40~40° |
| IP |
IP54 |
| Weight |
4.2kg |
| Certification |
CE/PSE |
Features:
SZAMB produce best dimmable LED high bay in the world, we are the member of LED Facts(US Department of energy) and Member of the Consortium for US Government rebates, Smart unique LED High Bay with soft lighting.
1.Warranty: 3-5years warranty time, life-span is more than 50,000hrs, 50~300w.
2.Meanwell driver: which is top quality from TaiWan. It has UL, CE, TUV,PSE certificates.
3.Chip: Bridgelux 45mi C0B LED , it has 110-120lumens/w with 3years warranty time. 5years warranty time item is 130-145lumen/w with 60mil Bridgelux led chip.
4. Small volume, easy installation, transportation fee saving, explosion-proof
5.Traditional Mercury Replacement: AMB 80W new led high bay replace 250w mercury lamp, AMB 120W
new led high bay replace 400w mercury lamp, AMB 150W new led high bay replace 750W mercury lamp.
6. Small volume, easy installation, transportation fee saving, explosion-proof
Typical Applications:
● Warehouse Lighting
● Garage Lighting
● Workshop Lighting
● Public Lighting
● Walkway Lighting
● Parking Lot Lighting
