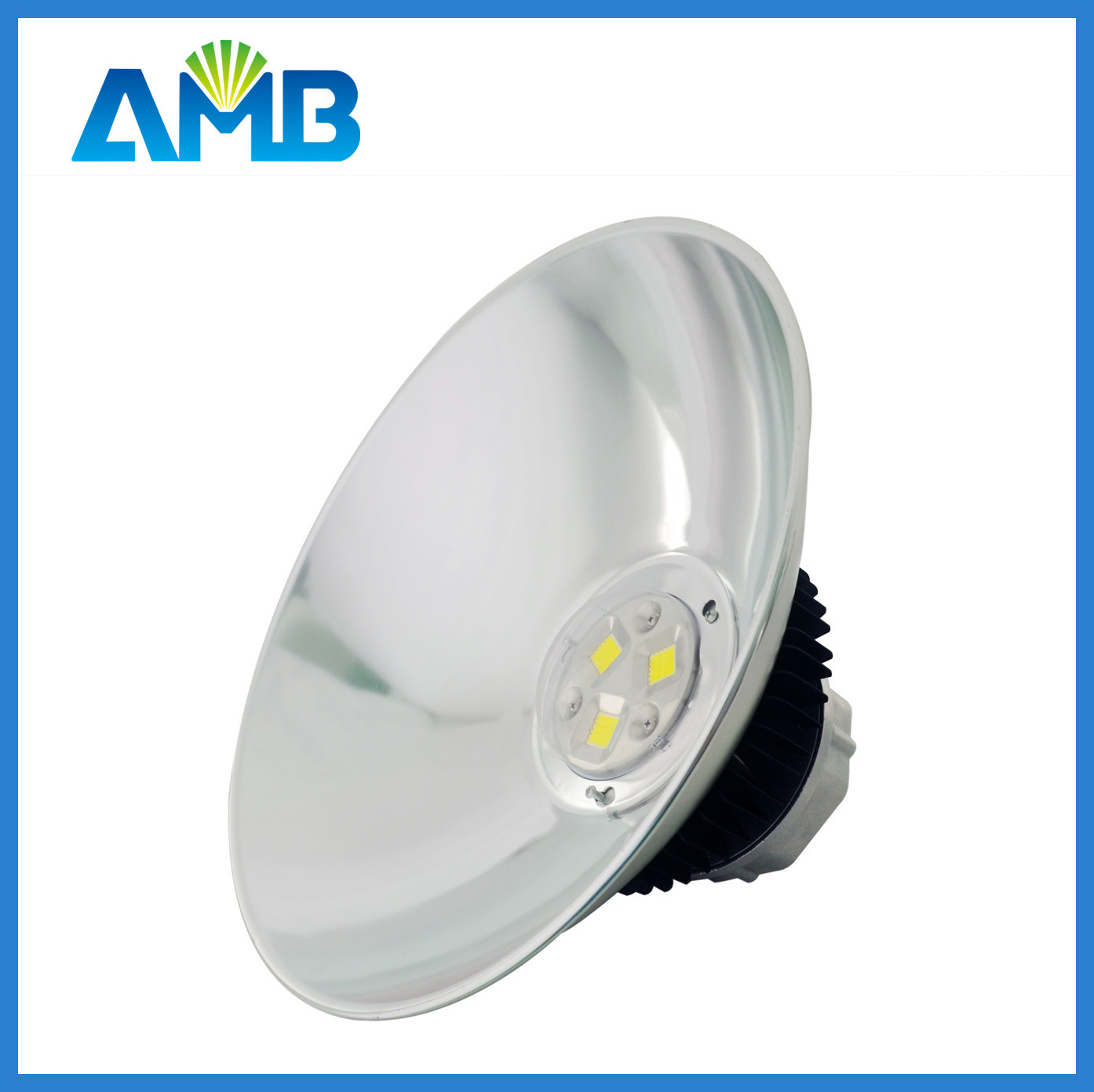

50W AC 85~305V 2700-3200K Warm White IP65 LED High Bay Fixtures With Bridgelux Chip
High Power bridgelux COB LED High Bay is the main products of AMB. We are using top quality and
most brightness 60mil Bridgelux COB LED, our LED high bay is 130~140umen/w ,
as we are using new material structures, it's IP65 and could be used in different applications. besides
we pure copper and Japan patent cooling technology . AMB led high bay become the top one in the world .
50W LED High Bay Specifications:
| Model No. |
AMB-3L-50w |
| Equivalent |
100W High Pressure Sodium Lamp |
| LED Light Source |
3 × 14W Bridgelux 60mil LED |
| LED Luminous Efficiency |
130 lm/w |
| Lamp Total Power |
50W |
| Power Efficiency |
> 95% |
| Lamp Rated Luminous Flux |
> 6300lm |
| Lamp Rated Luminous Efficiency |
> 125lm/W |
| Color Rendering Index(CRI) |
Ra> 75 |
| Color Temperature(Color Temperature) |
Cool white: 6000-6500K |
| Pure white: 5000-5500K |
| Warm white: 2700-3200K |
| Beam Angle |
60 /120 /135 /150 degrees |
| Dimension |
Φ480×360-Φ580×572
|
| Input Voltage |
AC 85~305V, or AC347, or AC385 |
| FrequencyRange |
50/60HZ |
| Power Factor(PF) |
> 0.95 |
| Total Harmonic Distortion(THD) |
< 15% |
| Storage Temperature |
-40--+80 |
| Working Environment |
-40--+50; 10%-95%RH |
| Junction Temperature(Tj) |
60 ± 10%(ta=25) |
| Light Body and Lampshade Material |
Aluminum Alloy and AL glass |
| Working Lifetime |
> 50, 000hrs |
| IP Rating |
IP65
|
High quality LED high bay : 5years warranty time led high bay, AMB offer 50w smart led high bay to 300w powerful led high bay (50w ,80w ,100w .120w .150w .200w .250w .300w )
. Meanwell HLG model driver AC85-AC305V with UL ,PSE.CE.ETL.CSA .SAA RoHS
. Bridegelux BXDC6060 model LED . 60mil Chip Size.140lumen/w .
. Perfect heat sink made COB LED operating temperature is 38 ℃- 52 ℃(ambient temperature is 32 ℃)
Copper pin fin heat sinks + Japan HDT technology+2.277 W/Kg ℃ unique heat sink design are suitable foe extreme cooling needs and for scenarios that require rapid heat spreading , Absolute customization allows for the maximization of heat sink surface area and eliminates bypass air .
|
No.
|
1
|
2
|
3
|
4
|
5
|
|
Model No.
|
AMB-3L-50w
|
AMB-3L-80w
|
AMB-3L-100w
|
AMB-3L-120w
|
AMB-3L-150w
|
|
Power Consumptionb
(W)
|
50
|
80
|
100
|
120
|
150
|
|
LED Initial Flux
(LM)
|
5200
|
8300
|
12000
|
12500
|
14600
|
|
Lamp Flux
(LM)
|
4800
|
7500
|
10400
|
11900
|
13500
|
|
Beam Angle
|
60°/
120°/150°
|
60°/
120°/150°
|
60°/120°/
135°/150°
|
60°/120°
/135°/150°
|
60°/120°/135°/150°
|
|
Input Voltage
(VAC)
|
90-305
|
90-305
|
90-305
|
90-305
|
90-305
|
|
Power Factor
(PF)
|
>0.97
|
>0.97
|
>0.97
|
>0.97
|
>0.97
|
|
Power Efficiency
|
96%
|
93%
|
104%
|
95.8%
|
92%
|
|
Color
|
Warm White
Cool White
|
Warm White
Cool White
|
Warm White
Cool White
|
Warm White
Cool White
|
Warm White
Cool White
|
|
Color Rendering Index
(CRI)
|
Ra75-85
|
Ra75-85
|
Ra75-85
|
Ra75-85
|
Ra75-85
|
|
Working Enviornment
|
Temperature:
-40℃～50℃
Humidity:
10%～90%
|
Temperature:
-40℃～50℃
Humidity:
10%～90%
|
Temperature:
-40℃～50℃
Humidity:
10%～90%
|
Temperature:
-40℃～50℃
Humidity:
10%～90%
|
Temperature:
-40℃～50℃
Humidity:
10%～90%
|
|
Material
|
Aluminum
Copper
PC
|
Aluminum
Copper
PC
|
Aluminum
Copper
PC
|
Aluminum
Copper
PC
|
Aluminum
Copper
PC
|
|
IP Rating
|
IP65
|
IP65
|
IP65
|
IP65
|
IP65
|
|
Working Life
(Hours)
|
>50000
|
>50000
|
>50000
|
>50000
|
>50000
|
|
Product Dimension
(mm)
|
60°:
Φ390×280
120°:
Φ415×356
150°:
Φ580×280
|
60°:
Φ480×525
120°:
Φ580×415
150°:
Φ580×320
|
60°:
Φ480×525
120°:
Φ580×415
150°:
Φ580×320
|
60°:
Φ480×565
120°:
Φ580×455
150°:
Φ580×360
|
60°:
Φ480×565
120°:
Φ580×455
150°:
Φ580×360
|
|
Packing Dimension
(mm)
|
Lamp Body
3kg/unit
2pcs/carton
Reflector:
30pcs/carton
610×290×289
|
Lamp Body
5.5kg/unit
2pcs/carton
Reflector:
30pcs/carton
610×310×429
|
Lamp Body
5.9kg/unit
2pcs/carton
Reflector:
30pcs/carton
610×310×429
|
Lamp Body
7.2kg/unit
2pcs/carton
Reflector:
30pcs/carton
610×310×610
|
Lamp Body
7.5kg/unit
2pcs/carton
Reflector:
30pcs/carton
610×310×610
|
|
Net Weight/
Gross Weight (Kgs)
|
3kg/
3.5kg
|
5.5kg 6kg
|
5.9kg
6.5kg
|
7.2kg
8k
|
7.5kg
8kg
|
Details advantages
Bridgelux 60mil COB chip,5years warranty time
Taiwan meanwell HLG model driver 5years warranty time
Copper cooling system& Japan patent heat sink technology
Smart function: Wifi control +Dimmer function
· Saving electricity up to 75% compared to High Bay
· Safety enhancement with glass-material
· Eco-friendly .No mercury contained
· Anti-global warming by reduction of CO2 emission
· Low temperature maintained by unique heat dissipation mechanism
· Longer Lifetime of 50000~80000 hrs
· Warranty period is 5 years from the date of purchase(Om condition
that operating ambient temperature is 0°C~40°C (32°F~86°F) and use time is 12hours per day)
Comparison of Lifetime:
|
Pictures
|
Products name
|
Life-span compare
|
Cost compare
|
|
|
HID high bay
|
6000hours
|
7 pieces new HID high bay cost,
replacement fee
|
|
|
AMB LED high bay
|
50000-80000hrs
|
5years warranty time
No replacement fee
|
It is applicable to large factory and workshop, office, storehouse, large superstore, supermarket, specialty stores, wholesale market and other places require high power lighting.
Widely used in the hotel, meeting room, offices , hospital , schools , factories , commercial lighting ,
shopping malls, supermarkets, kitchen, diaplay, backlight and so on.
