| Place of Origin: | Shenzhen |
|---|---|
| Brand Name: | AMB |
| Certification: | CE(EMC ,LVD) |

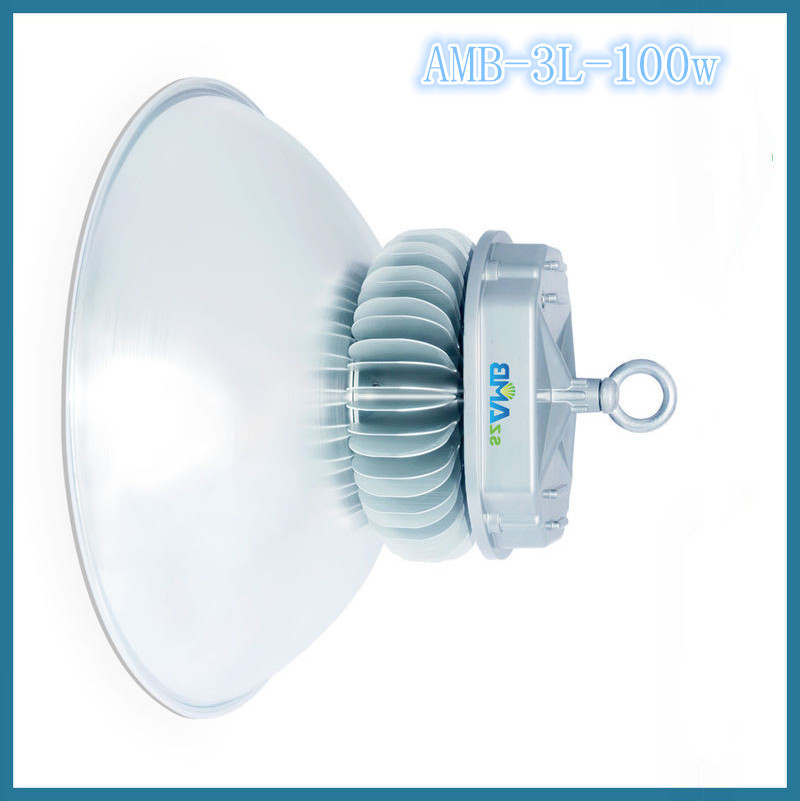

| Model Number: | AMB-3L-100w |
| Minimum Order Quantity: | 10pcs |
| Price: | Negociate |
| Packaging Details: | 2pcs/carton,16.8kg,620*350*350mm |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C , T/T, Western Uion |
| Supply Ability: | 10000pcs/month |
| High Light: | Dimmable LED high bay,high bay led lighting |
||
|---|---|---|---|
1.5years warranty time, longer than most other suppliers.
2. LED driver: We cooperate with Taiwan Meanwell with UL. CSA, CE. SAA. PSE. TUV
3 5years warranty time item is 130-145lumen/w with 60mil Bridgelux led chip.
4.Own cooling system. with our patent system, our LED's working temperature is only 50degrees when ambient temperature is 30-35degrees. much better than most others.
5.Different beam angles. we have 60degrees, 120degrees and 150degrees, it fits our clients different tastes.
|
Parameter |
Description |
|
Power |
100w |
|
Input Voltage |
AC85-305v 50/60HZ |
|
Light efficiency |
>100lm/w |
|
Power factor |
>0.95 |
|
Total harmonic index |
>20% |
|
Flux |
10,000lm |
|
LED lifetime |
5 years |
|
Operation temperature |
-30℃~+50℃ |
|
Light source |
High power LED |
|
Optical Lens |
PMMA/AL Optical Lens |
|
Optical Design |
Special Batwing and Asmmetrical light patterns |
|
Beam Color |
Typical 6000k |
|
Color Rendering Index |
Typical 70 |
|
Housing |
PC |
|
Body weight |
6.5kg |
|
IP rating |
IP 65 |
|
Color temperature |
Ww/dw/pw/cw |
Features:
● Light source: Bridgelux High Power LED
● Low power consumption
● High luminosity and long life time
● Environmentally friendly
● Excellent opto-electronic performance
● Optimized heat fins for natural convection
● High-efficiency cooling system
● High-efficiency LED power driver
● High light transmission PC protection cover
Typical Applications:
● Warehouse Lighting
● Garage Lighting
● Workshop Lighting
● Public Lighting
● Parking Lot Lighting
● Walkway Lighting
● Other open spaces lighting
