| Place of Origin: | Shenzhen |
|---|---|
| Brand Name: | AMB |
| Certification: | CE ect. |
| Model Number: | AMB-3L-100W |
| Minimum Order Quantity: | 2pcs |
| Price: | Negotiable |
| Packaging Details: | 2boxes/carton 615*315*315mm |
| Delivery Time: | 3days for samples, 7~15days for large quantity |
| Payment Terms: | TT, Western Union, L/C |
| Supply Ability: | 10,000pcs per month |
| Color Choices: | Black/Silver | Flux: | 120-130lumen/w |
|---|---|---|---|
| Driver: | Taiwan Meanwell HLG-150H-26B Dimmable Driver | Heat Sink: | Pure Copper Endothermic Material |
| Heat Sink 2: | 6063 Aluminum Heat Dissipation | Cooling Paste: | Japan's Shin-Etsu X-23-7762 |
| IP Rate: | Ip 65 | Color Temperature: | 3000k 4000k 5500k 6500k |
| Adjustable Angle: | 60degree 120degree 150degree | Addition Approve: | D-Mark Approve |
| Waranty Time: | 5 Years+ | Operating Environment: | Temperature:-20℃-+70℃ Humidity:20%-95% |
| High Light: | low energy high bay lighting,led high bay lamps |
||

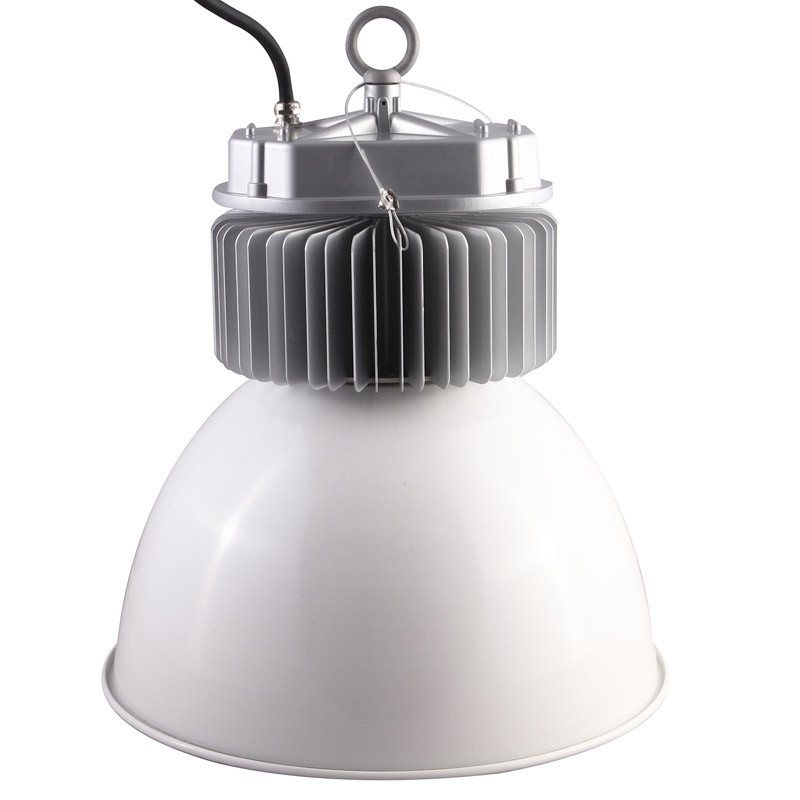

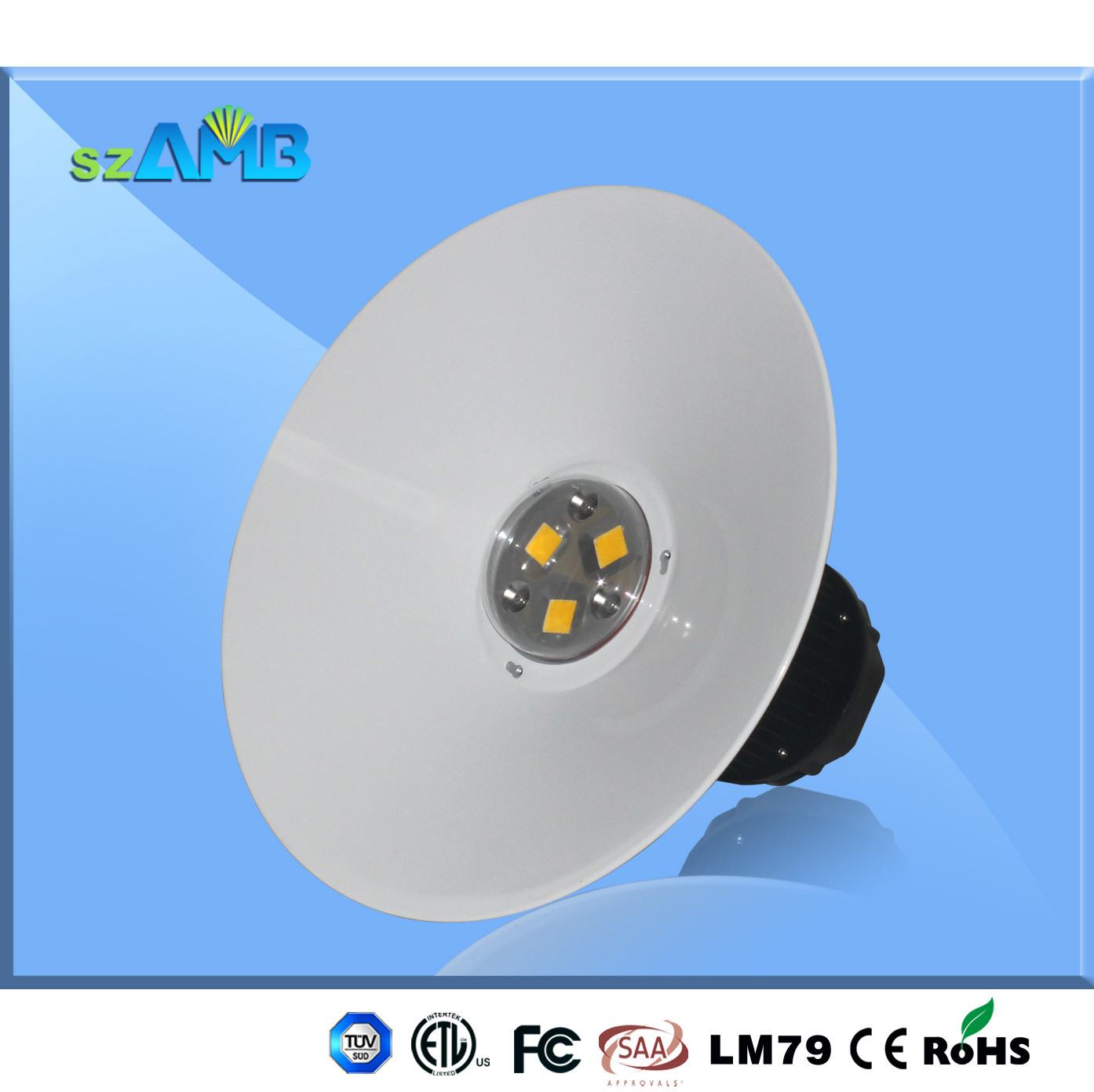

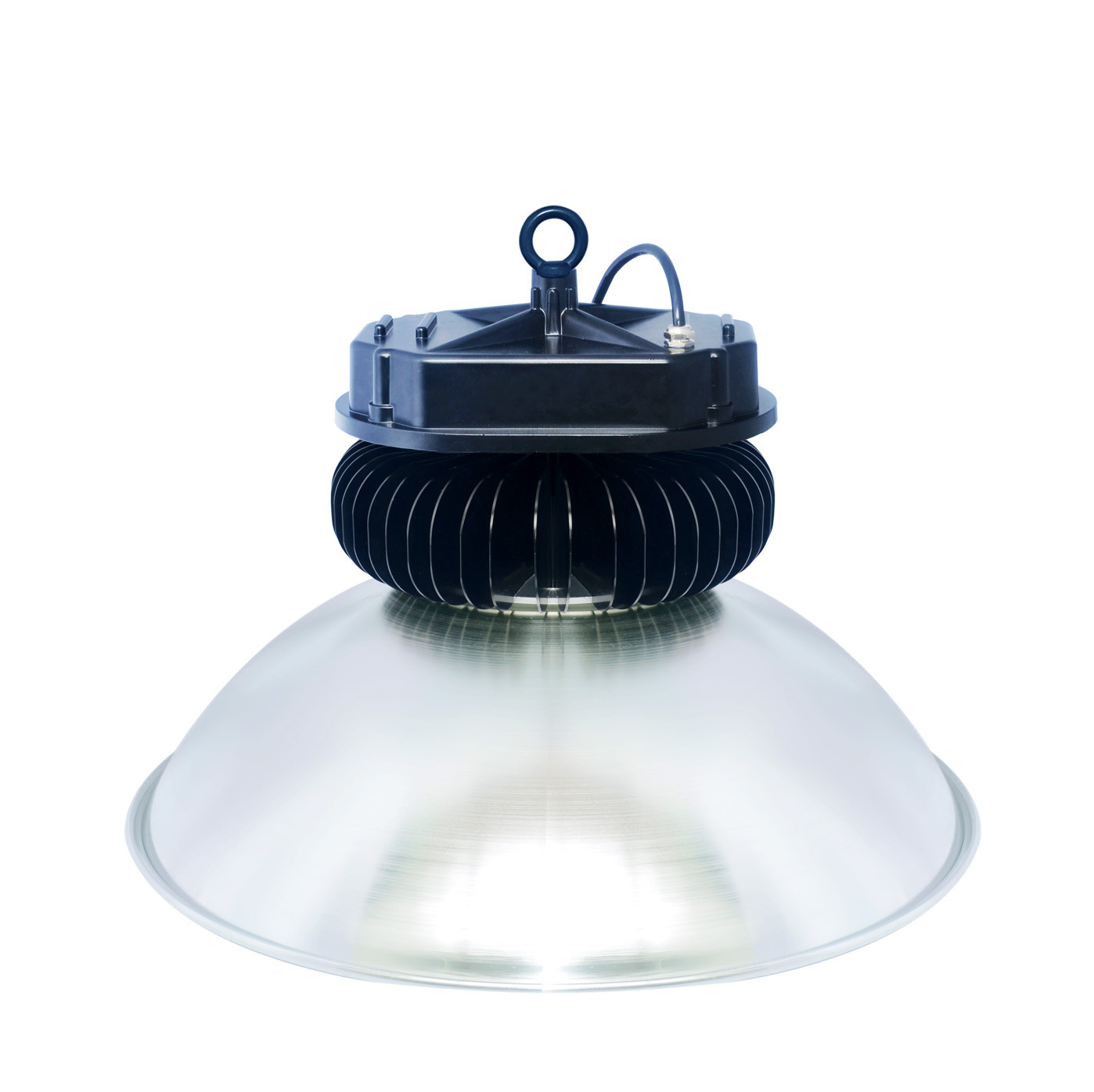

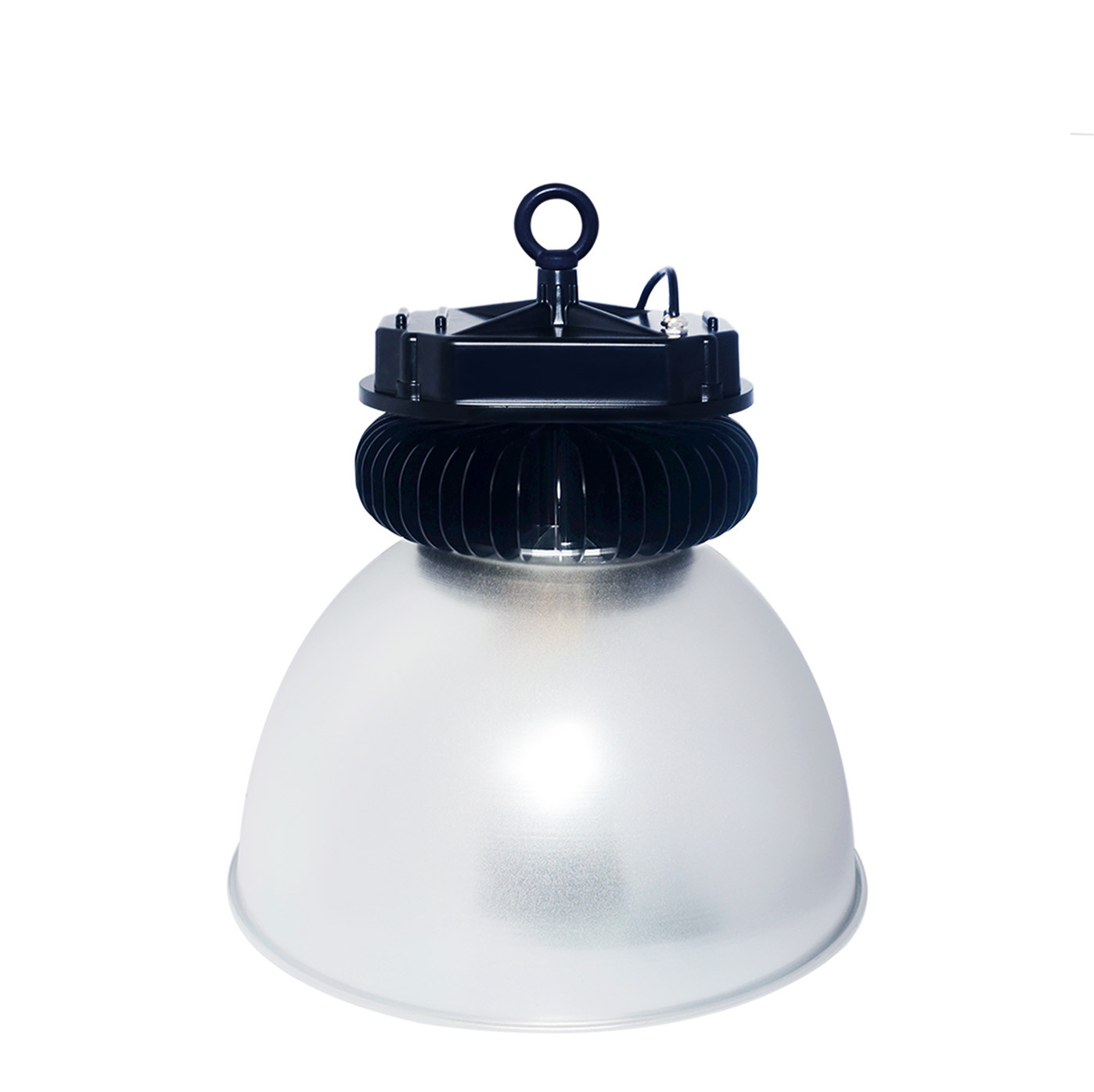

100Watt UL Certificated High Bay Led Lights With Bridgelux led, Meanwell Driver
Product introduction
SZAMB 5 years warranty time LED high bay are Environment - friendly, no air pollution, no lead - free, no
mercury.Apply for unique surface treatment technology, well -decorated, novel style, easy to install,lower
maintenance cost and wide in warehouse,workshop,gas station,supermarkets exhibition halls,gymnasiums
and some other places where need industrial lighting.
AMB led high bay advantages:
| Model No. | AMB-3L-100w |
| LED Type: | USA Bridgelux BXCD4545445 - H2 -zCOB integrated light source with 165lumen/w |
| Flux | 12000-13000lumen |
| 50w LED high bay lighting efficieny | 120 - 130lumen/w |
| Lamp Total Power | 100W |
| Power efficiency | > 90% |
| IP rate | Ip65 |
| Color temperature | 3000k.4000k.5500k.6500k |
| Color Rendering Index(CRI) | RA75 - RA90 |
| Adjustable Angle | 60 degrees or 120 degrees or 150 degrees |
| Approves | TUV. ETL. DLC. LM98. SAA. PSE. CE. RoHS |
| Input Voltage | AC90v - 240v or AC90 - 305v or AC347v 50/60HZ |
| FrequencyRange | 50/60HZ |
| Warranty time | 5 years+ |
| Net Weight | 5.56kg/PCS |
| Gross Weight | 12.6kg/PCS |
| Operating Environment | Temperature:-20℃ - +70℃ Humidity:20% - 95% |
| Packing | 5.5kg/PCS. 1PCS/box. 2boxes/Carton. 12kg/Carton |
| Carton Size(mm) |
1PCS/ inner Box: 295mm*295mm 2inner Box/Carton: 615mm*315mm*315mm |
Application:
It is applicable to large factory and workshop, office, storehouse, large superstore, supermarket, specialty store, wholesale market and other places require high power lighting.
