Detail Information

Color:	Black/silver	Flux:	18000-19500lumen
IP Rate:	IP65	Color Temperature:	3000k,4000k,5500k,6500k
Color Rendering Index:	RA75-RA90	Adjustable Angle:	60degree,120degree,150degree
Highlight:	low energy high bay lighting , led high bay lamps

Product Description

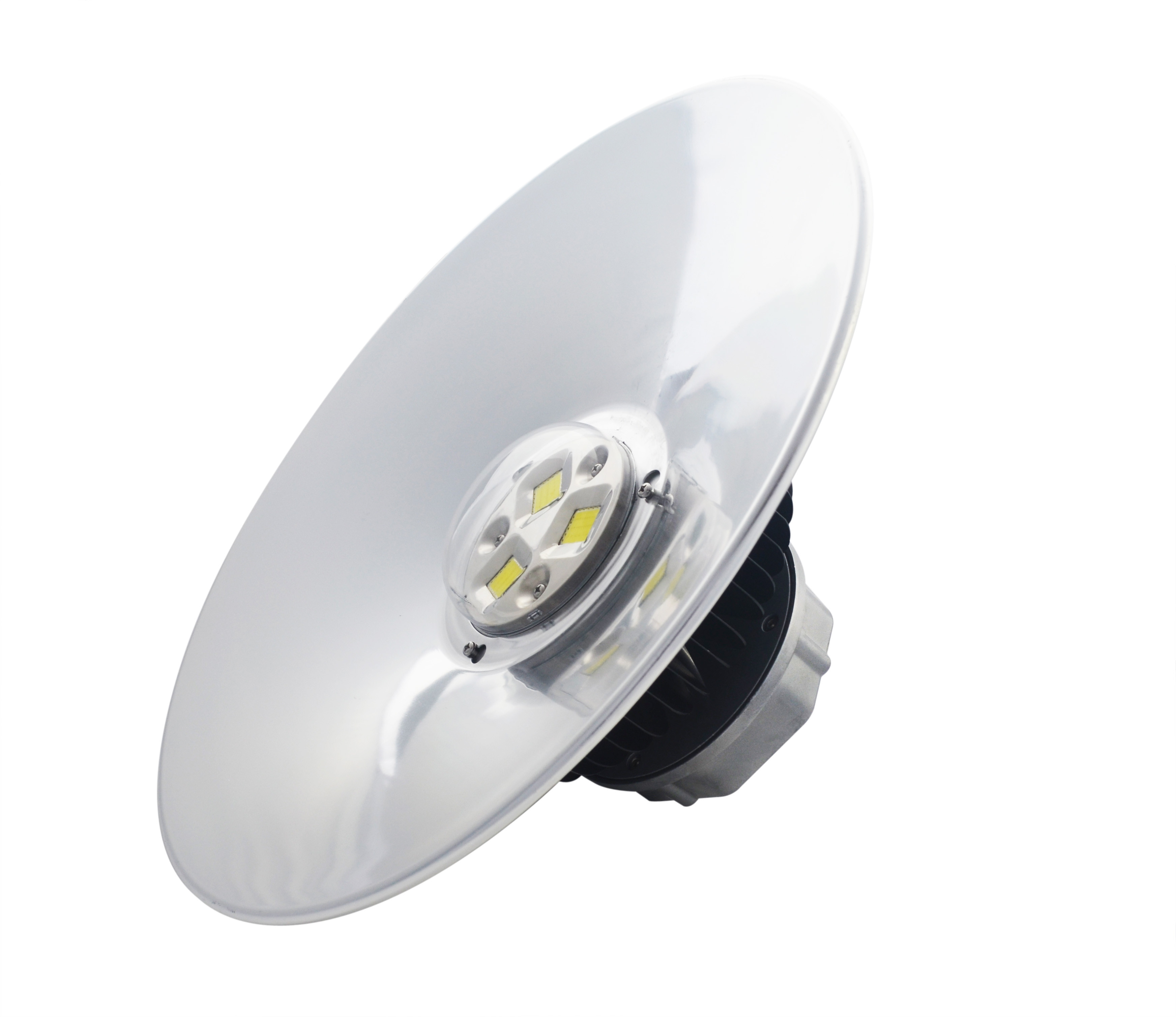

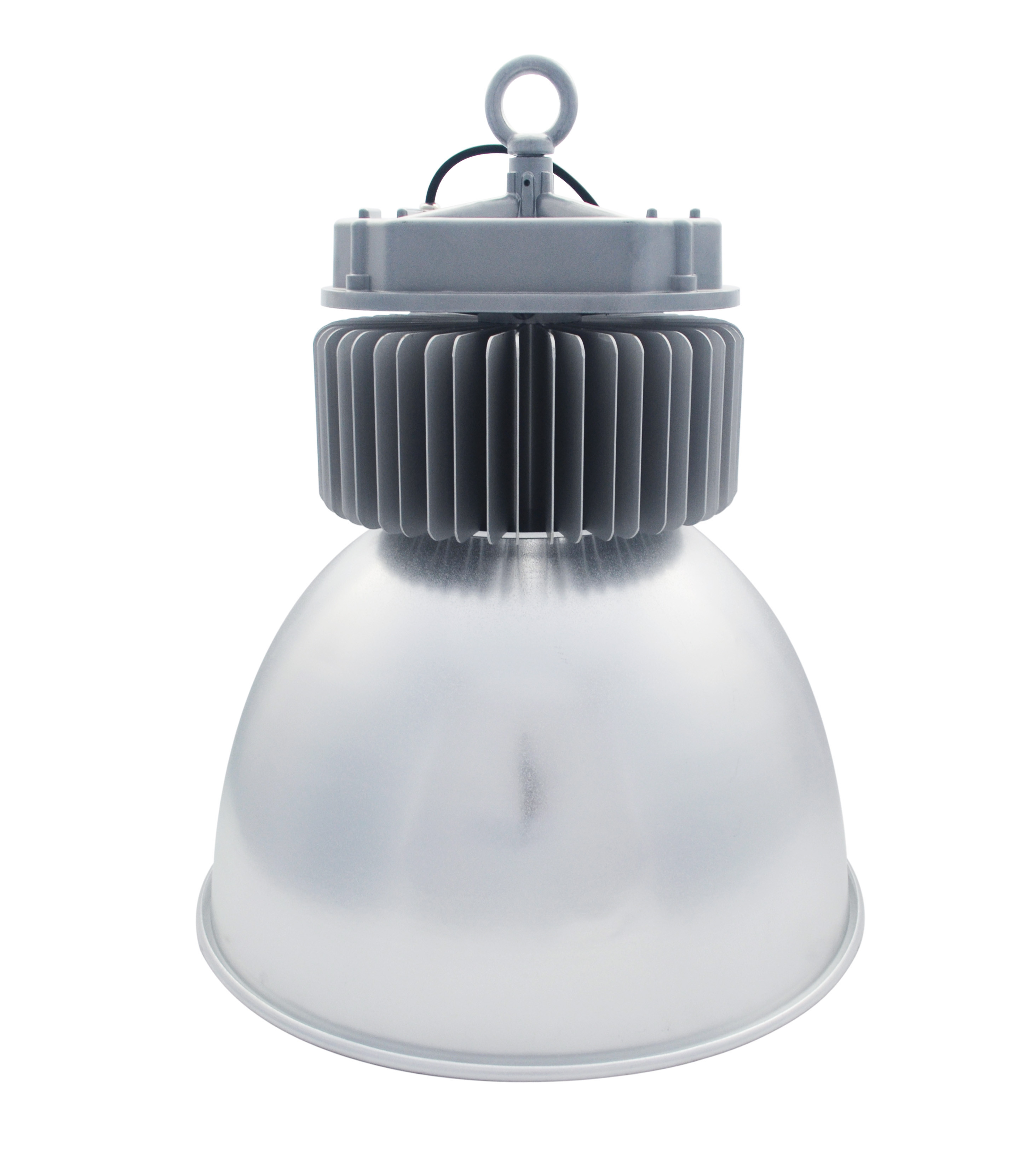

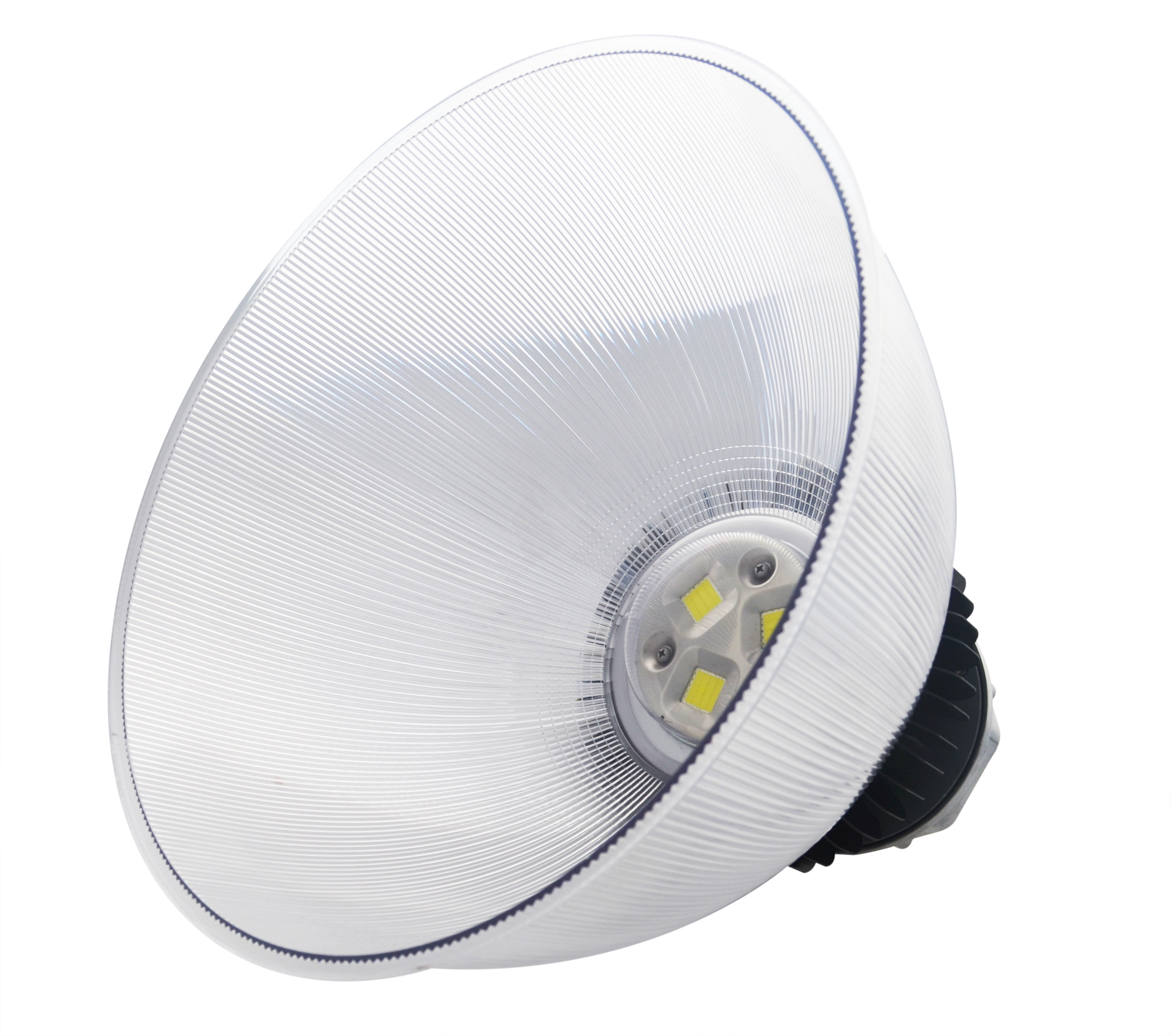

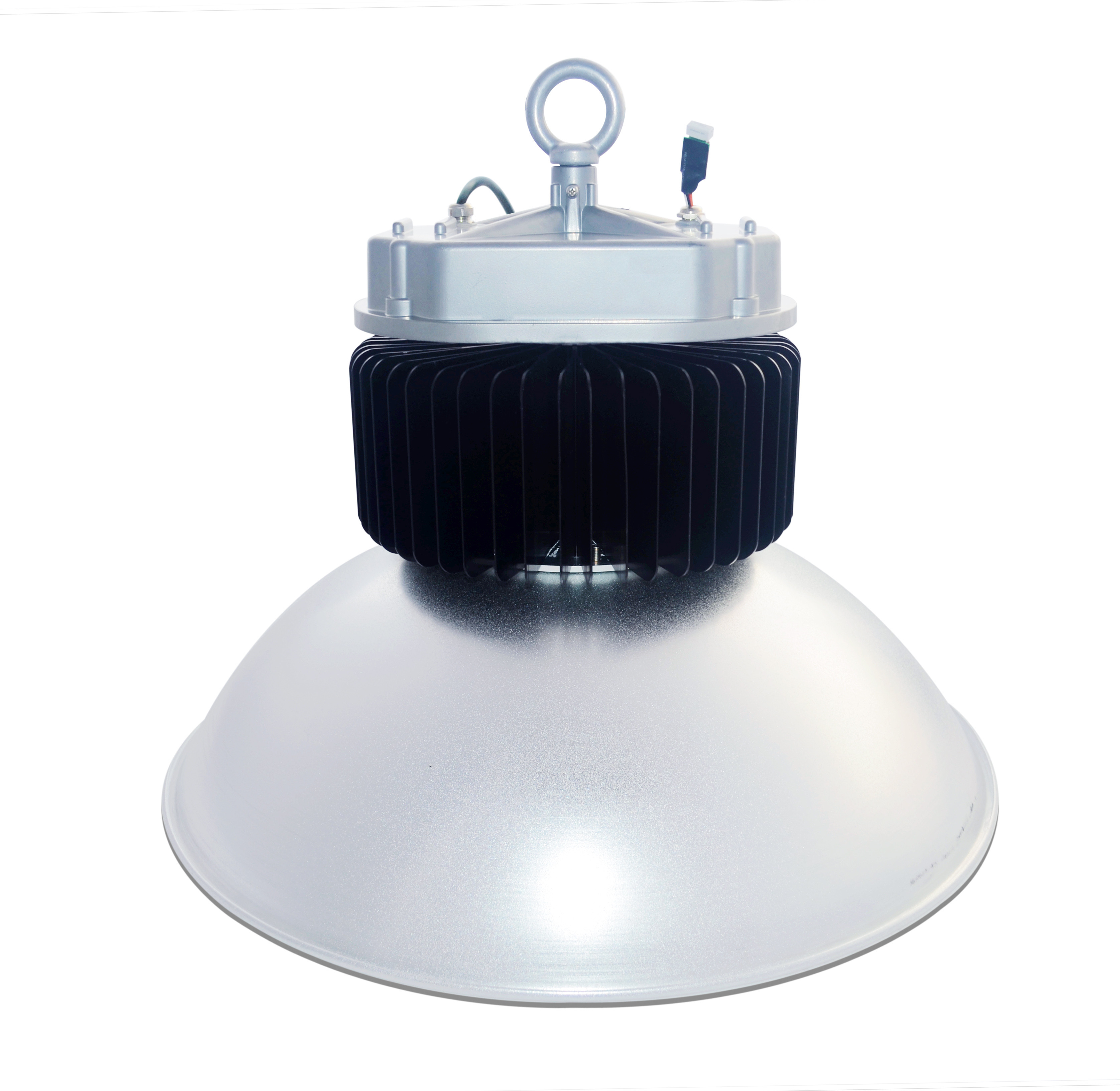

Aluminum Black / Silver Led High Bay Lamps 150W Bridgelux 18000lm

Why choose our AMB led high bay ?

1. AMB Adopts 60mil Bridgelux chip,with 5 years warranty time.
2. High efficency and Taiwan Meanwell HLG driver.
3. Patent copper cooling system, with heat dissipation design solve the heat problem 100%.
4. Long life-span more than 5000hrs,tested in 34degree workshop,our led high bay working temperature is only 48degree

Detail:

Model No.	AMB-3L-150w
Equivalent	600W High Pressure Sodium Lamp
LED Light Source	3 × 50W Bridgelux 60mil LED
LED Luminous Efficiency	125 lm/w
Power	150W
Power Efficiency	> 95%
Lamp Rated Luminous Flux	> 18, 000lm
Color Rendering Index(CRI)	Ra> 75
Color Temperature(Color Temperature)	Cool white: 6000-6500K
	Pure white: 5000-5500K
	Warm white: 2700-3200K
Beam Angle	60 degrees or 120 degrees or 150 degrees
Light Distribution/Beam Pattern	Round Beam
Input Voltage	AC 95-265V; DC 30-36V
FrequencyRange	50/60HZ
Power Factor(PF)	> 0.95
Total Harmonic Distortion(THD)	< 15%
Storage Temperature	-40--+80
Working Environment	-40--+50; 10%-95%RH
Junction Temperature(Tj)	60 ± 10%(ta=25)
Light Body and Lampshade Material	Aluminum Alloy and AL glass
Working Lifetime	> 50, 000hrs
IP Rating	IP65

Detail More:
This LED high bay light (is our hot sell product and they are very popular in oversea market. Perect performance as belows:
Our warranty time is 5 years: ( Bridgelux 60mil Chip. 160lumen/w )
Input voltage: AC95-AC305V
Viewing Angle: 150 degree /120 degree/ 60 degree
Color: Warm white/ pure white/cold white
Luminous Flux: 18,000lumen
Dustproof function.

Highbay range

50w-300w LED High Bay Light

Application:

It is applicable to large factory and workshop, office, storehouse, large superstore, supermarket, specialty stores, wholesale market and other places require high power lighting.



Aluminum Black / Silver Led High Bay Lamps 150W Bridgelux 18000lm


Application:

Installation:

Tag:

Certification:	TUL/ETL/DLC/ LM79/SAA/ PSE/CE/ROHS
Model Number:	AMB-3L-150W

Minimum Order Quantity:	2pcs
Price:	Negotiable
Packaging Details:	2pcs/carton
Delivery Time:	7days for samples, 30days for bulk order
Payment Terms:	TT, Western Union, L/C
Supply Ability:	10,000pcs per month
