| Place of Origin: | Shenzhen |
|---|---|
| Brand Name: | AMB |
| Certification: | CE/ CSA/ SAA/ETL/ UL(Pending）. |
| Model Number: | AMB-3L-150W |
| Minimum Order Quantity: | 2pcs |
| Price: | Negotiate |
| Packaging Details: | 2pcs/carton |
| Delivery Time: | 3days for samples, 7~15days for large quantity |
| Payment Terms: | TT, Western Union, L/C |
| Supply Ability: | 5000pcs per month |
| High Light: | Dimmable LED high bay,high bay led lighting |
||
|---|---|---|---|

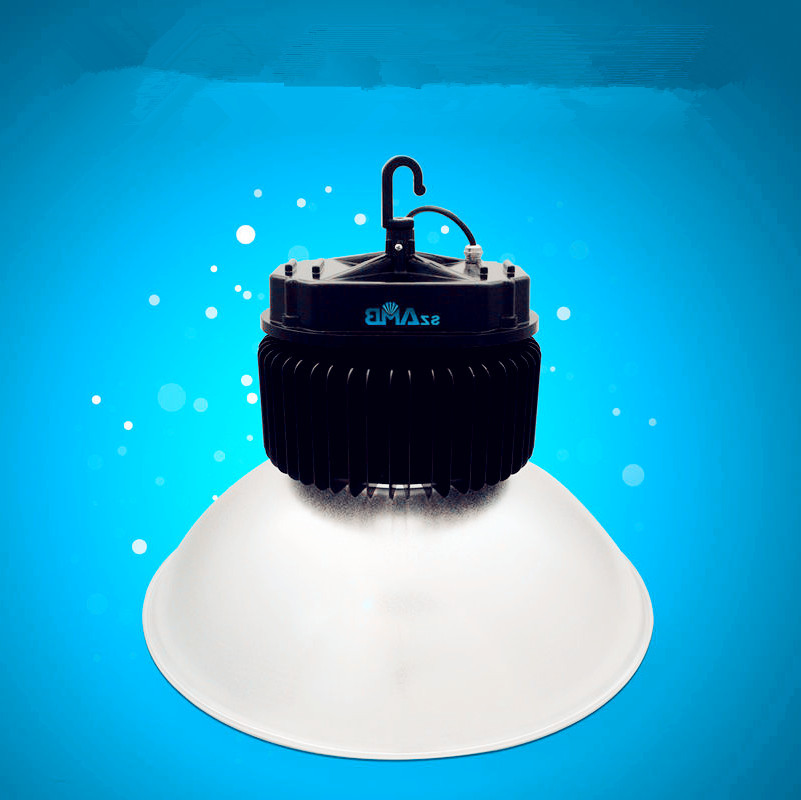

High Power bridgelux COB LED High Bay is the main products of AMB. We are using top quality and
most brightness 45mil Bridgelux COB LED, our LED high bay is 120~135 umen/w , as we are using
new material structures, it's IP65 and could be used in different applications. besides we pure copper
and Japan patent cooling technology . AMB led high bay become the top one in the world .
150W LED High Bay Specifications:
|
Model No. |
AMB-3L-150w |
|
Equivalent |
400W High Pressure Sodium Lamp |
|
LED Light Source |
3 × 45W Bridgelux 60mil LED |
|
LED Luminous Efficiency |
120 lm/w |
|
Lamp Total Power |
150W |
|
Power Efficiency |
> 95% |
|
Lamp Rated Luminous Flux |
> 16, 500lm |
|
Lamp Rated Luminous Efficiency |
> 110lm/W |
|
Color Rendering Index(CRI) |
Ra> 75 |
|
Color Temperature(Color Temperature) |
Cool white: 6000-6500K |
|
Pure white: 5000-5500K |
|
|
Warm white: 2700-3200K |
|
|
Beam Angle |
60 /120 /135 /150 degrees |
|
Dimension |
Φ480×360-Φ580×572 |
|
Input Voltage |
AC 85~305V, or AC347, or AC385 |
|
FrequencyRange |
50/60HZ |
|
Power Factor(PF) |
> 0.95 |
|
Total Harmonic Distortion(THD) |
< 15% |
|
Storage Temperature |
-40--+80 |
|
Working Environment |
-40--+50; 10%-95%RH |
|
Junction Temperature(Tj) |
60 ± 10%(ta=25) |
|
Light Body and Lampshade Material |
Aluminum Alloy and AL glass |
|
Working Lifetime |
> 50, 000hrs |
|
IP Rating |
IP65 |
High quality LED high bay : 3years warranty time led high bay, AMB offer 50w smart led high bay to 300w powerful led high bay (50w ,80w ,100w .120w .150w .200w .250w .300w )
. Meanwell HLG model driver AC85-AC305V with UL ,PSE.CE.ETL.CSA .SAA RoHS
. Bridegelux BXDC6060 model LED . 60mil Chip Size.140lumen/w .
. Perfect heat sink made COB LED operating temperature is 38 ℃- 52 ℃(ambient temperature is 32 ℃)
Copper pin fin heat sinks + Japan HDT technology+2.277 W/Kg ℃ unique heat sink design are suitable foe extreme cooling needs and for scenarios that require rapid heat spreading , Absolute customization allows for the maximization of heat sink surface area and eliminates bypass air .
|
No. |
1 |
2 |
3 |
4 |
5 |
|
Model No. |
AMB-3L-50w |
AMB-3L-80w |
AMB-3L-100w |
AMB-3L-120w |
AMB-3L-150w |
|
Power |
50 |
80 |
100 |
120 |
150 |
|
LED Initial Flux |
5200 |
8300 |
12000 |
12500 |
14600 |
|
Lamp Flux |
4800 |
7500 |
10400 |
11900 |
13500 |
|
Beam Angle |
60°/120° |
60°/120° |
60°/120°/ |
60°/120°/ |
60°/120°/ |
|
Input Voltage |
90-305 |
90-305 |
90-305 |
90-305 |
90-305 |
|
Power Factor |
>0.97 |
>0.97 |
>0.97 |
>0.97 |
>0.97 |
|
Power Efficiency |
96% |
93% |
104% |
95.8% |
92% |
|
Color |
Warm White |
Warm White |
Warm White |
Warm White |
Warm White |
|
Color Rendering |
Ra75-85 |
Ra75-85 |
Ra75-85 |
Ra75-85 |
Ra75-85 |
|
Working |
Temperature: |
Temperature: |
Temperature: |
Temperature: |
Temperature: |
|
Material |
Aluminum PC |
Aluminum PC |
Aluminum PC |
Aluminum PC |
Aluminum PC |
|
IP Rating |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
|
Working Life |
>50000 |
>50000 |
>50000 |
>50000 |
>50000 |
|
Product |
60°: 150°: |
60°: 150°: |
60°: 150°: |
60°: 150°: |
60°: 150°: |
|
Packing |
Lamp Body 2pcs/carton |
Lamp Body 2pcs/carton |
Lamp Body 2pcs/carton |
Lamp Body 2pcs/carton |
Lamp Body 2pcs/carton |
|
Net Weight/ |
3kg/ 3.5kg |
5.5kg 6kg |
5.9kg 6.5kg |
7.2kg 8k |
7.5kg 8kg |
Details advantages
Bridgelux 60mil COB chip,5years warranty time
Taiwan meanwell HLG model driver 5years warranty time
Copper cooling system& Japan patent heat sink technology
Smart function: Wifi control +Dimmer function
· Saving electricity up to 75% compared to High Bay
· Safety enhancement with glass-material
· Eco-friendly .No mercury contained
· Anti-global warming by reduction of CO2 emission
· Low temperature maintained by unique heat dissipation mechanism
· Longer Lifetime of 50000~80000 hrs
· Warranty period is 5 years from the date of purchase(Om condition
that operating ambient temperature is 0°C~40°C (32°F~86°F) and use time is 12hours per day)Application:
150W AMB LED high bay LUX Diagram:
It is applicable to large factory and workshop, office, storehouse, large superstore, supermarket, specialty stores, wholesale market and other places require high power lighting.
Widely used in the hotel, meeting room, offices , hospital , schools , factories , commercial lighting ,
shopping malls, supermarkets, kitchen, diaplay, backlight and so on.
