| Place of Origin: | Shenzhen |
|---|---|
| Brand Name: | AMB |
| Certification: | CE/ CSA/ SAA/ETL/ UL(Pending）. |
| Model Number: | AMB-3L-100W |
| Minimum Order Quantity: | 2pcs |
| Price: | Negotiate |
| Packaging Details: | 2pcs/carton |
| Delivery Time: | 3days for samples, 7~15days for large quantity |
| Payment Terms: | TT, Western Union, L/C |
| Supply Ability: | 5000pcs per month |
| High Light: | led high bay lamps,high bay led lighting |
||
|---|---|---|---|

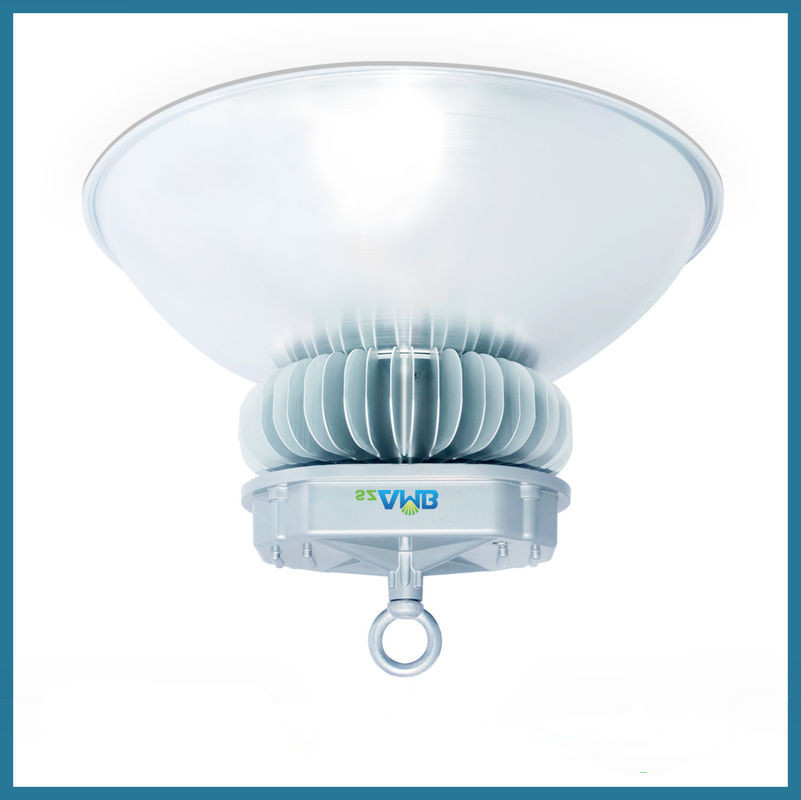

High Power bridgelux COB LED High Bay is the main products of AMB. We are using top quality and
most brightness 45mil Bridgelux COB LED, our LED high bay is 115~120umen/w , as we are using
new material structures, it's IP65 and could be used in different applications. besides we pure copper
and Japan patent cooling technology . AMB led high bay become the top one in the world .
100W LED High Bay Specifications:
| Model No. | AMB-3L-100w |
| Equivalent | 250W High Pressure Sodium Lamp |
| LED Light Source | 3 × 30W Bridgelux 60mil LED |
| LED Luminous Efficiency | 120 lm/w |
| Lamp Total Power | 100W |
| Power Efficiency | > 95% |
| Lamp Rated Luminous Flux | > 11, 500lm |
| Lamp Rated Luminous Efficiency | > 110lm/W |
| Color Rendering Index(CRI) | Ra> 75 |
| Color Temperature(Color Temperature) | Cool white: 6000-6500K |
| Pure white: 5000-5500K | |
| Warm white: 2700-3200K | |
| Beam Angle | 60 /120 /135 /150 degrees |
| Dimension |
Φ480×360-Φ580×572 |
| Input Voltage | AC 85~305V, or AC347, or AC385 |
| FrequencyRange | 50/60HZ |
| Power Factor(PF) | > 0.95 |
| Total Harmonic Distortion(THD) | < 15% |
| Storage Temperature | -40--+80 |
| Working Environment | -40--+50; 10%-95%RH |
| Junction Temperature(Tj) | 60 ± 10%(ta=25) |
| Light Body and Lampshade Material | Aluminum Alloy and AL glass |
| Working Lifetime | > 50, 000hrs |
| IP Rating |
IP65 |
High quality LED high bay : 3years warranty time led high bay, AMB offer 50w smart led high bay to 300w powerful led high bay (50w ,80w ,100w .120w .150w .200w .250w .300w )
. Meanwell HLG model driver AC85-AC305V with UL ,PSE.CE.ETL.CSA .SAA RoHS
. Bridegelux BXCE4545 model LED . 45mil Chip Size.115lumen/w .
. Perfect heat sink made COB LED operating temperature is 38 ℃- 52 ℃(ambient temperature is 32 ℃)
Copper pin fin heat sinks + Japan HDT technology+2.277 W/Kg ℃ unique heat sink design are suitable foe extreme cooling needs and for scenarios that require rapid heat spreading , Absolute customization allows for the maximization of heat sink surface area and eliminates bypass air .
Details advantages
1.Warranty: 3-5years warranty time, life-span is more than 50,000hrs, 50~300w.
2.Meanwell driver: which is top quality from TaiWan. It has UL, CE, TUV,PSE certificates.
3.Chip: Bridgelux 45mi C0B LED , it has 110-120lumens/w with 3years warranty time. 5years warranty time item is 130-145lumen/w with 60mil Bridgelux led chip.
4.Own cooling system: with our patent system, our LED's working temperature is only 50degrees when ambient temperature is 30-35degrees (for 150w).
5.Different beam angles: we have 60degrees, 120degrees, 135degrees and 150degrees, it fits our clients different tastes.
6.Traditional MHL Replacement: AMB 80W/100W led high bay replace 250w MHL, AMB 150W led high bay replace 400w NHL, AMB 250W/300W led high bay replace 1000W MHL.LED High Bay Appearance Design:
