| Place of Origin: | Shenzhen |
|---|---|
| Brand Name: | AMB |
| Certification: | TUV / ETL / DLC / CE / RoHS / SAA |
| Model Number: | AMB-3L-180W |
| Minimum Order Quantity: | 2pcs |
| Price: | Negotiable |
| Packaging Details: | 2pcs/carton |
| Delivery Time: | 7days for samples, 30days for large quantity |
| Payment Terms: | TT, Western Union, L/C |
| Supply Ability: | 10,000pcs per month |
| LED Light Source: | 3 × 54W Bridgelux 60mil LED | LED Luminous Efficiency: | 130 Lm/w |
|---|---|---|---|
| Power: | 180W | Frequency Range: | 50/60HZ |
| High Light: | high bay led lights,led high bay lamps |
||
Quick Description :
1. UL ,DLC , ETL , CE , ROHS, FCC, SAA certificated
2..Meanwell driver and Bridgelux chip
3. High efficiency > 120 lumen /w
4. High CRI > 80
5. Five years warranty with more than 8000 hrs long life span
6. Good after sales service
AMB LED High Bay Advantages:
Driver: For 5years warranty time led high bay, we used Meanwell HLG model driver which is the best driver from Meanwell company, meanwhile, Meanwell Company guarantee 5years;
Heat Sink: The material of AMB led high bay heat dissipation are copper, not like other supplier who is used Aluminum heat sink. Please check AMB 150W LED high bay working temperature test report. The temperature of LED is lower, the life-span of led high bay are longer, AMB led high bay can work more than 50,000hrs.
Our AMB 180W high bay is the best highbay supplier, with super brightness, full watts range, full color range with different angle for all projects, We guarantee 7years warranty time for CHIP, 5years warranty time for PSU. We guarantee it will be at less 90% brightness within 3years. As it is IP65, both outdoor and indoor allowed. And, we are the only one LED high bay factory who invited by LED next stage fair in Japan in March,2013; Hongkong Lighting Fair in April,2013; Sweden Lighting Fair in May,2013.

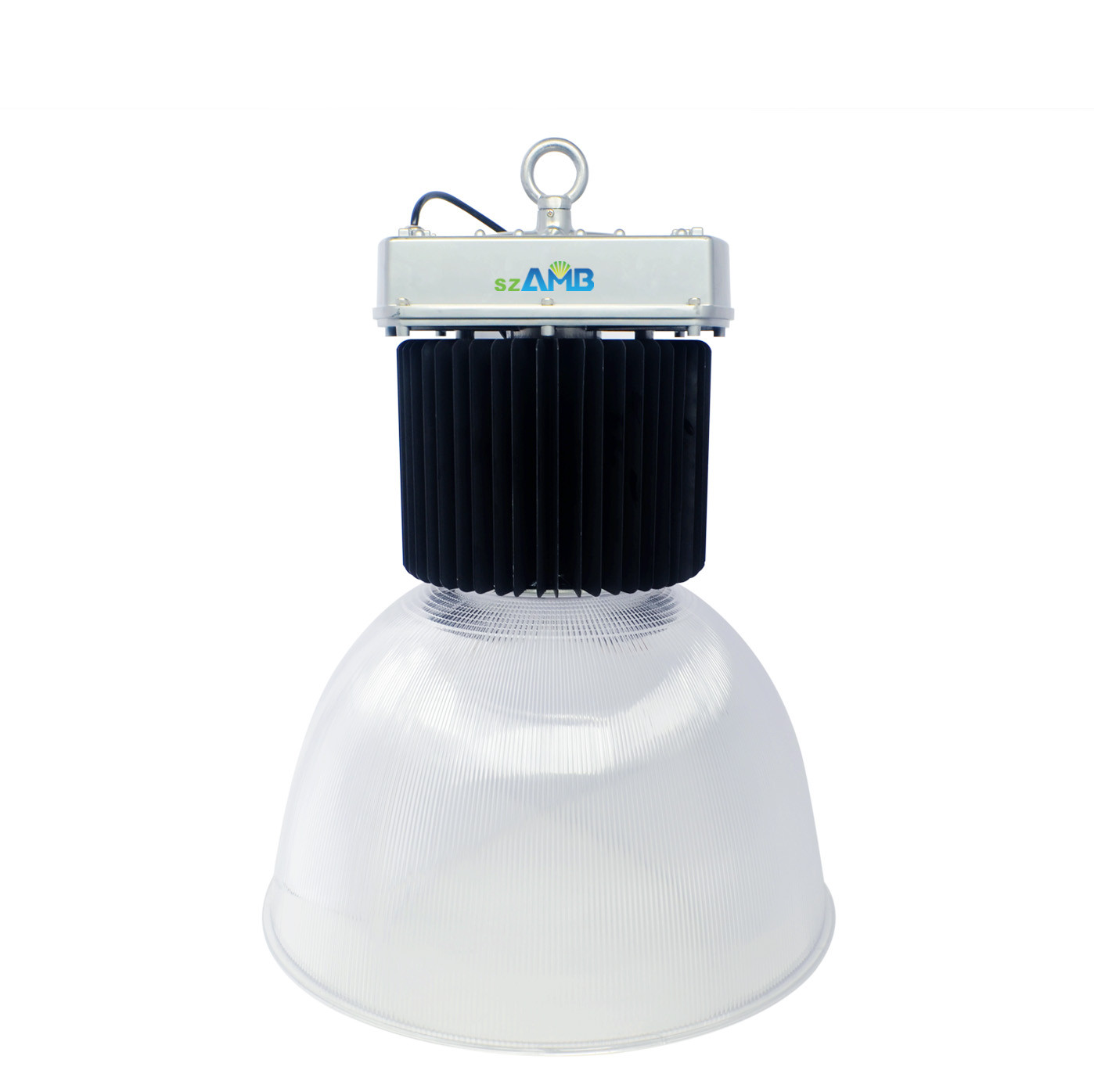

180W LED High Bay Specifications:
| Model No. | AMB-3L-180w |
| Equivalent | 500W High Pressure Sodium Lamp |
| LED Light Source | 3 × 54W Bridgelux 60mil LED |
| LED Luminous Efficiency | 160 lm/w |
| Lamp Total Power | 180W |
| Power Efficiency | > 95% |
| Lamp Rated Luminous Flux | > 21,600~23,4000lm |
| Lamp Rated Luminous Efficiency | > 120lm/W |
| Color Rendering Index(CRI) | Ra> 75 |
| Color Temperature(Color Temperature) | Cool white: 6000-6500K |
| Pure white: 5000-5500K | |
| Warm white: 2700-3200K | |
| Beam Angle | 60 degrees or 120 degrees or 150 degrees |
| Light Distribution/Beam Pattern | Round Beam |
| Input Voltage | AC 95-265V; DC 30-36V |
| FrequencyRange | 50/60HZ |
| Power Factor(PF) | > 0.95 |
| Total Harmonic Distortion(THD) | < 15% |
| Storage Temperature | -40--+80 |
| Working Environment | -40--+50; 10%-95%RH |
| Junction Temperature(Tj) | 60 ± 10%(ta=25) |

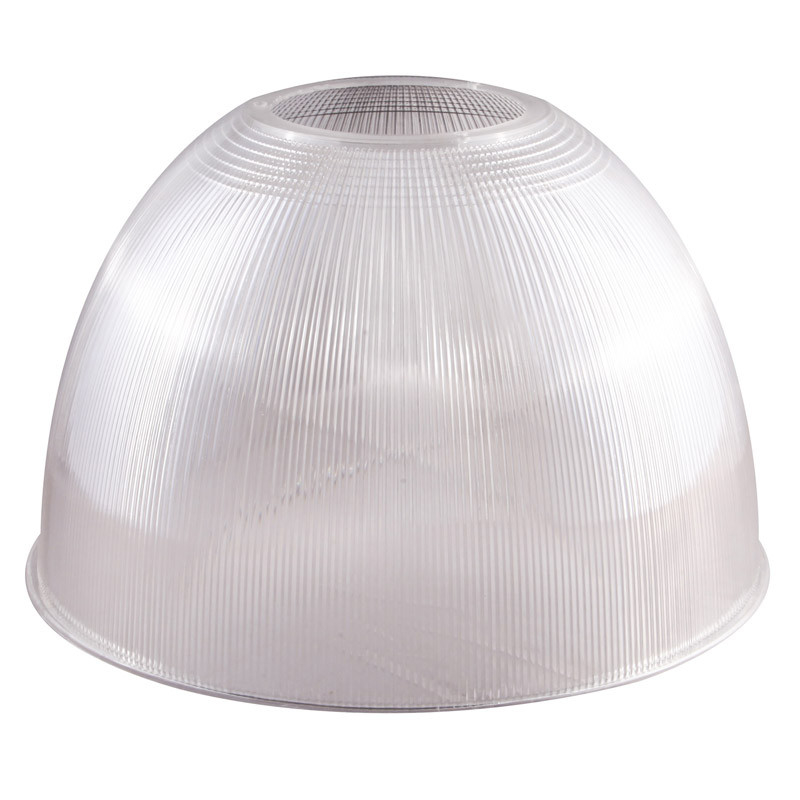

| Light Body and Lampshade Material | Aluminum Alloy and PC lens |
| Working Lifetime | > 50, 000hrs |
| IP Rating |
IP65 |
Features:
● Light source: Bridgelux High Power LED
● Low power consumption
● High luminosity and long life time
● Environmentally friendly
● Excellent opto-electronic performance
● Optimized heat fins for natural convection
● High-efficiency cooling system
● High-efficiency LED power driver
● High light transmission PC protection cover
Application:
● Warehouse Lighting
● Garage Lighting
● Workshop Lighting
● Public Lighting
● Parking Lot Lighting
● Walkway Lighting
● Other open spaces lighting
