| Place of Origin: | Shenzhen |
|---|---|
| Brand Name: | AMB |
| Certification: | TUL.ETL.DLC.LM79.SAA.PSE.CE.ROHS |
| Model Number: | AMB-3L-200w |
| Minimum Order Quantity: | 2pcs |
| Price: | Negotiable |
| Packaging Details: | 2pc/box |
| Delivery Time: | 7~15days after receiving the payment |
| Payment Terms: | L/C, TT, D/P, Paypal, Western Union |
| Supply Ability: | 10,000pcs/month |
| Flux: | 23000-24000lumen | Lighting Efficiency: | 115-120lumen/w |
|---|---|---|---|
| IP Rate: | IP65 | Color Temperature: | 3000K-6500K |
| Color Rendering Index: | RA75-RA90 | Adjustable Angle: | 60degree,120degree,150degree |
| High Light: | low energy high bay lighting,led high bay lamps |
||

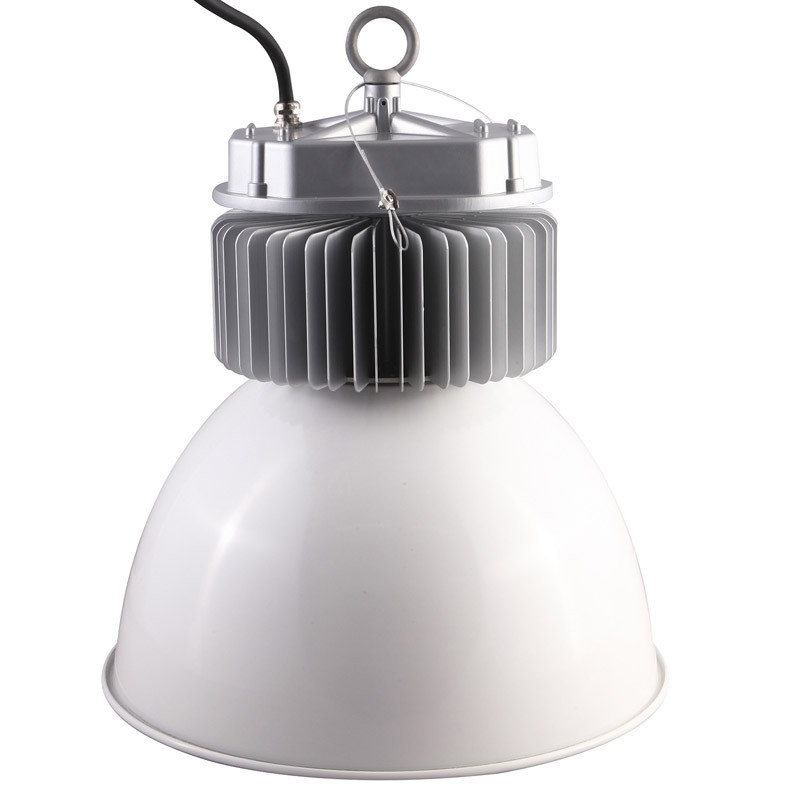

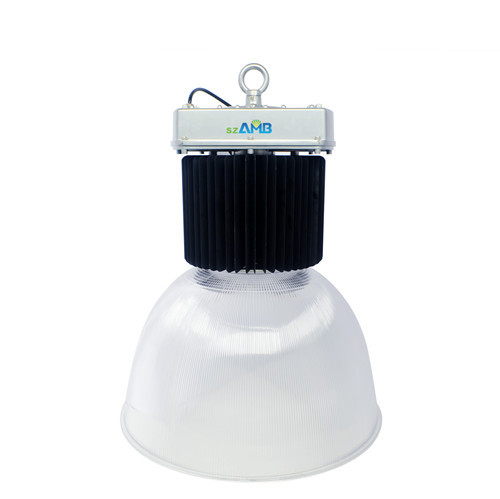

IP65 High Brightness High Bay Light for Industrial Application
| Model No. | AMB-3L-200w |
| Equivalent | 400W High Pressure Sodium Lamp |
| LED Light Source | 3 × 80W Epistar 60ml LED |
| LED Luminous Efficiency | 120 lm/w |
| Lamp Total Power | 200W |
| Power Efficiency | > 90% |
| Lamp Rated Luminous Flux | > 24,000lm |
| Color Rendering Index(CRI) | Ra>85 |
| Color Temperature(Color Temperature) | Cool white: 5000-6500K |
| Pure white: 4000-5000K | |
| Warm white:2700-3500K | |
| Beam Angle | 60 degrees or 120 degrees |
| Light Distribution/Beam Pattern | Round Beam |
| Input Voltage | AC 85-265V ; DC 30-36V |
| FrequencyRange | 50/60HZ |
| Power Factor(PF) | > 0.95 |
| Total Harmonic Distortion(THD) | < 15% |
| Storage Temperature | -40--+80 |
| Working Environment | -40--+50 ; 10%-95%RH |
| Junction Temperature(Tj) | 60 ± 10%(ta=25) |
| Light Body and Lampshade Material | Aluminum Alloy and Toughened glass |
| Working Lifetime | >50,000hrs |
| IP Rating | IP66 |
Advangtages:
1.Bridgelux BXCD45 LED, 130-140lm/w
2.Meanwell driver HLG driver, PF>0.95
3.5years warranty, >50,000Hrs life span
4.Patent cooling system with Japan heat sink gel.
5.IP65 rated
6.CE, ETL, DLC, TUV, RoHS certificated.(UL Pending)
Different housing cover of the product as follow:

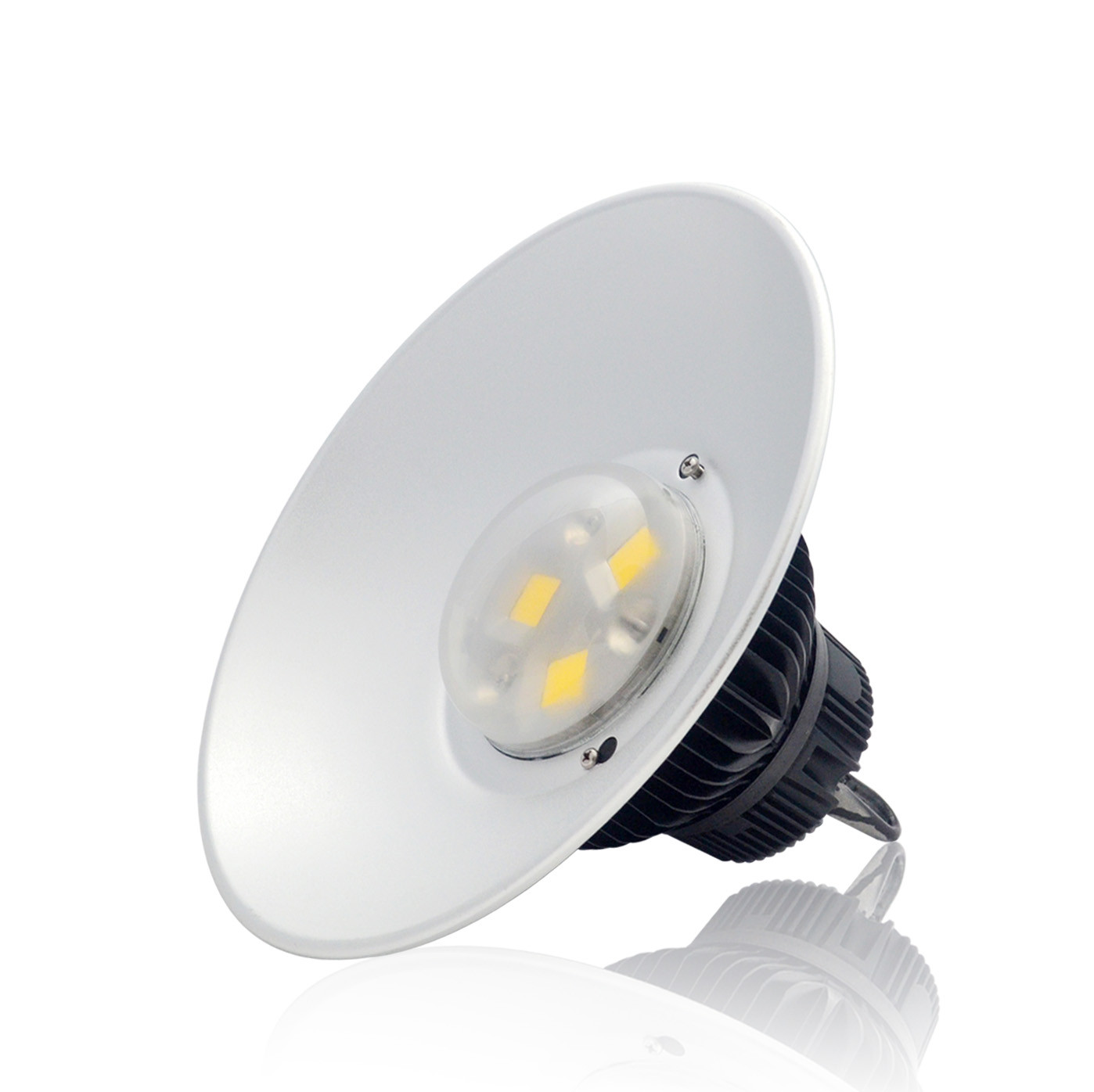

65 degree PC cover:

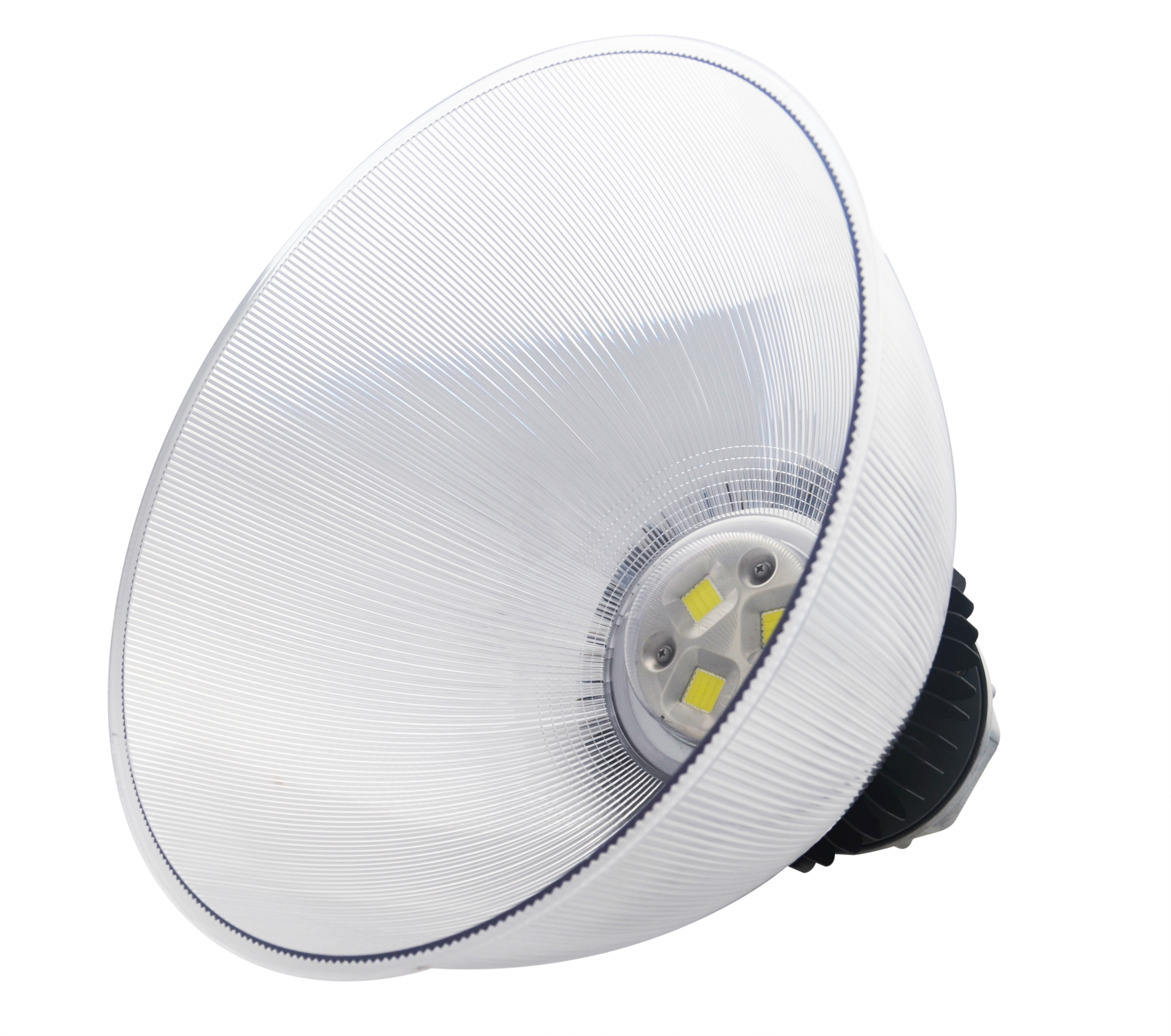

150 degree cover of the product:
